Manufacturer: Complete Security Gates

BENINCA 24v Electro mechanical worm screw ram pair kit KBOB3024E

BENINCA 24v Electro mechanical worm screw ram pair kit KBOB3024E

SKU:

Regular price £821.10
Regular price Sale price £821.10
Sale Sold out
Tax included.

Irreversible 24 Vdc electromechanical geared motor for intensive use, equipped with encoder | The encoder device ensures maximum safety and precision in the gate moving phases | Amperometric sensor obstacle detection system to prevent crushing | Optional battery-powered operation | Reliable, quiet, and quick to install geared motor, thanks to its 2 adjustable mechanical stops for opening and closing | Rolled ball screws Ø 20 mm | Easy access release from above

Features

  • Excellent budget operator – When the entrance you’re automating is going to be medium to low usage and budget is a primary driver in your decision making this is our ‘go to’ kit
  • Low voltage and with native encoders for safety
  • Stylish design and a choice of colors mean this operator can be an aesthetically pleasing addition to your entrance.
  • Low voltage and native encoders make this the Bob’s a safe operator
  • Despite the lower pricing point and standard 2 Year warranty we think it offers excellent reliability and value

Specification

Power supply 230 Vac (50-60Hz)
Motor supply 24 Vdc
Max absorbed current 5.5 A
Maximum thrust 1800 N
Opening time 9" ÷ 21"
Standard stroke 270 mm
Max stroke 325 mm
Duty cycle intensive use
Protection level IP44
Built-in control unit
Encoder
Operating temperature -20°C /+50°C
Lubrication GREASE
Leaf max dimension 3.0 m
Weight 8.0 kg
N. motors per pallet 50
Kit weight 20.7 kg
N. kits per pallet 18

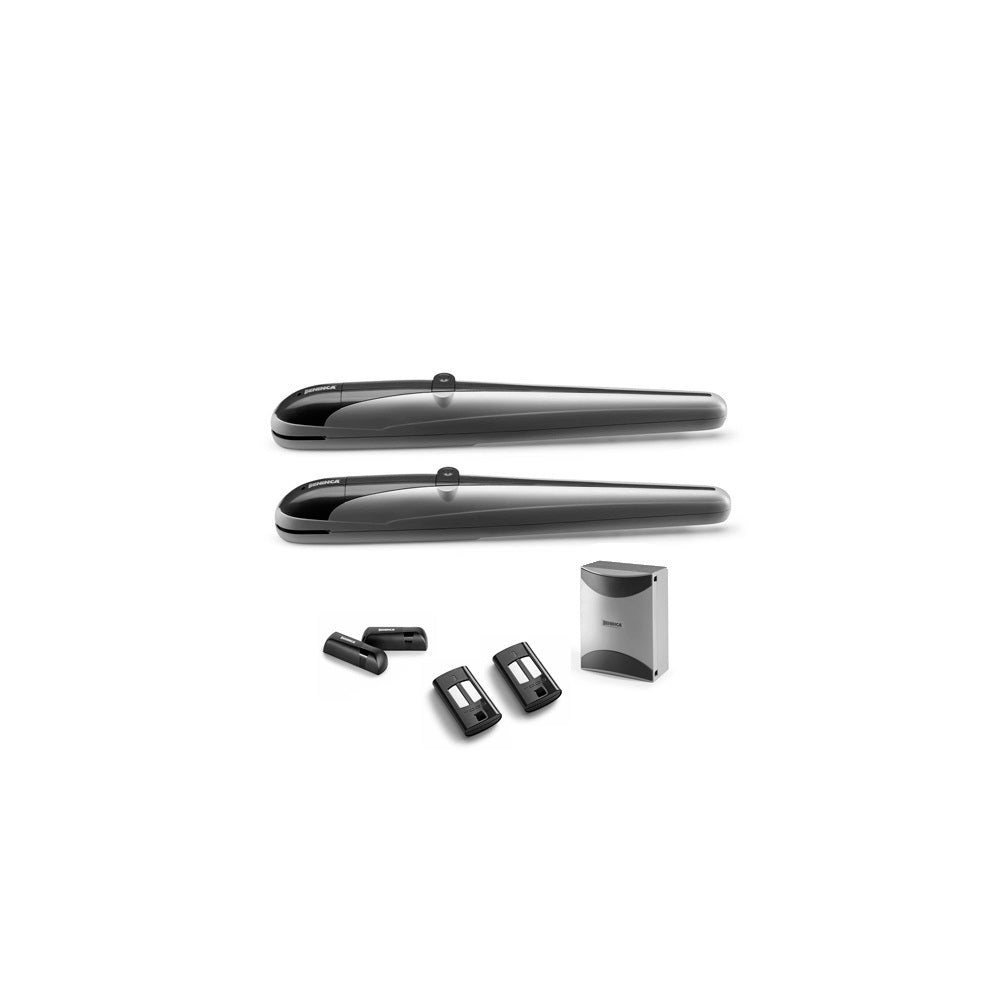

What's in the box

  • 2x BOB post-mounted rams
  • 1x BRAINY control panel
  • 1x PUPILLA photocells
  • 1x AW 433.92Mhz long-range aerial
  • 2x TO.GO2VA 2 button transmitters
