Manufacturer: Complete Security Gates

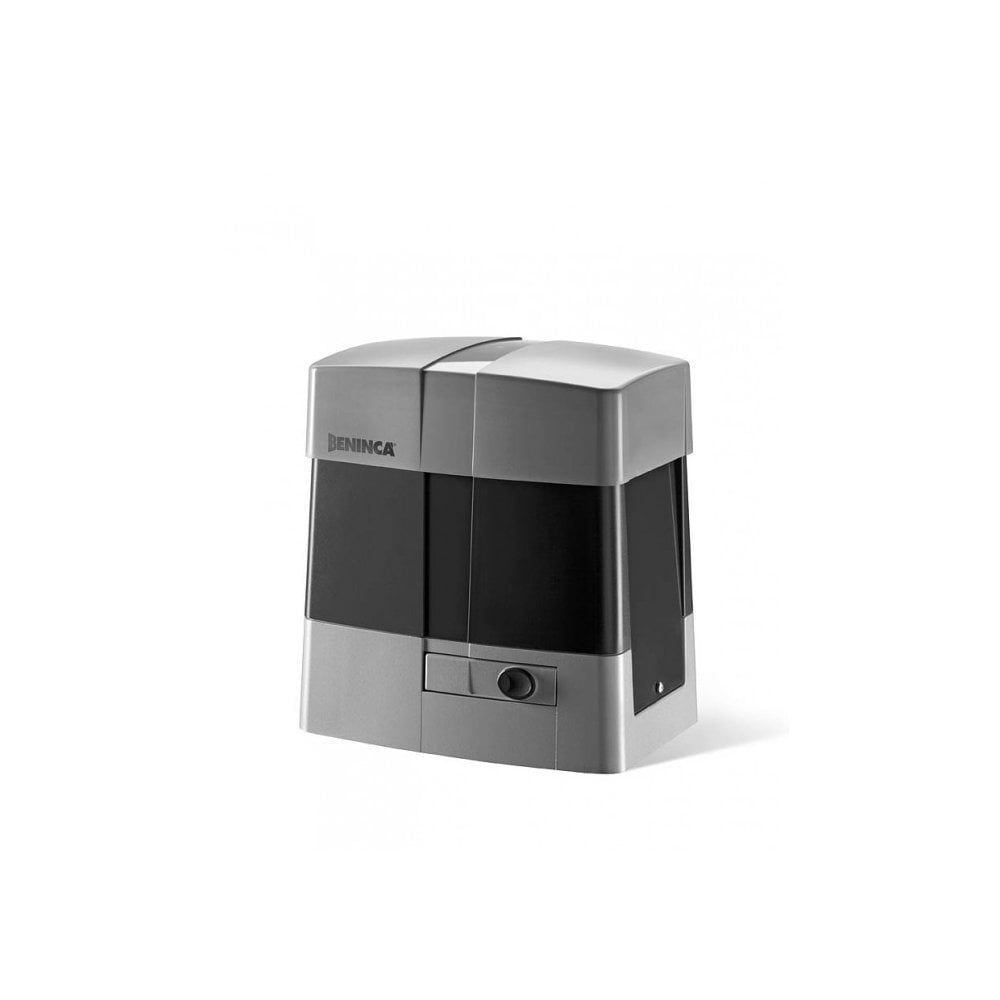

BENINCA BULL1524 Sliding gate operator up to 1500kg (24v)

BENINCA BULL1524 Sliding gate operator up to 1500kg (24v)

SKU:

Regular price £728.64
Regular price Sale price £728.64
Sale Sold out
Tax included.

Comes with CP.B1524 control unit with incorporated receiver and virtual encoder personalised release key built-in battery charger

  • 24 VDC geared motor with integrated control unit equipped with switching power supply (85÷265 VAC) which reduces energy consumption and ensures a long lifespan of the actuator
  • Very intensive use, ideal for condominium applications
  • Anti-crushing system with amperometric obstacle detection
  • The control unit makes it possible to calculate the position of the motor starting from the measurement of instantaneous speed (virtual encoder)
  • The virtual encoder allows proper management of the slowing-down phases, movement tracking (STC system), and torque management in relation to the position of the gate, which guarantees maximum safety
  • Fast and easy to install, with the self-programming function through the radio transmitter, activation is possible immediately after installation
  • Option to operate opposed sliding gates using the SIS accessory and in case of power failure with the built-in battery charger accessory
  • Metal release lever
  • Version available with magnetic limit switches - contact us (BULL1524.S)

OPERATOR TECHNICAL SPECIFICATIONS

Technical Data BULL1524 BULL1524.S
Power supply 85 ÷ 265 Vac (50-60Hz) 85 ÷ 265 Vac (50-60Hz)
Motor supply 24 Vdc 24 Vdc
Max absorbed current 1.7 A 1.7 A
Max Thrust 944 N 944 N
Opening speed 11.7 m/min 11.7 m/min
Duty cycle Intensive use Intensive use
Protection level IP44 IP44
Magnetic limit switches NO YES
Operating temperature -20°C / +50°C -20°C / +50°C
Max gate weight 1500 kg 1500 kg
Driving gear for rack M4 Z18 M4 Z18
Weight 15.9 kg 16 kg
Items no. per pallet 20 20
