Manufacturer: Beninca

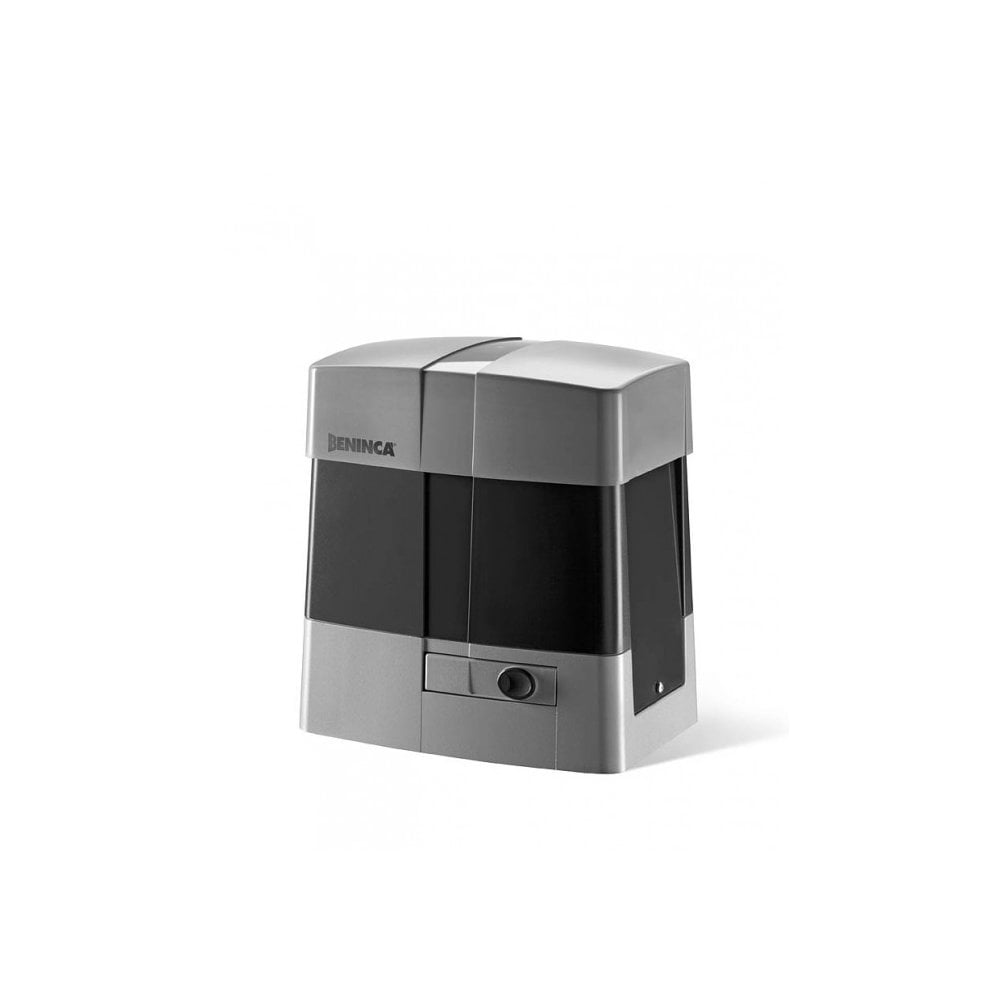

BENINCA BULL15M Sliding gate operator up to 1500kg (230v)
BENINCA BULL15M Sliding gate operator up to 1500kg (230v)
SKU:BULL15M
Regular price
£615.00
Regular price
Sale price
£615.00
Unit price
/
per
Tax included.
Couldn't load pickup availability
BENINCA BULL15M Sliding gate operator up to 1500kg (230v)
Comes with CP.BULL-RI control unit with built-in encoder and receiver personalised release key
- 230 Vac geared motor with built-in control unit and encoder
- The encoder device ensures crush prevention and precision in the gate moving phases
- Metal release lever
- Version equipped with magnetic limit switches available - contact us (BULL15M.S)
OPERATOR TECHNICAL SPECIFICATIONS
| Technical Data | BULL15M* | BULL15M.S* |
|---|---|---|
| Power supply | 230 Vac (50-60Hz) | 230 Vac (50-60Hz) |
| Motor supply | 230 Vac | 230 Vac |
| Max absorbed current | 2.5 A | 2.5 A |
| Max Thrust | 1250 N | 1250 N |
| Opening speed | 10.5 m/min | 10.5 m/min |
| Duty cycle | 60% | 60% |
| Protection level | IP44 | IP44 |
| Magnetic limit switches | NO | YES |
| Operating temperature | -20°C / +50°C | -20°C / +50°C |
| Max gate weight | 1500 kg | 1500 kg |
| Driving gear for rack | M4 Z18 | M4 Z18 |
| Weight | 19.6 kg | 20.1 kg |
| Items no. per pallet | 20 | 20 |
