Manufacturer: Beninca
BENINCA BULL20HE Sliding gate operator up to 2000kg - OIL (230v)
BENINCA BULL20HE Sliding gate operator up to 2000kg - OIL (230v)
SKU:BULL20HE
Regular price
£796.32
Regular price
Sale price
£796.32
Unit price
/
per
Tax included.
Couldn't load pickup availability

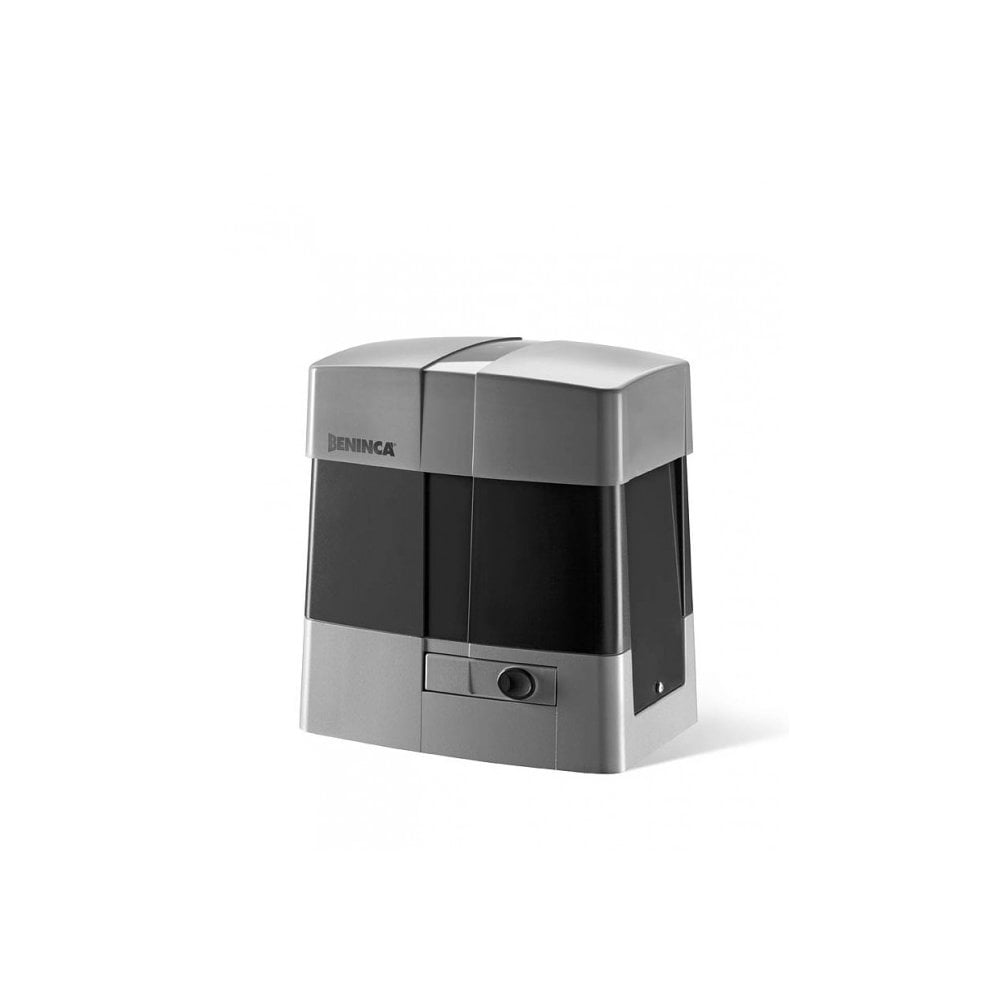

BENINCA BULL20HE Sliding gate operator up to 2000kg - OIL (230v)
Comes with CP.BULL20-HE control unit with built-in encoder and receiver oil lubricated reductions personalised release key self-ventilated for very intense use
- Self-ventilated 230 VAC geared motor for intensive use with oil lubricated reductions
- Thanks to the characteristics of the new electric motor, this product is particularly indicated for very intense use
- The encoder guarantees maximum safety and precision while the gate is moving
- Metal release lever
OPERATOR TECHNICAL SPECIFICATIONS
| Technical Data | BULL17 OMI* |
|---|---|
| Power supply | 230 Vac (50-60Hz) |
| Motor supply | 230 Vac |
| Max absorbed current | 7 A |
| Max Thrust | 1880 N |
| Max opening speed | 24 m/min |
| Duty cycle | 80%** |
| Protection level | IP44 |
| Magnetic limit switches | NO |
| Operating temperature | -20°C / +50°C |
| Lubrication | OIL |
| Max gate weight | 1700 kg |
| Driving gear for rack | M4 Z18 |
| Weight | 21.6 kg |
| Items no. per pallet | 20 |
* Available in 115 VAC version - contact us
** In extreme operating conditions (environment T 50°C, gate weight 2000 kg) the cycle falls to 60%
