Manufacturer: Beninca

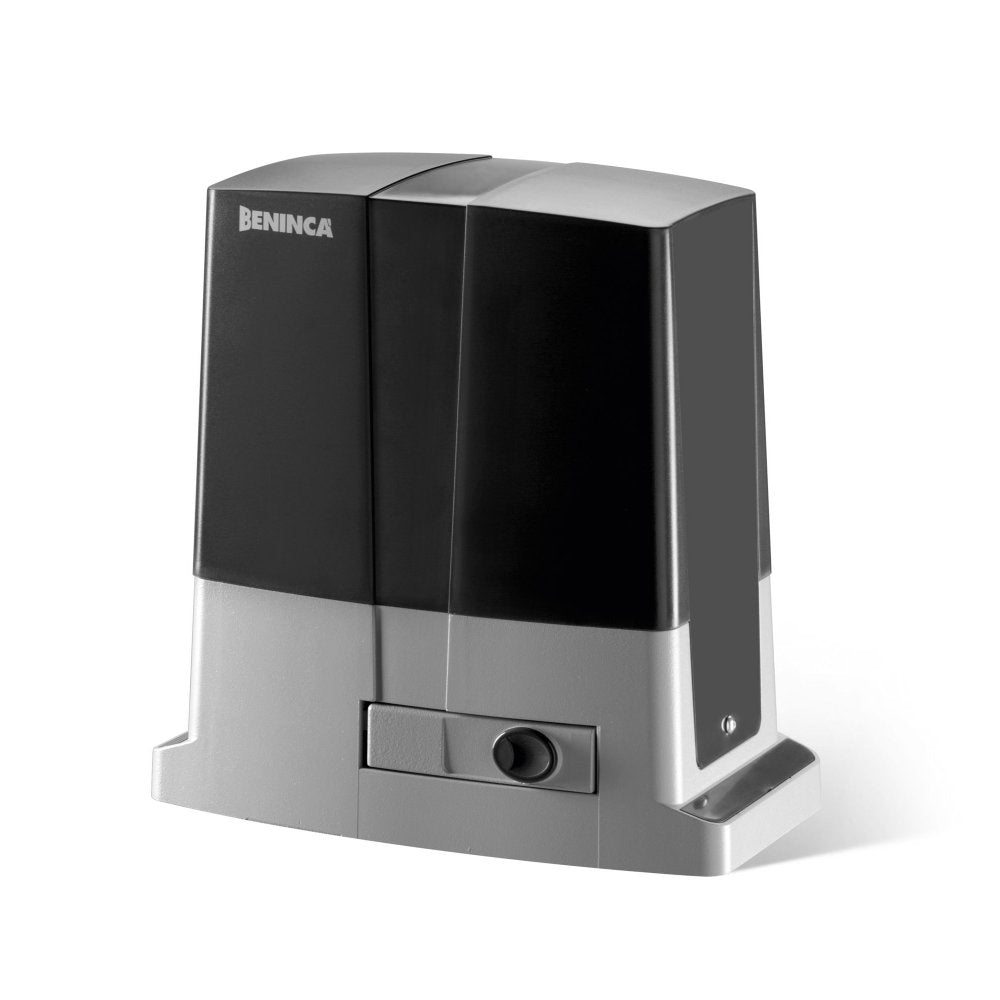

BENINCA BULL424ESA Sliding gate operator up to 450kg (24v)
BENINCA BULL424ESA Sliding gate operator up to 450kg (24v)
SKU:BULL424ESA
Regular price
£430.56
Regular price
Sale price
£430.56
Unit price
/
per
Tax included.
Couldn't load pickup availability
BENINCA BULL424ESA Sliding gate operator up to 450kg (24v)
Comes with CP.B24ESA control unit with built-in encoder and receiver personalised release key
- 24 Vdc geared motor for intensive use, with built-in control unit, ESA SYSTEM and encoder
- The encoder device ensures maximum safety and precision in the gate moving phases
- Amperometric sensor obstacle detection system to prevent crushing
- Battery back up system ready
- Metal release lever
- Magnetic limit switches accessory available (MLS)
TECHNICAL SPECIFICATIONS
| Technical Data | BULL424ESA |
|---|---|
| Power supply | 230 Vac (50-60Hz) |
| Motor supply | 24 Vdc |
| Max absorbed current | 0.4 A |
| Power consumption in stand-by | 8 mA |
| Max Thrust | 428 N |
| Opening speed | 6.7÷11 m/min |
| Duty cycle | Intensive use |
| Protection level | IP44 |
| Operating temperature | -20°C / +50°C |
| Max gate weight | 450 kg |
| Driving gear for rack | M4 Z14 |
| Weight | 10.4 kg |
| Items no. per pallet | 40 |
| Kit weight | 11.1 kg |
| Kits no. per pallet | 40 |
