Manufacturer: Complete Security Gates

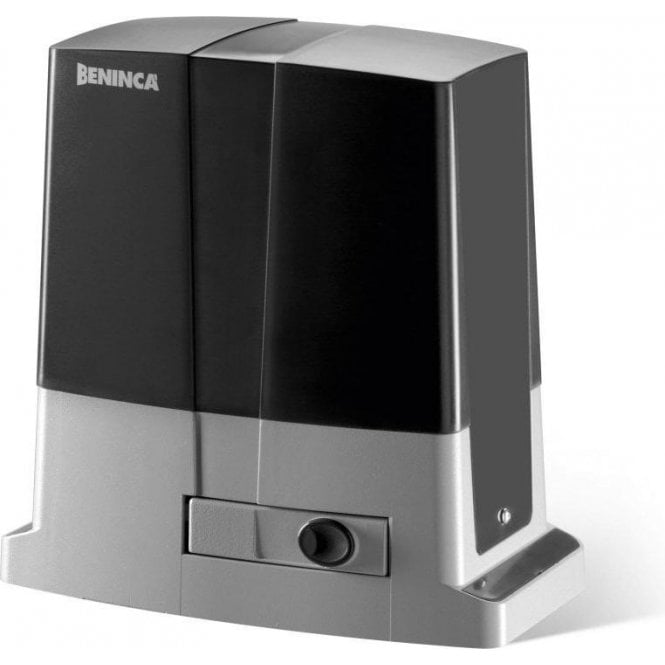

BENINCA BULL624ESA Sliding gate operator up to 600kg (24v)

BENINCA BULL624ESA Sliding gate operator up to 600kg (24v)

SKU:

Regular price £477.00
Regular price Sale price £477.00
Sale Sold out
Tax included.

Comes with CP.B24ESA control unit with built-in encoder and receiver personalised release key

  • 24 Vdc geared motor for intensive use, with built-in control unit, ESA SYSTEM and encoder
  • The encoder device ensures maximum safety and precision in the gate moving phases
  • Amperometric sensor obstacle detection system to prevent crushing
  • Battery back up system ready
  • Metal release lever
  • Version with magnetic limit switches available - contact us (BULL624ESA.S)

OPERATOR TECHNICAL SPECIFICATIONS

Technical Data BULL624ESA BULL624ESA.S
Power supply 230 Vac (50-60Hz) 230 Vac (50-60Hz)
Motor supply 24 Vdc 24 Vdc
Max absorbed current 0.5 A 0.5 A
Power consumption in stand-by 8 mA 8 mA
Max Thrust 857 N 857 N
Opening speed 5.8÷9.75 m/min 5.8÷9.75 m/min
Duty cycle Intensive use Intensive use
Protection level IP44 IP44
Magnetic limit switches NO YES
Operating temperature -20°C / +50°C -20°C / +50°C
Max gate weight 600 kg 600 kg
Driving gear for rack M4 Z14 M4 Z14
Weight 11.7 kg 11.7 kg
Items no. per pallet 40 40
Kit weight 12.4 kg ---
Kits no. per pallet 40 ---
