Manufacturer: Beninca

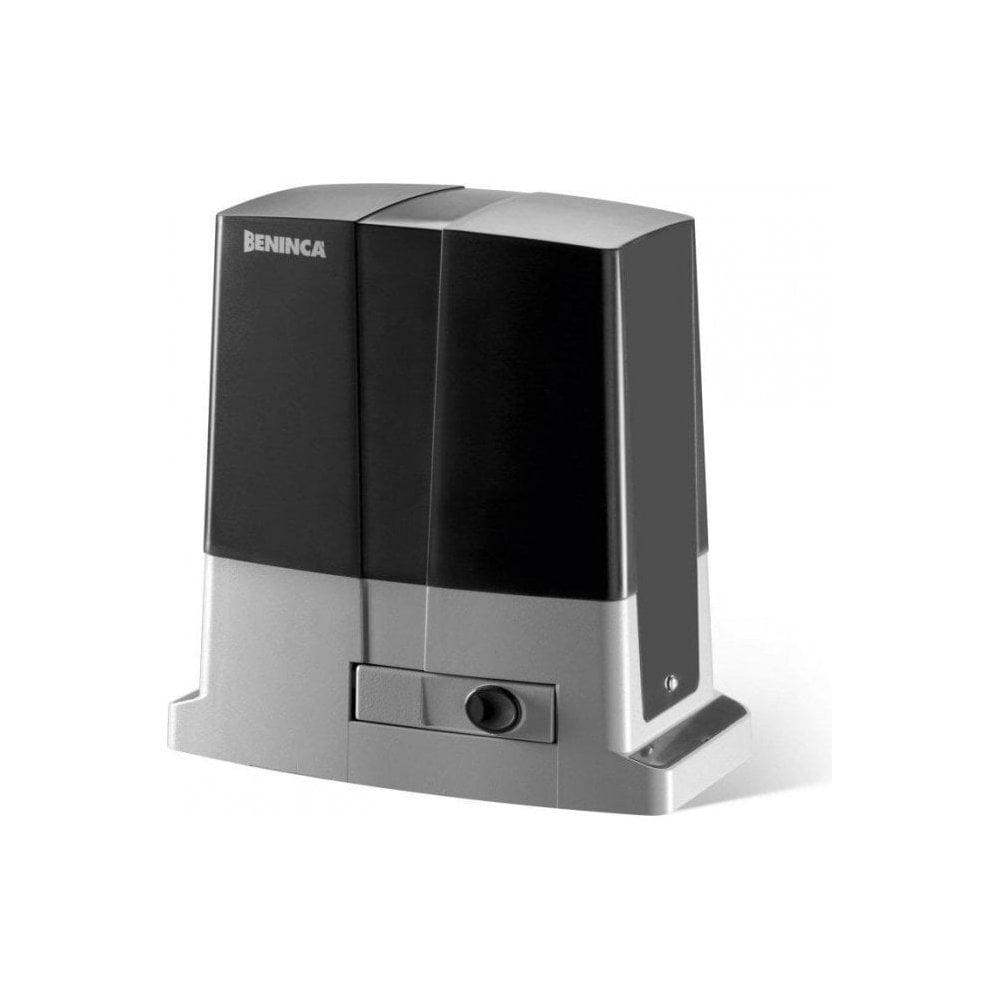

BENINCA BULL8OM 230v Sliding gate operator up to 800kg - OIL (230v)
BENINCA BULL8OM 230v Sliding gate operator up to 800kg - OIL (230v)
Regular price
£550.00
Regular price
Sale price
£550.00
Unit price
/
per
BENINCA BULL8OM 230v Sliding gate operator up to 800kg - OIL (230v)
Comes with CP.BULL8-OM control unit with built-in encoder and receiver personalised release key oil lubrication
- Electromechanical 230 Vac geared motor with built-in control unit and encoder
- The encoder device ensures crush prevention and precision in the gate moving phases
- Full metal mechanics and oil lubrication ensure maximum gear durability. The type of oil used is also particularly effective, and ensures maximum efficiency even at low temperatures
- Reduced mechanical wear on components
- Metal release lever
- Version with magnetic limit switches available - contact us (BULL8OM.S)
OPERATOR TECHNICAL SPECIFICATIONS
Technical Data | BULL8 OM* | BULL8 OM.S* |
---|---|---|
Power supply | 230 Vac (50-60Hz) | 230 Vac (50-60Hz) |
Motor supply | 230 Vac | 230 Vac |
Max absorbed current | 2.6 A | 2.6 A |
Max Thrust | 940 N | 940 N |
Opening speed | 10.5 m/min | 10.5 m/min |
Duty cycle | 40% | 40% |
Protection level | IP44 | IP44 |
Magnetic limit switches | NO | YES |
Operating temperature | -20°C / +50°C | -20°C / +50°C |
Lubrication | OIL | OIL |
Max gate weight | 800 kg | 800 kg |
Driving gear for rack | M4 Z18 | M4 Z18 |
Weight | 14.6 kg | 14.7 kg |
Items no. per pallet | 40 | 40 |
Kit weight | 15.4 kg | --- |
Kits no. per pallet | 40 | --- |
