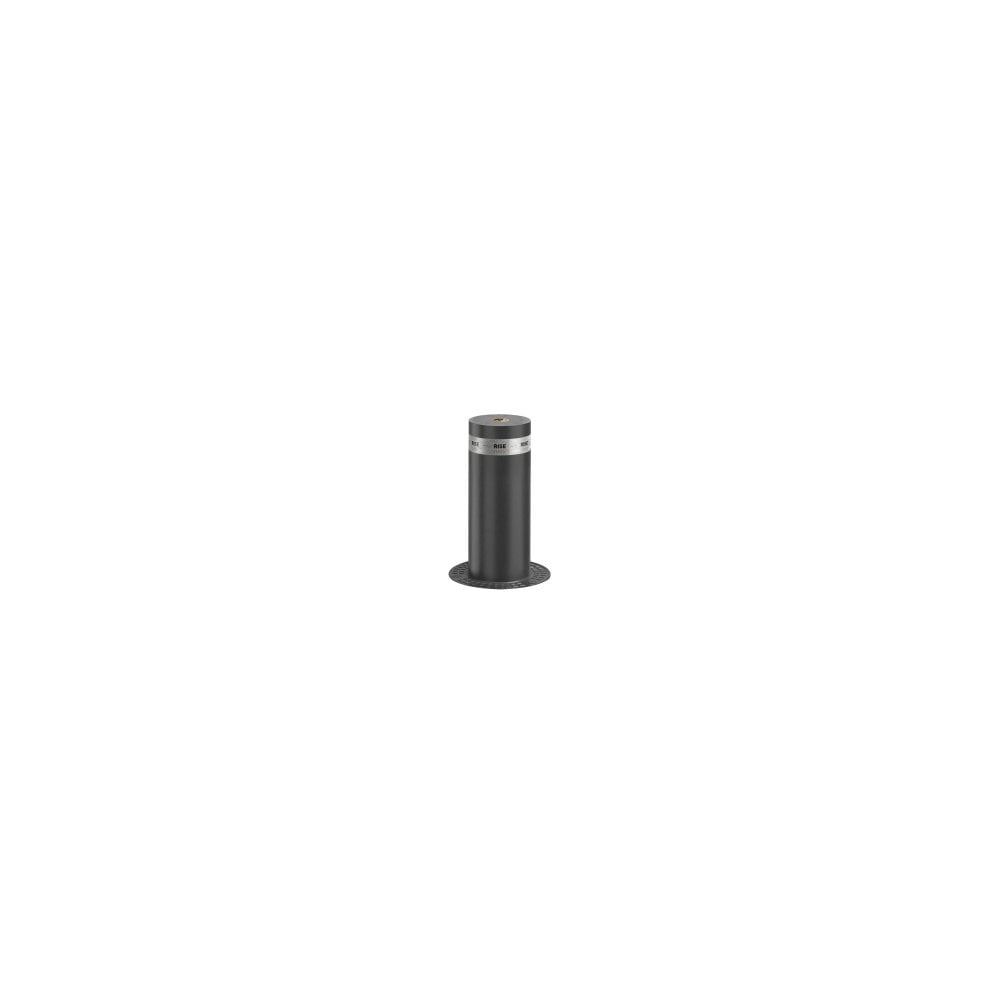

BENINCA HYDRA500 BASIC 230 Vac hydraulic bollard

BENINCA HYDRA500 BASIC 230 Vac hydraulic bollard

SKU:

Regular price £2,365.36
Regular price Sale price £2,365.36
Sale Sold out
Tax included.

The BENINCA HYDRA500 BASIC 230 Vac hydraulic bollard is a reliable and robust security solution designed to control vehicle access in various environments. This bollard operates on a 230 Vac power supply, ensuring consistent performance and efficiency. With its hydraulic mechanism, it offers smooth and quiet operation, making it suitable for areas where noise reduction is essential.

The HYDRA500 BASIC bollard is constructed using high-quality materials, ensuring durability and resistance to harsh weather conditions. Its sleek and modern design seamlessly integrates into any architectural setting, providing an aesthetically pleasing solution without compromising on security.

This hydraulic bollard is equipped with advanced safety features, including an emergency release system that allows for quick and easy manual operation in case of power failure or emergency situations. It also features an integrated LED light system, enhancing visibility and providing clear indications of the bollard's status.

The BENINCA HYDRA500 BASIC 230 Vac hydraulic bollard offers a range of customization options to meet specific requirements. It can be integrated with various access control systems, such as keypads, card readers, or biometric devices, allowing for seamless integration into existing security systems.

Whether it's protecting sensitive areas, controlling traffic flow, or enhancing perimeter security, the BENINCA HYDRA500 BASIC 230 Vac hydraulic bollard is a reliable and efficient solution that provides peace of mind and ensures the safety of your premises.

Additional Information

• Fast and easy to install thanks to the foundation box that can be assembled on site without welding

• Hydraulic control unit integrated

• Emergency operation by unlocking key available in three different shapes

• PLUG & PLAY connection between bollard and control panel

• The embedded un-lock device is equipped with waterproof stainless steel plug

• On request it is possible to have the standard tringular insert to allow manual release of the bollard to emergency vehicles (cod. HY.REL)

• The un-lock system is available in 3 different shapes (A/B/C)

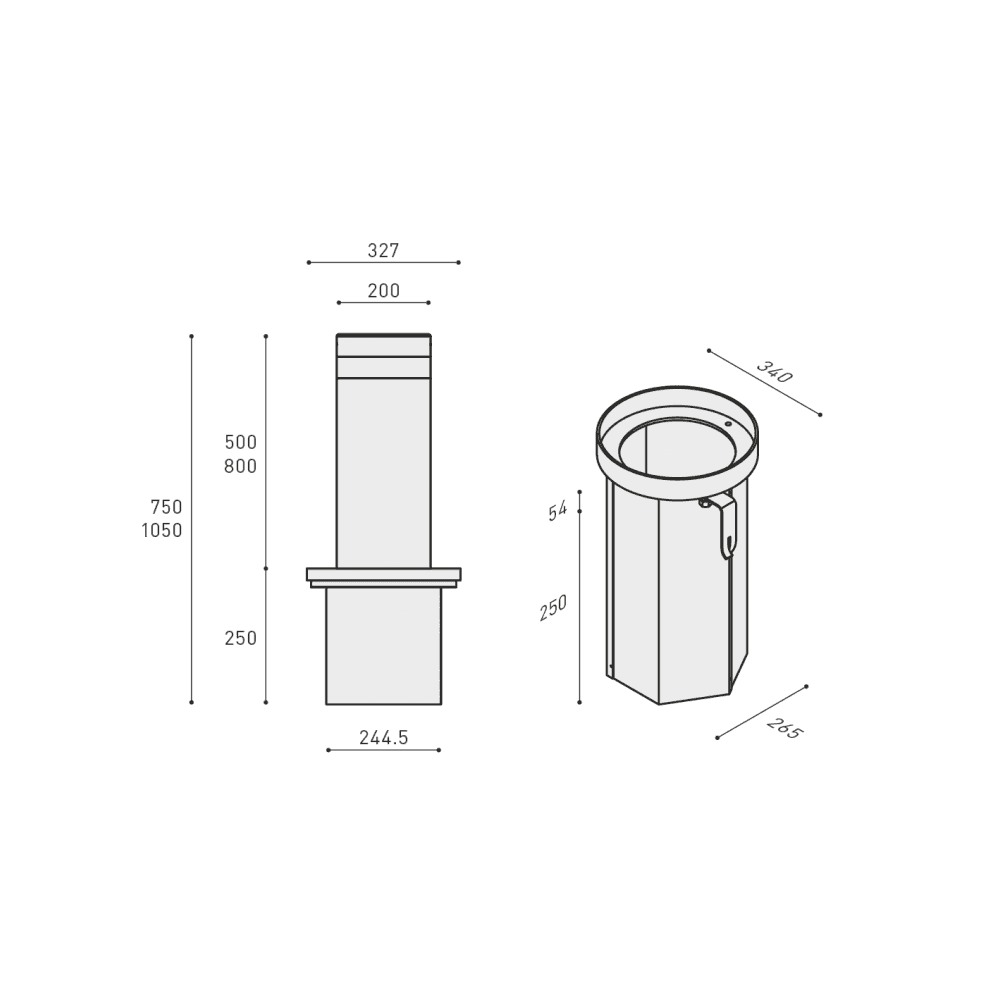

Cylinder height 500 mm
Cylinder diameter 200 mm
Raising time 5 s
Lowering time 5 s
Power Supply 230 Vac / 50/60 Hz
Absorbed current 8 A max
Standby consumption 10 W
Pump delivery 4.5 l/min
Max oil pressure 17 bar
Overload cut-out 150 °C
Capacitor 31.5 μF
Daily cycles 1,000
Impact resistance 11.000 J
Breakout resistance 180.000 J
Operating temperature -15°C / +70°C
Protection level IP68
Weight (without foundation box) 79/81 kg
