Manufacturer: Beninca

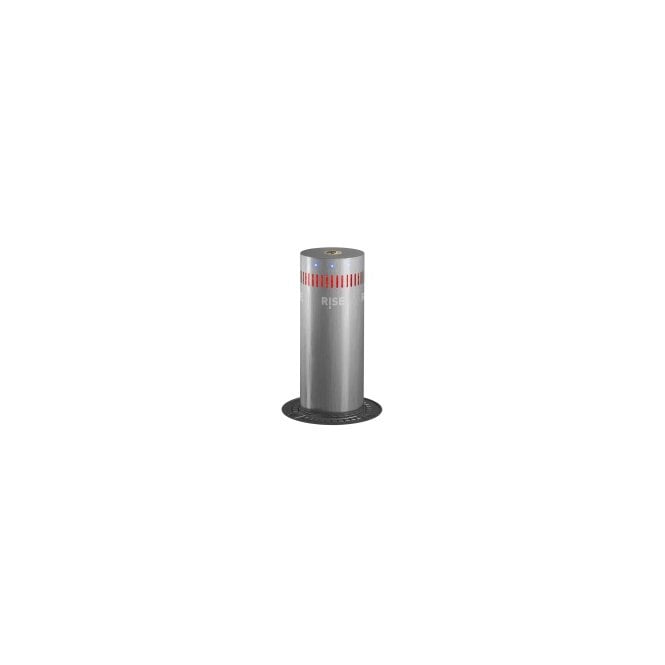

BENINCA HYDRA500I LED 230v HYDRA 500mm auto bollard LED - stainless steel finish
BENINCA HYDRA500I LED 230v HYDRA 500mm auto bollard LED - stainless steel finish
SKU:HYDRA500I
Regular price
£3,245.16
Regular price
Sale price
£3,245.16
Unit price
/
per
Tax included.
Couldn't load pickup availability
• Fast and easy to install thanks to the foundation box that can be assembled on site without welding
• Hydraulic control unit integrated
• Emergency operation by unlocking key available in three different shapes
• PLUG & PLAY connection between bollard and control panel
• The embedded un-lock device is equipped with waterproof stainless steel plug
• On request it is possible to have the standard tringular insert to allow manual release of the bollard to emergency vehicles (cod. HY.REL)
• The un-lock system is available in 3 different shapes (A/B/C)
Cylinder height | 500 mm |
Cylinder diameter | 200 mm |
Raising time | 5 s |
Lowering time | 5 s |
Power Supply | 230 Vac / 50/60 Hz |
Absorbed current | 8 A max |
Standby consumption | 10 W |
Pump delivery | 4.5 l/min |
Max oil pressure | 17 bar |
Overload cut-out | 150 °C |
Capacitor | 31.5 μF |
Daily cycles | 1,000 |
Impact resistance | 11.000 J |
Breakout resistance | 180.000 J |
Operating temperature | -15°C / +70°C |
Protection level | IP68 |
Weight (without foundation box) |
79/81 kg |
