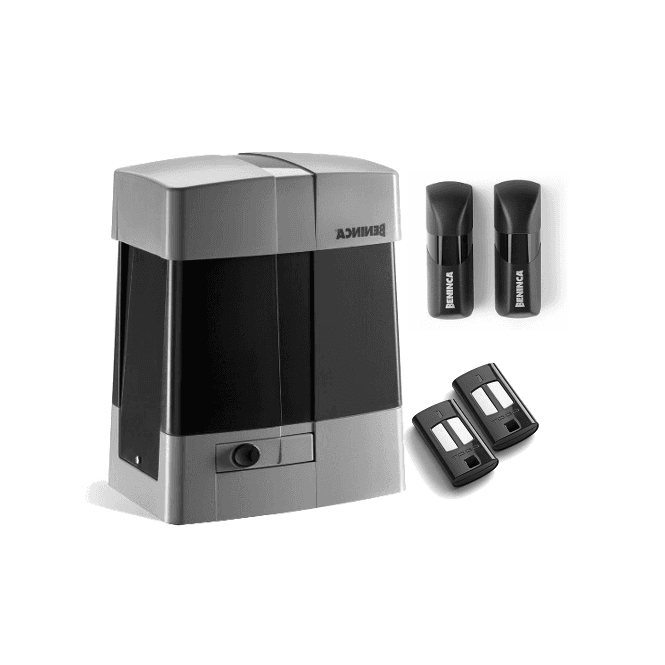

BENINCA KBULL1224T Sliding gate kit up to 1200kg - TURBO (24v)

BENINCA KBULL1224T Sliding gate kit up to 1200kg - TURBO (24v)

SKU:

Regular price £927.60
Regular price Sale price £927.60
Sale Sold out
Tax included.

BENINCA KBULL1224T Sliding gate kit up to 1200kg - TURBO (24v)

Comes with CP.B24 TURBO control unit with incorporated receiver and virtual encoder oil lubricated reductions personalised release key built-in battery charger

  • Fast 24 VDC geared motor for intensive use with oil lubricated reductions, control unit equipped with switching power supply (115/230 VAC) that permits reduced power use and long lifespan of the actuator
  • The main control unit, on the top part of the motor, makes it possible to facilitate the wiring procedure and also to calculate the position of the motor starting from the measurement of instantaneous speed (virtual encoder)
  • The virtual encoder allows proper management of the slowing-down phases, movement tracking (STC system), and torque management in relation to the position of the gate, which guarantees maximum safety
  • Self-programming with transmitter can be activated at the first installation. Practical cableguides
  • Maximum performance and speed (24 m/min with 1200 kg)
  • Anti-crushing system with amperometric obstacle detection
  • Safety sensor that stops the motor power supply during release operations
  • Designed for connection to the X.BE module to integrate the device into KNX home automation systems
  • Convenient compartment for 2 mod. DA.BT6 7 Ah batteries
  • Metal release lever
  • Option to operate opposed sliding gates using the SIS accessory
  • Version available with magnetic limit switches - contact us (BULL1224 TURBO.S)

OPERATOR TECHNICAL SPECIFICATIONS

Technical Data BULL1224 TURBO BULL1224 TURBO.S
Power supply 115 Vac / 230 Vac (50-60Hz) 115 Vac / 230 Vac (50-60Hz)
Motor supply 24 Vdc 24 Vdc
Max absorbed current 3 A 3 A
Power consumption in stand-by 8 mA 8 mA
Max Thrust 390 N 390 N
Opening speed 12.5÷24 m/min 12.5÷24 m/min
Duty cycle 80% 80%
Protection level IP44 IP44
Magnetic limit switches NO YES
Operating temperature -20°C / +50°C -20°C / +50°C
Max gate weight 1200 kg 1200 kg
Driving gear for rack M4 Z18 M4 Z18
Weight 17.3 kg 17.4 kg
Items no. per pallet 20 20

KIT INCLUDES

Kit Component Quantity
BULL1224.T 1x
PUPILLA.R 1x
LAMPI.LED 1x
TOKEY 1x
TO.GO2VA 1x
