Manufacturer: Beninca

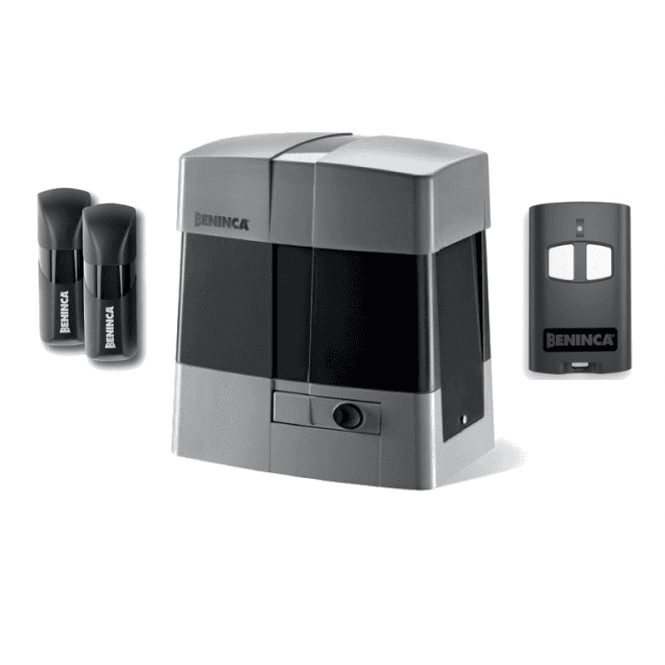

BENINCA KBULL1524 Sliding gate kit up to 1500kg (24v)
BENINCA KBULL1524 Sliding gate kit up to 1500kg (24v)
Regular price
£849.60
Regular price
Sale price
£849.60
Unit price
/
per
BENINCA KBULL1524 Sliding gate kit up to 1500kg (24v)
Comes with CP.B1524 control unit with incorporated receiver and virtual encoder personalised release key built-in battery charger
- 24 VDC geared motor with integrated control unit equipped with switching power supply (85÷265 VAC) which reduces energy consumption and ensures a long lifespan of the actuator
- Very intensive use, ideal for condominium applications
- Anti-crushing system with amperometric obstacle detection
- The control unit makes it possible to calculate the position of the motor starting from the measurement of instantaneous speed (virtual encoder)
- The virtual encoder allows proper management of the slowing-down phases, movement tracking (STC system), and torque management in relation to the position of the gate, which guarantees maximum safety
- Fast and easy to install, with the self-programming function through the radio transmitter, activation is possible immediately after installation
- Option to operate opposed sliding gates using the SIS accessory and in case of power failure with the built-in battery charger accessory
- Metal release lever
- Version available with magnetic limit switches - contact us (BULL1524.S)
OPERATOR TECHNICAL SPECIFICATIONS
Technical Data | BULL1524 | BULL1524.S |
---|---|---|
Power supply | 85 ÷ 265 Vac (50-60Hz) | 85 ÷ 265 Vac (50-60Hz) |
Motor supply | 24 Vdc | 24 Vdc |
Max absorbed current | 1.7 A | 1.7 A |
Max Thrust | 944 N | 944 N |
Opening speed | 11.7 m/min | 11.7 m/min |
Duty cycle | Intensive use | Intensive use |
Protection level | IP44 | IP44 |
Magnetic limit switches | NO | YES |
Operating temperature | -20°C / +50°C | -20°C / +50°C |
Max gate weight | 1500 kg | 1500 kg |
Driving gear for rack | M4 Z18 | M4 Z18 |
Weight | 15.9 kg | 16 kg |
Items no. per pallet | 20 | 20 |
KIT INCLUDES
Kit Component | Quantity |
---|---|
BULL1524 | 1x |
PUPILLA.R | 1x |
LAMPI.LED | 1x |
TOKEY | 1x |
TO.GO2VA | 1x |
