Manufacturer: Beninca

BENINCA KBULL424ESA Sliding gate kit up to 450kg (24v)

BENINCA KBULL424ESA Sliding gate kit up to 450kg (24v)

KBULL424ESA

£524.16
£524.16
Sale Sold out
Tax included.

Comes with CP.B24ESA control unit with built-in encoder and receiver personalised release key

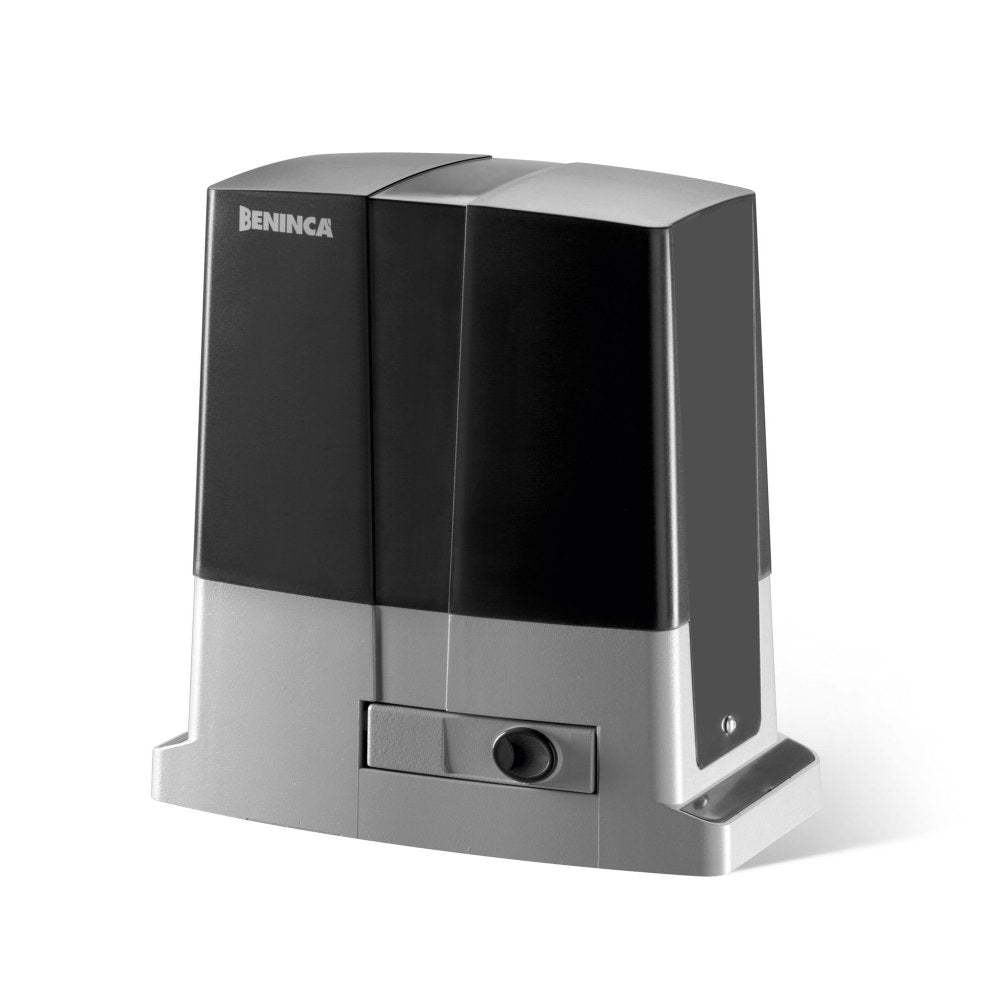

  • 24 Vdc geared motor for intensive use, with built-in control unit, ESA SYSTEM and encoder
  • The encoder device ensures maximum safety and precision in the gate moving phases
  • Amperometric sensor obstacle detection system to prevent crushing
  • Battery back up system ready
  • Metal release lever
  • Magnetic limit switches accessory available (MLS)

OPERATOR TECHNICAL SPECIFICATIONS

Technical Data BULL424ESA
Power supply 230 Vac (50-60Hz)
Motor supply 24 Vdc
Max absorbed current 0.4 A
Power consumption in stand-by 8 mA
Max Thrust 428 N
Opening speed 6.7÷11 m/min
Duty cycle Intensive use
Protection level IP44
Operating temperature -20°C / +50°C
Max gate weight 450 kg
Driving gear for rack M4 Z14
Weight 10.4 kg
Items no. per pallet 40
Kit weight 11.1 kg
Kits no. per pallet 40

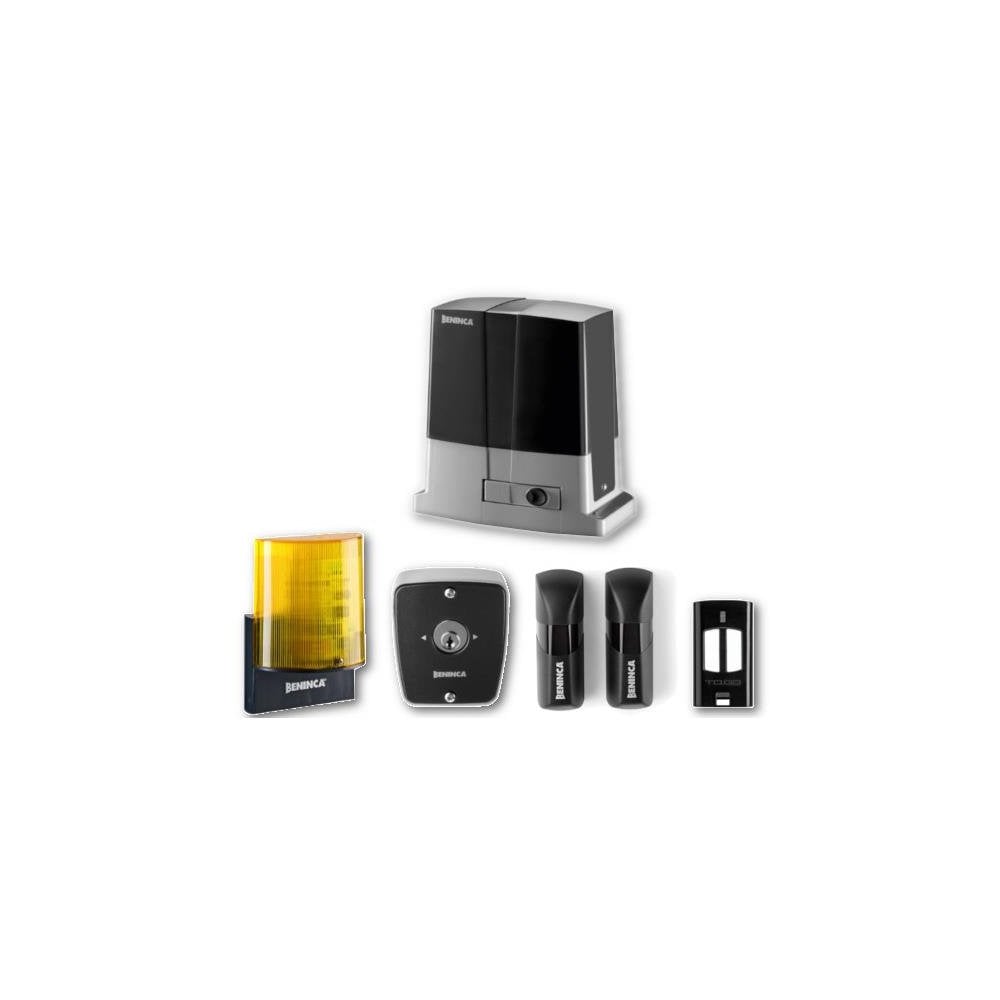

KIT INCLUDES

Kit Component Quantity
KBULL424 1x
BULL424ESA 1x
PUPILLA.R 1x
LAMPI24.LED 1x
TOKEY 1x
TO.GO2VA 1x
