Manufacturer: Beninca
BENINCA KBULL624T Sliding gate kit up to 600kg - TURBO (24v)
BENINCA KBULL624T Sliding gate kit up to 600kg - TURBO (24v)
Regular price
£927.60
Regular price
Sale price
£927.60
Unit price
/
per
BENINCA KBULL624T Sliding gate kit up to 600kg - TURBO (24v)
Comes with CP.B24 TURBO control unit with incorporated receiver and virtual encoder personalised release key built-in battery charger

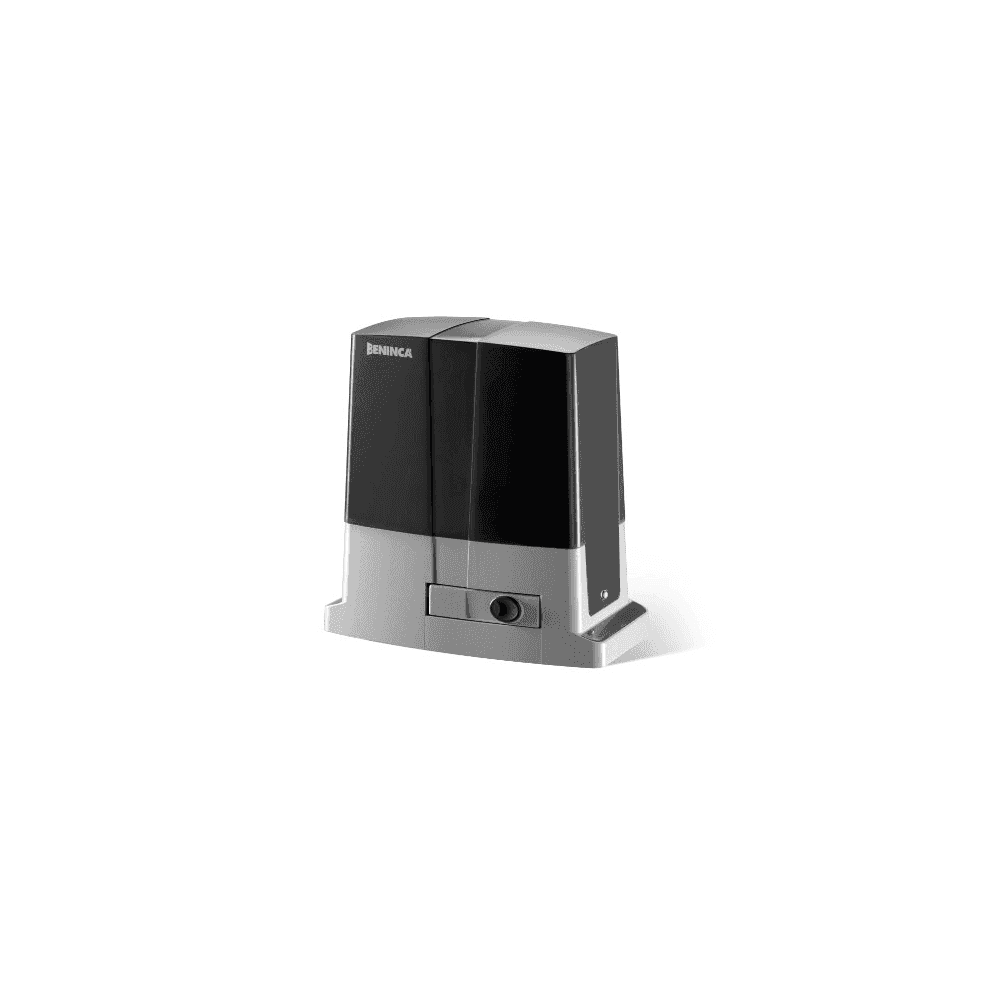

- Fast 24 VDC geared motor for intensive use with integrated control unit equipped with switching power supply (115/230 VAC) that permits a reduced power use and a long lifespan of the actuator
- The main control unit, on the top part of the motor, makes it possible to facilitate the wiring procedure and also to calculate the position of the motor starting from the measurement of instantaneous speed (virtual encoder)
- The virtual encoder allows proper management of the slowing-down phases, movement tracking (STC system), and torque management in relation to the position of the gate, which guarantees maximum safety
- Self-programming with the radio transmitter can be activated at the first installation. Practical cableguides
- Maximum performance and speed (25.5 m/min with 600 kg) • Anti-crushing system with amperometric obstacle detection
- Safety sensor that stops the motor power supply during release operations • Designed for connection to the X.BE module to integrate the device into KNX home automation systems
- Convenient compartment for 2 mod. DA.BT2 2.1 Ah batteries

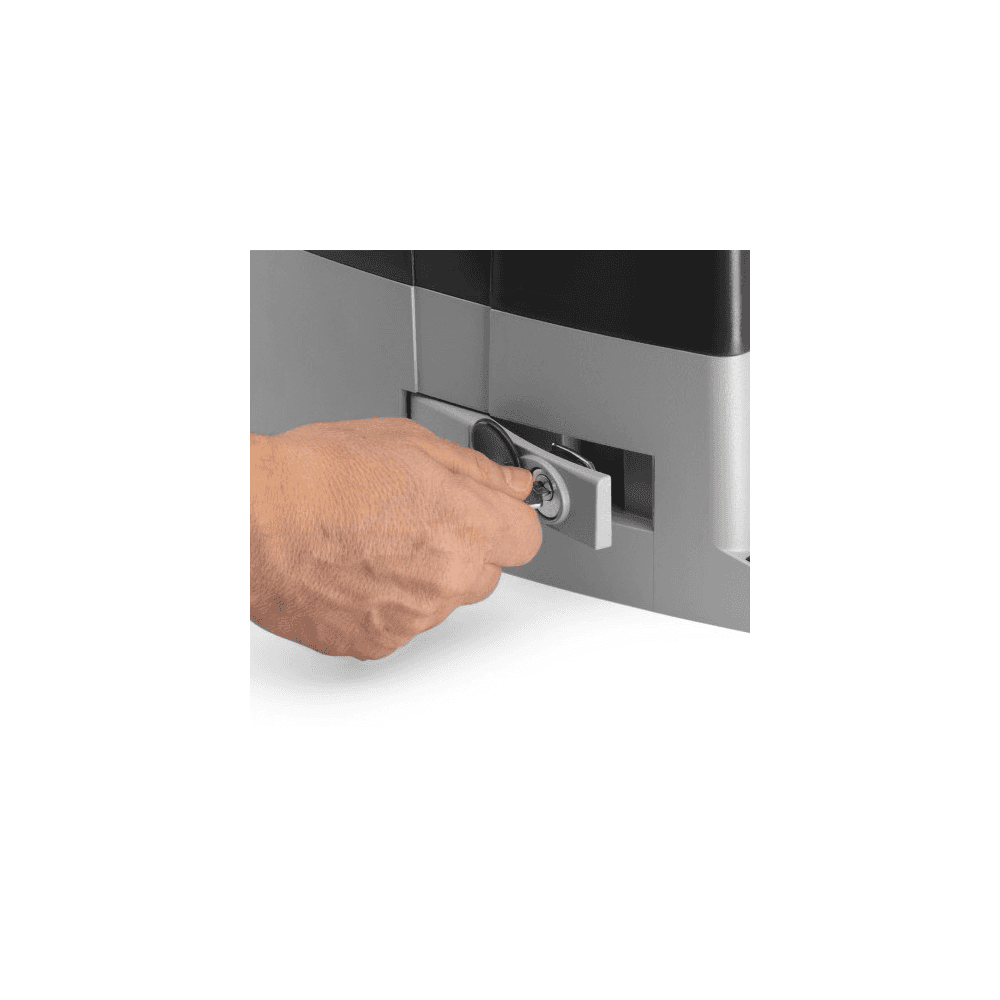

- Metal release lever
- Option to operate opposed sliding gates using the SIS accessory
- Version available with magnetic limit switches - contact us (BULL624 TURBO.S)
OPERATOR TECHNICAL SPECIFICATIONS
Technical Data | BULL624 TURBO | BULL624 TURBO.S |
---|---|---|
Power supply | 115 Vac / 230 Vac (50-60Hz) | 115 Vac / 230 Vac (50-60Hz) |
Motor supply | 24 Vdc | 24 Vdc |
Max absorbed current | 3 A | 3 A |
Power consumption in stand-by | 8 mA | 8 mA |
Max Thrust | 330 N | 330 N |
Opening speed | 12.5÷25.5 m/min | 12.5÷25.5 m/min |
Duty cycle | 60%* | 60%* |
Protection level | IP44 | IP44 |
Magnetic limit switches | NO | YES |
Operating temperature | -20°C / +50°C | -20°C / +50°C |
Max gate weight | 600 kg | 600 kg |
Driving gear for rack | M4 Z18 | M4 Z18 |
Weight | 10 kg | 10 kg |
Items no. per pallet | 40 | 40 |
Kit weight | 10.6 kg | --- |
Kits no. per pallet | 40 | --- |
* In extreme operating conditions (environment T 50°C, speed 25.5 m/min, gate weight 600 kg) the cycle falls to 40%

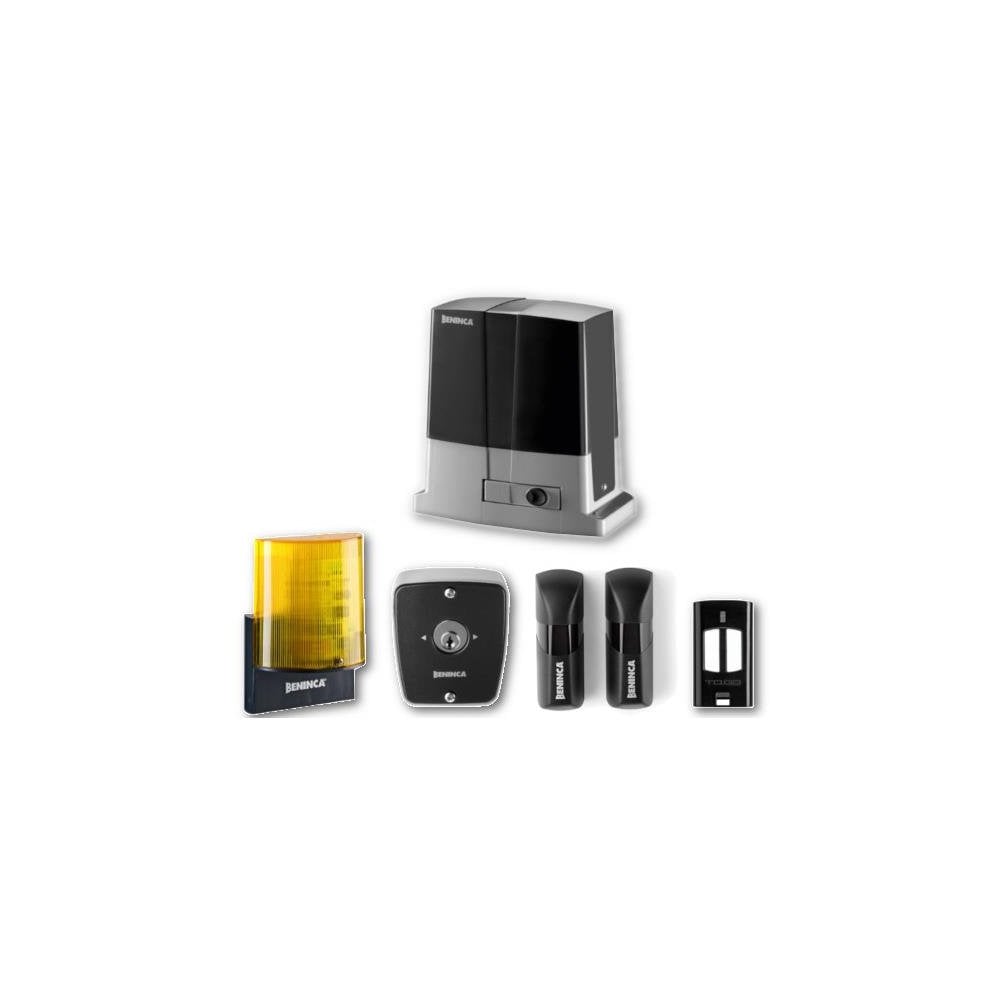

KIT INCLUDES
Kit Component | Quantity |
---|---|
KBULL624TURBO | 1x |
BULL624TURBO | 1x |
PUPILLA.R | 1x |
LAMPI24.LED | 1x |
TOKEY | 1x |
TO.GO2VA | 1x |
