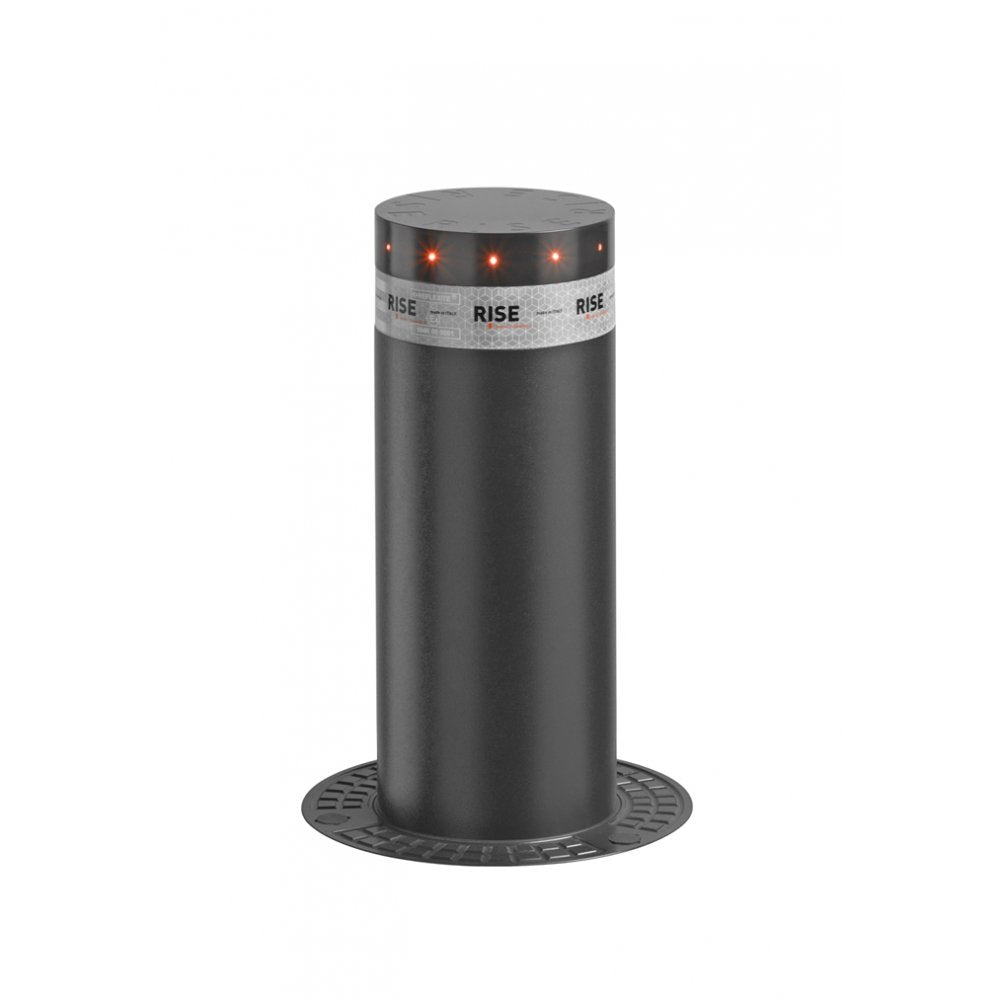

BENINCA VIGILANT500 24V electromechanical VIGILANT 500mm auto rising bollard

BENINCA VIGILANT500 24V electromechanical VIGILANT 500mm auto rising bollard

SKU:

Regular price £3,052.74
Regular price Sale price £3,052.74
Sale Sold out
Tax included.

• High number of cycles and low power consumption

• Ability to operate even in the event of a power failure thanks to the central group with UPS

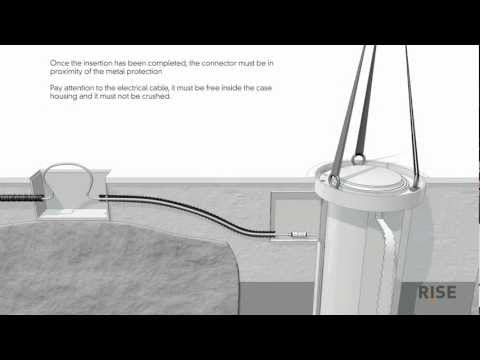

• Quick and easy to install thanks to the foundation box can be assembled on site without welding

• Equipped with RS485 communication bus and Ethernet connection via TCP/IP

• Device encoder integrated obstacle detection and amperometric

• Equipped with anti-vandal function, which allows to detect a forced command, to reset the bollard and activate an alarm

• PLUG&PLAY Connection between bollard and control panel

• EN124 (40T) Top equipped with LED lights

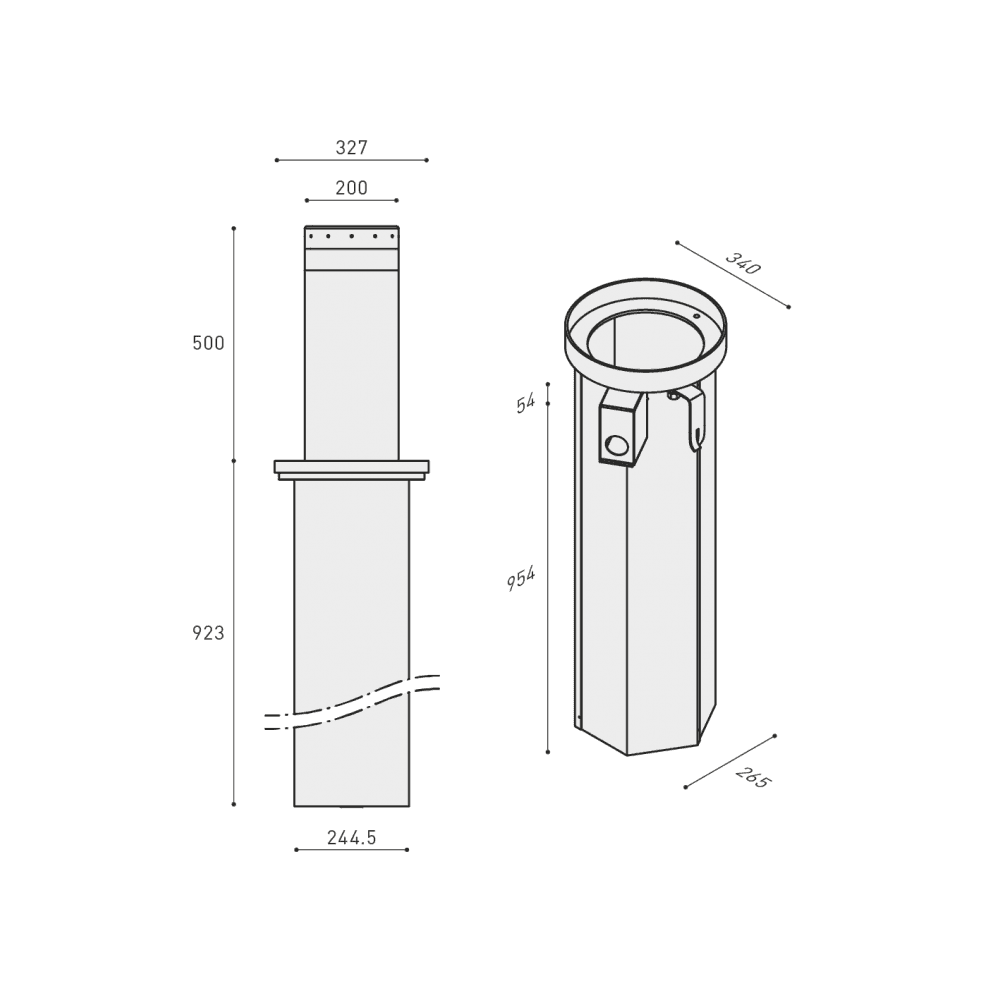

Cylinder height 500 mm
Cylinder diameter 200 mm
Raising time 4 s
Lowering time 3 s
Power Supply 230 Vac / 50/60 Hz
Motor supply 24 Vdc
Absorbed current 6 A
Absorbed power 90 W
Standby consumption 10 W
Consumption during rising 1 A
Daily cycles 1,200
Impact resistance 11.000 J
Breakout resistance 180.000 J
Operating temperature -20°C / +50°C
Protection level IP68
Electric Brake 5 N
Weight (without foundation box) 84/90 kg
