Manufacturer: Beninca

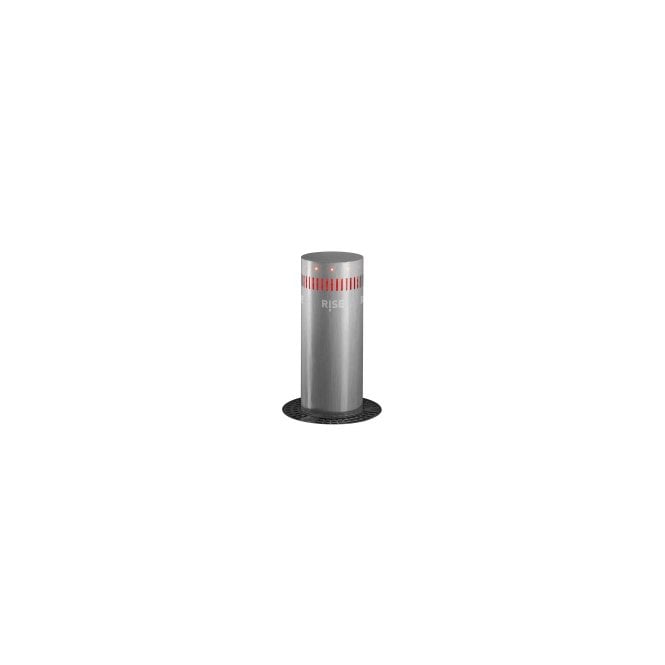

BENINCA VIGILANT500I 24V electromechanical VIGILANT 500mm auto rising bollard - stainless steel
BENINCA VIGILANT500I 24V electromechanical VIGILANT 500mm auto rising bollard - stainless steel
SKU:VIGILANT500I
Regular price
£4,910.76
Regular price
Sale price
£4,910.76
Unit price
/
per
Tax included.
Couldn't load pickup availability
• High number of cycles and low power consumption
• Ability to operate even in the event of a power failure thanks to the central group with UPS

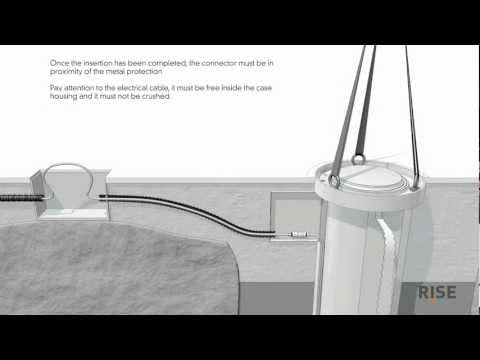

• Quick and easy to install thanks to the foundation box can be assembled on site without welding
• Equipped with RS485 communication bus and Ethernet connection via TCP/IP
• Device encoder integrated obstacle detection and amperometric
• Equipped with anti-vandal function, which allows to detect a forced command, to reset the bollard and activate an alarm
• PLUG&PLAY Connection between bollard and control panel
• EN124 (40T) Top equipped with LED lights

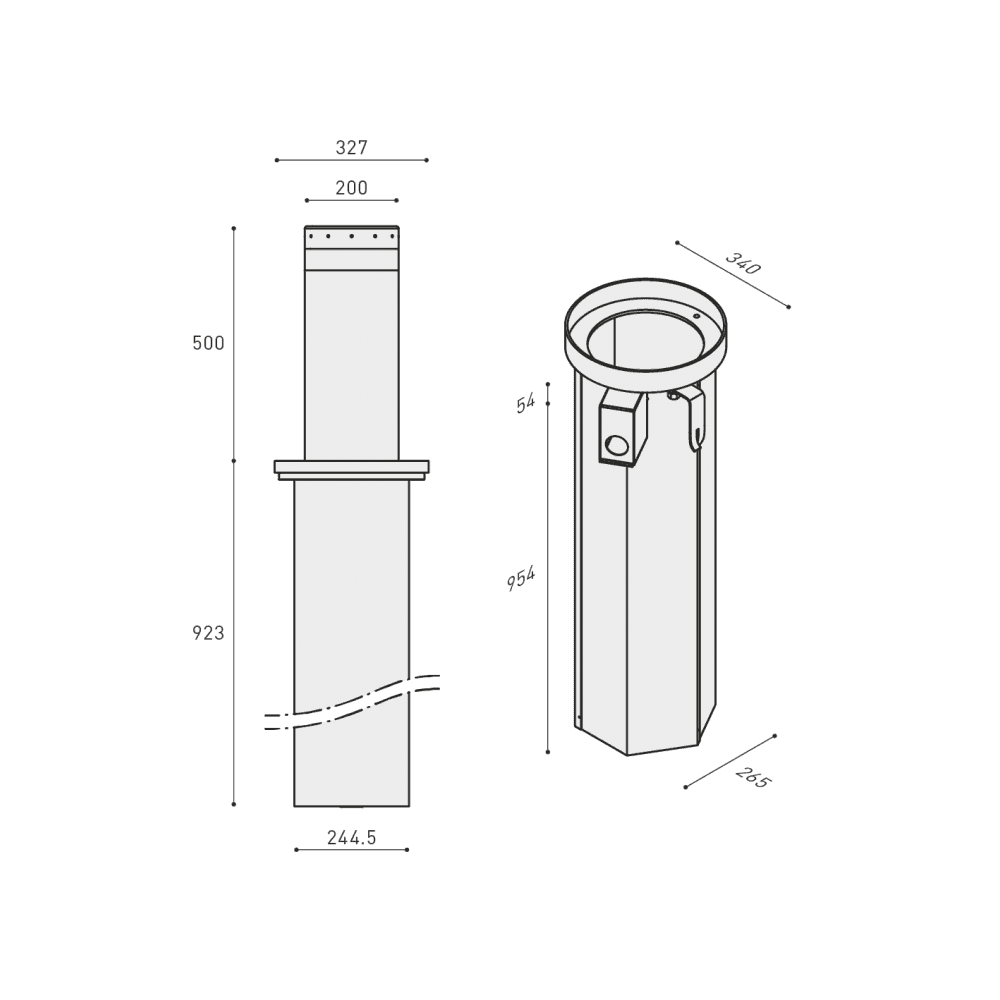

| Cylinder height | 500 mm |
| Cylinder diameter | 200 mm |
| Raising time | 4 s |
| Lowering time | 3 s |
| Power Supply | 230 Vac / 50/60 Hz |
| Motor supply | 24 Vdc |
| Absorbed current | 6 A |
| Absorbed power | 90 W |
| Standby consumption | 10 W |
| Consumption during rising | 1 A |
| Daily cycles | 1,200 |
| Impact resistance | 11.000 J |
| Breakout resistance | 180.000 J |
| Operating temperature | -20°C / +50°C |
| Protection level | IP68 |
| Electric Brake | 5 N |
| Weight (without foundation box) | 84/90 kg |
