Manufacturer: Beninca

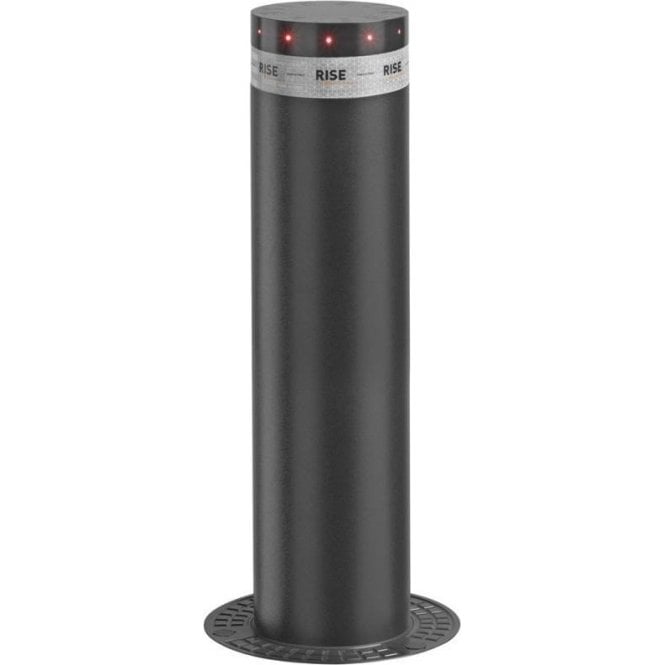

BENINCA VIGILANT800 24v electromechanical VIGILANT 800mm auto rising bollard
BENINCA VIGILANT800 24v electromechanical VIGILANT 800mm auto rising bollard
SKU:VIGILANT800
Regular price
£4,137.60
Regular price
Sale price
£4,137.60
Unit price
/
per
Tax included.
Couldn't load pickup availability
• High number of cycles and low power consumption
• Ability to operate even in the event of a power failure thanks to the central group with UPS
• Quick and easy to install thanks to the foundation box can be assembled on site without welding
• Equipped with RS485 communication bus and Ethernet connection via TCP/IP
• Device encoder integrated obstacle detection and amperometric
• Equipped with anti-vandal function, which allows to detect a forced command, to reset the bollard and activate an alarm
• PLUG&PLAY Connection between bollard and control panel
• EN124 (40T) Top equipped with LED lights
Cylinder height | 800 mm |
Cylinder diameter | 200 mm |
Raising time | 7 s |
Lowering time | 5 s |
Power Supply | 230 Vac / 50/60 Hz |
Motor supply | 24 Vdc |
Absorbed current | 7 A |
Absorbed power | 90 W |
Standby consumption | 11 W |
Consumption during rising | 1.4 A |
Daily cycles | 1,000 |
Impact resistance | 11.000 J |
Breakout resistance | 180.000 J |
Operating temperature | -20°C / +50°C |
Protection level | IP68 |
Electric Brake | 5 N |
Weight (without foundation box) |
112/120 kg |
