Manufacturer: Beninca

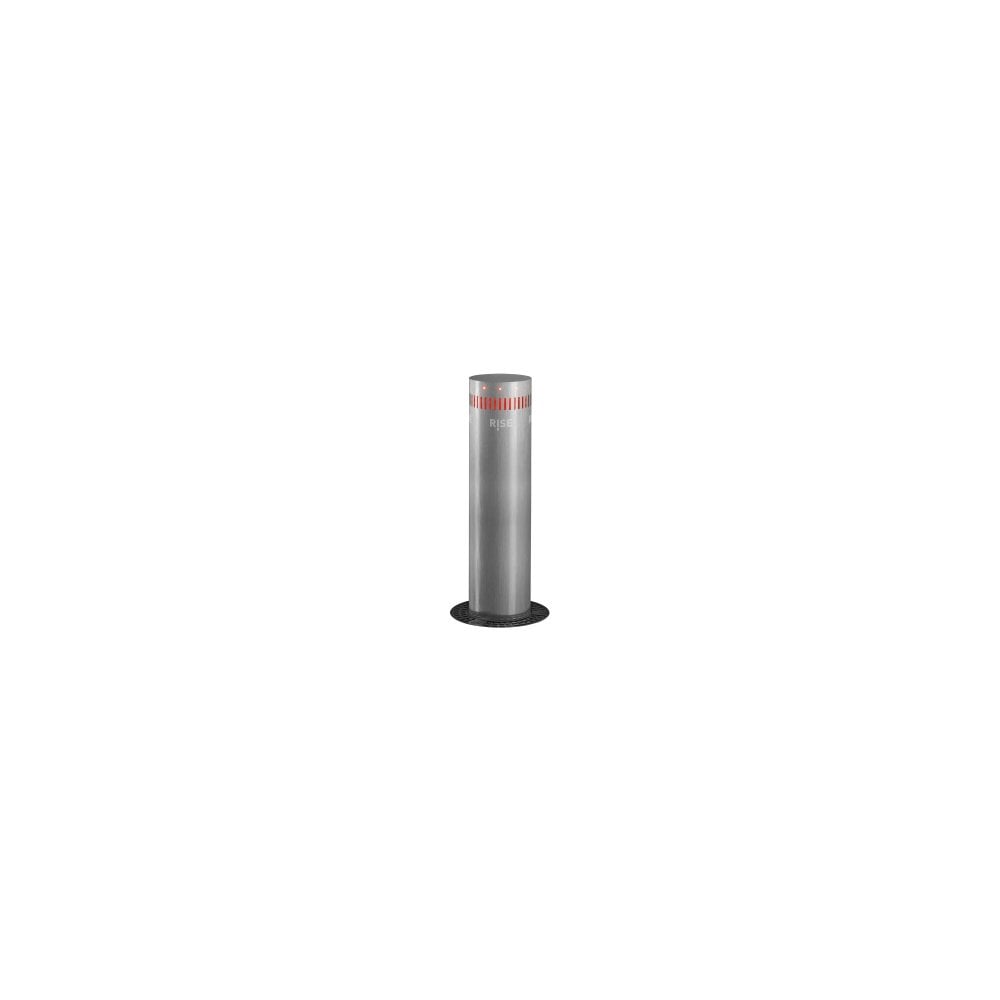

BENINCA VIGILANT800I 24v electromechanical VIGILANT 800mm auto rising bollard - stainless steel
BENINCA VIGILANT800I 24v electromechanical VIGILANT 800mm auto rising bollard - stainless steel
SKU:VIGILANT800I
Regular price
£6,914.40
Regular price
Sale price
£6,914.40
Unit price
/
per
Tax included.
Couldn't load pickup availability
• High number of cycles and low power consumption
• Ability to operate even in the event of a power failure thanks to the central group with UPS
• Quick and easy to install thanks to the foundation box can be assembled on site without welding
• Equipped with RS485 communication bus and Ethernet connection via TCP/IP
• Device encoder integrated obstacle detection and amperometric
• Equipped with anti-vandal function, which allows to detect a forced command, to reset the bollard and activate an alarm
• PLUG&PLAY Connection between bollard and control panel
• EN124 (40T) Top equipped with LED lights
| Cylinder height | 800 mm |
| Cylinder diameter | 200 mm |
| Raising time | 7 s |
| Lowering time | 5 s |
| Power Supply | 230 Vac / 50/60 Hz |
| Motor supply | 24 Vdc |
| Absorbed current | 7 A |
| Absorbed power | 90 W |
| Standby consumption | 11 W |
| Consumption during rising | 1.4 A |
| Daily cycles | 1,000 |
| Impact resistance | 11.000 J |
| Breakout resistance | 180.000 J |
| Operating temperature | -20°C / +50°C |
| Protection level | IP68 |
| Electric Brake | 5 N |
| Weight (without foundation box) |
112/120 kg |
