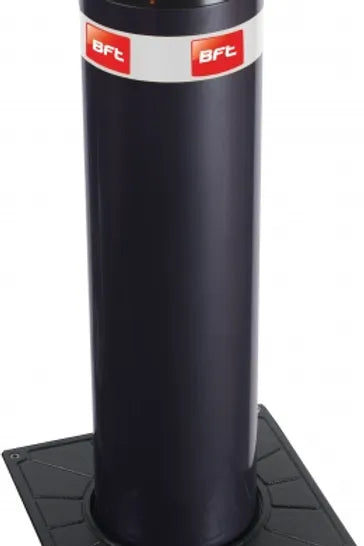

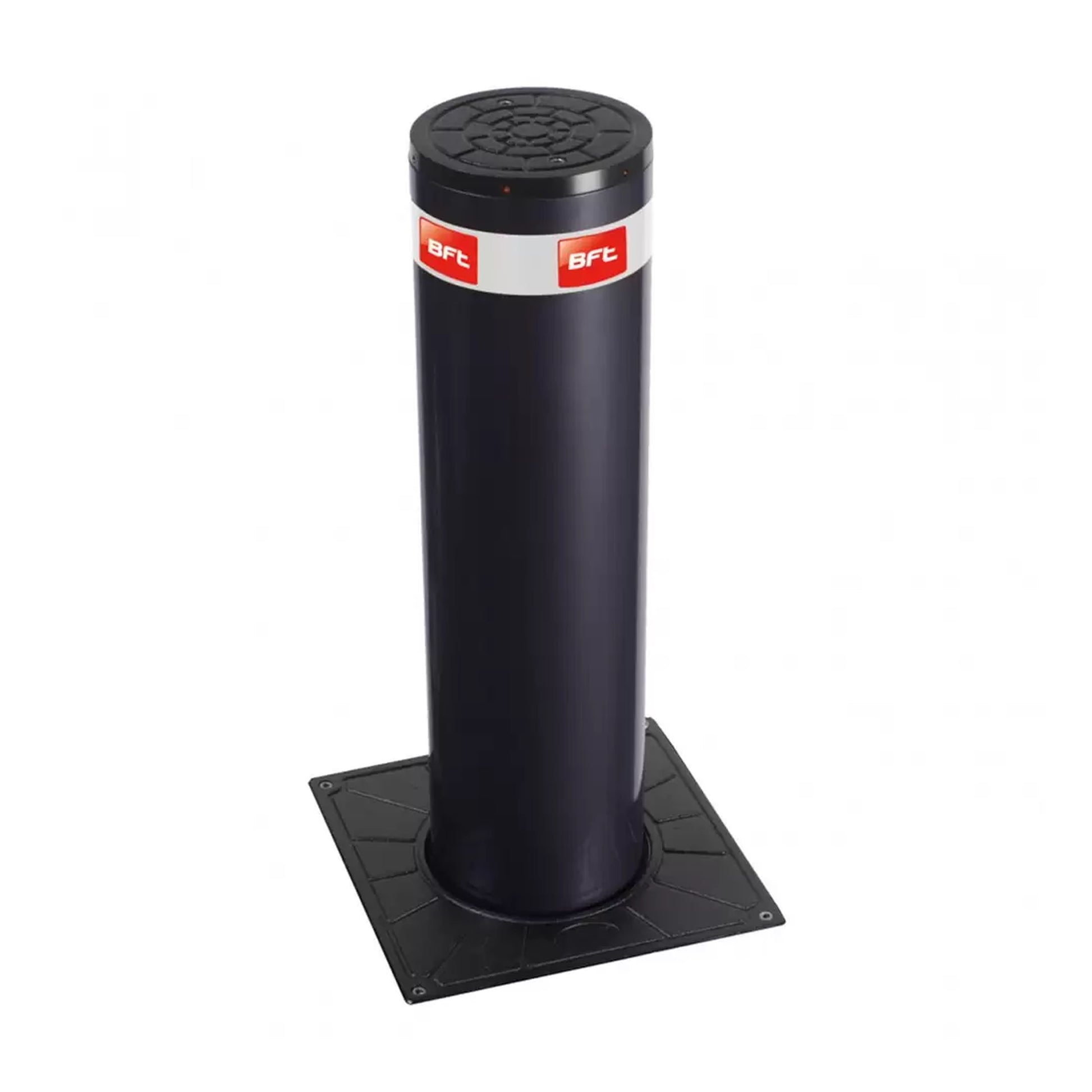

BFT STOPPY B 500mm electro-mechanical automatic rising bollard

Description

Designed for domestic driveway installations to control access and provide security to property and buildings, the BFT Stoppy B 500 is a simple, ready to install and value for money automatic rising bollard.

Options for controlling the bollard are:

• The Mitto transmitter which can be programmed straight in using the built in receiver (sold separately)
• Loop detectors for vehicles (sold separately)

Single bollard unit only

Additional Information

• Electro-mechanical automatic rising bollard
• Additional automatic rising bollard for use with BFT STOPPY B Kit 500mm x 115mm electromechanical automatic bollard
• 230 V
• Diameter: 115 mm
• Raised Height 500 mm
• Rear-reflecting strip
• Impact resistance 6000 J
• To be used with Perseo cbd dedicated control panel (not included)
• Guarantee: 2 years
• Opening/closing time: 7 seconds
• Usage: semi-intensive

Installation

• Requires a 230v power supply to each panel
• Foundation depth Min 1200mm (including 125mm for drainage) x 800mm x 800mm to be concreted below ground with adequate drainage
• High water areas may experience slow water drain-off
• Not recommended for sites prone to regular flooding
• PERSEO CBD Control panel: Maximum of 4 bollards in parallel on the same system
• Distance between bollards should be 1-1.5 metres

Specification

Control Unit: PERSEO CBE

Power Supply: 230V

Power Consumption: 300W

Opening or Closing Time: 7s

Rod Height: 500mm / 19.68505 inch

Rod Diameter: 115mm / 4.5275615 inch

Type of Limit Switch: REED Magnetic Sensor

Slowdown: Yes

Impact Resistance: 6000 J

Break-in Proof: 60000 J

Manual Cycle: Reversible in the absence of voltage

Frequency of use: Semi intensive

Protection Rating: IP67

Environmental Conditions: -20 ÷ 60 °C / -4 ÷ 140 °F

U-Link: No
