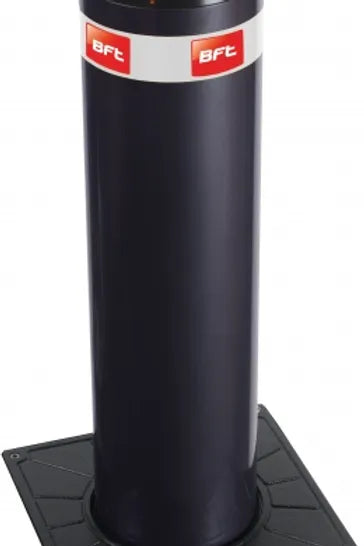

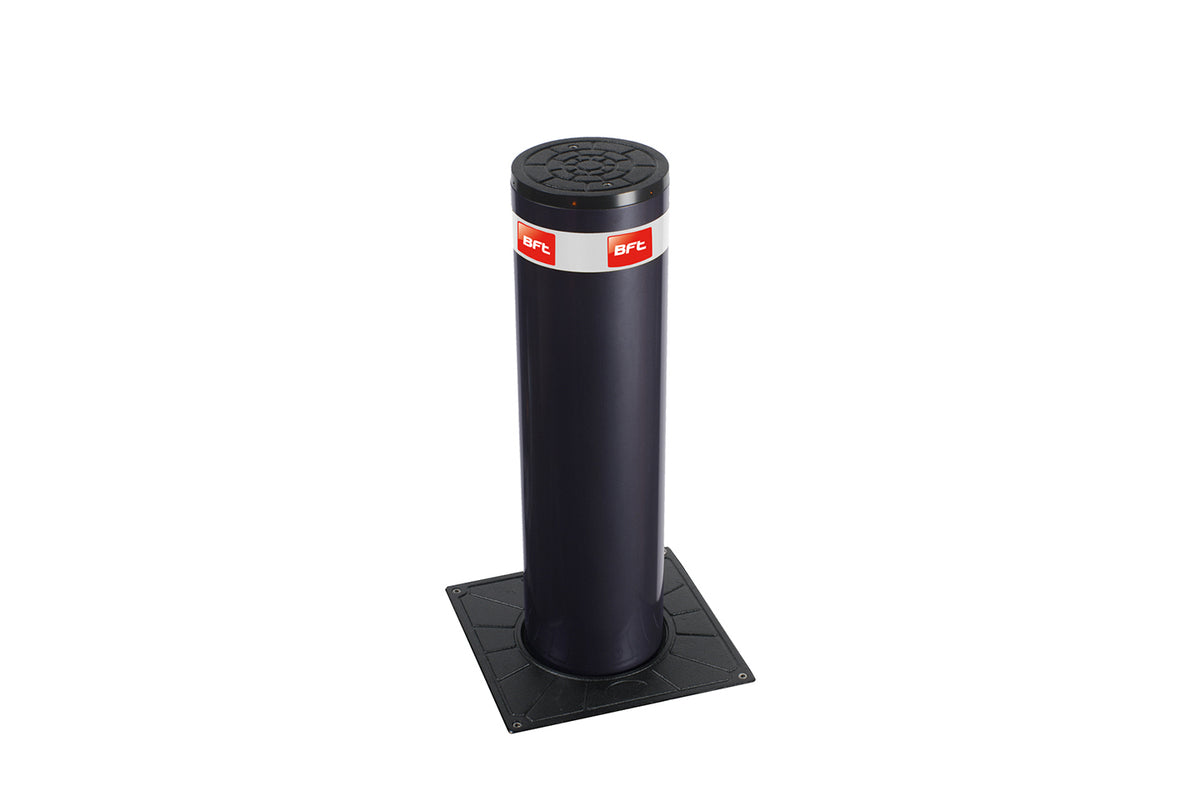

BFT STOPPY B 700mm electro-mechanical automatic rising bollard

Description

An effective solution for controlling access and providing security to protect domestic properties and vehicles, the BFT Stoppy B 700 is a simple, ready to install and value for money automatic rising bollard.

Options for controlling the bollard is:

• The Mitto transmitter which can be programmed straight in using the built in receiver (sold separately)
• Loop detectors for vehicles (sold separately)

Single bollard unit only

 Additional Information

• Electro-mechanical automatic rising bollard
• Additional automatic rising bollard for use with BFT STOPPY B Kit 700mm x 200mm electromechanical automatic bollard
• 230 V
• Diameter: 200 mm
• Raised Height: 700 mm
• Rear-reflecting strip
• Impact resistance 6000 J
• To be used with Perseo cbd dedicated control panel (not included)
• Guarantee: 2 years
• Opening/closing time: 9 seconds
• Usage: semi-intensive

Installation

• Requires a 230v power supply to each panel
• Foundation depth Min 1430 mm (including 250mm for drainage) to be concreted below ground with adequate drainage
• Foundation box: 1180mm x 273mm x 5mm
• High water areas may experience slow water drain-off
• Not recommended for sites prone to regular flooding
• PERSEO CBD Control panel: Maximum of 4 bollards in parallel on the same system
• Distance between bollards should be 1-1.5 metres

Specification

Control Unit: PERSEO CBE

Power Supply: 230V

Power Consumption: 300W

Opening or Closing Time: 9s

Rod Height: 700mm / 27.55907 inch

Rod Diameter: 200mm / 7.87402 inch

Type of Limit Switch: REED Magnetic Sensor

Slowdown: Yes

Impact Resistance: 6000 J

Break-in Proof: 60000 J

Manual Cycle: Reversible in the absence of voltage

Frequency of use: Semi intensive

Protection Rating: IP67

Environmental Conditions: -20 ÷ 60 °C / -4 ÷ 140 °F

U-Link: No
