Manufacturer: CAME

CAME 230v Electro mechanical underground operator pair kit FrogAE-P up to 3.5m + Free RGSM connectivity kit

CAME 230v Electro mechanical underground operator pair kit FrogAE-P up to 3.5m + Free RGSM connectivity kit


Regular price £1,099.68
Regular price Sale price £1,099.68
Sale Sold out
Tax included.

Twin gate kit. 230v. Max 3500mm. 800kg. Per gate. Encoder. EN Tested.

FrogAE-P 230v Electro mechanical underground operator pair kit up to 3.5m leaf (with encoder)

CAME FROGAE-P KIT + Free RGSM connectivity kit

Complete kit for a pair of residential or apartment block swing gates up to a maximum of 3.5m in width or 800kg in weight each leaf

Ultimate Choice in Aesthetical Appearance

This underground equipment is specifically designed so that the motor is concealed in a load bearing foundation box beneath the pivot point of your hinged swing gates Giving you the very best in aesthetics while further reducing hazards by removing more trapping points above ground level.

Slow Down on Open and Close

With this equipment you can adjust the speed of your gate as it approaches the open and closed positions. Further improving on the overall installation and provides a personallised and refined touch to each application.

Manual Release from outside

Manual release from outside the property in the event of a power failure or fault. Particularly useful when the gate is the only means of access to the property.

Integrated Open & Close Limits

This equipment features adjustable open and close limits. This allows you to set the gates limits of travel without the need for a physical stop in the ground. This feature has some limitiations and may not function correctly on wider gates. If your gates are over 1.8m in width it is advisable to talk to us before ordering if this feature is critical to your installation.

LCD Display

Control Panel with LCD display for simplified programming.

Built in obstacle detection

This equipment features built in obstacle detection. Implemented correctly this can stop and reverse upon detection of an obstacle. Obstacles are detected when the gate experiences an increase in resistance that can be caused by a person a vehicle an object or even wind obstructing the path of the gate. Although this safety feature can be very effective. It is strongly advised that all installations undergo an impact force test to ensure the safety of anyone who may come in to contact with the gate. Further safety can be added with the addition of safety edges.

3 Year Warranty

To support our confidence in CAME we offer a 3 year warranty on all CAME electrical components.

CAME Cloud Technology

Enjoy all the functionality of your CAME devices using a cloud based service. Monitor your video entry system from wherever you are via the internet. On smartphone you can receive audio/video calls from your entry panel and open your gate remotely using the XIP mobile app. Available on the App Store and Google Play.

The tables on this website are converted with the Div Table online tool. Please subscribe for an online HTML editor membership to stop adding promotional messages to your documents.

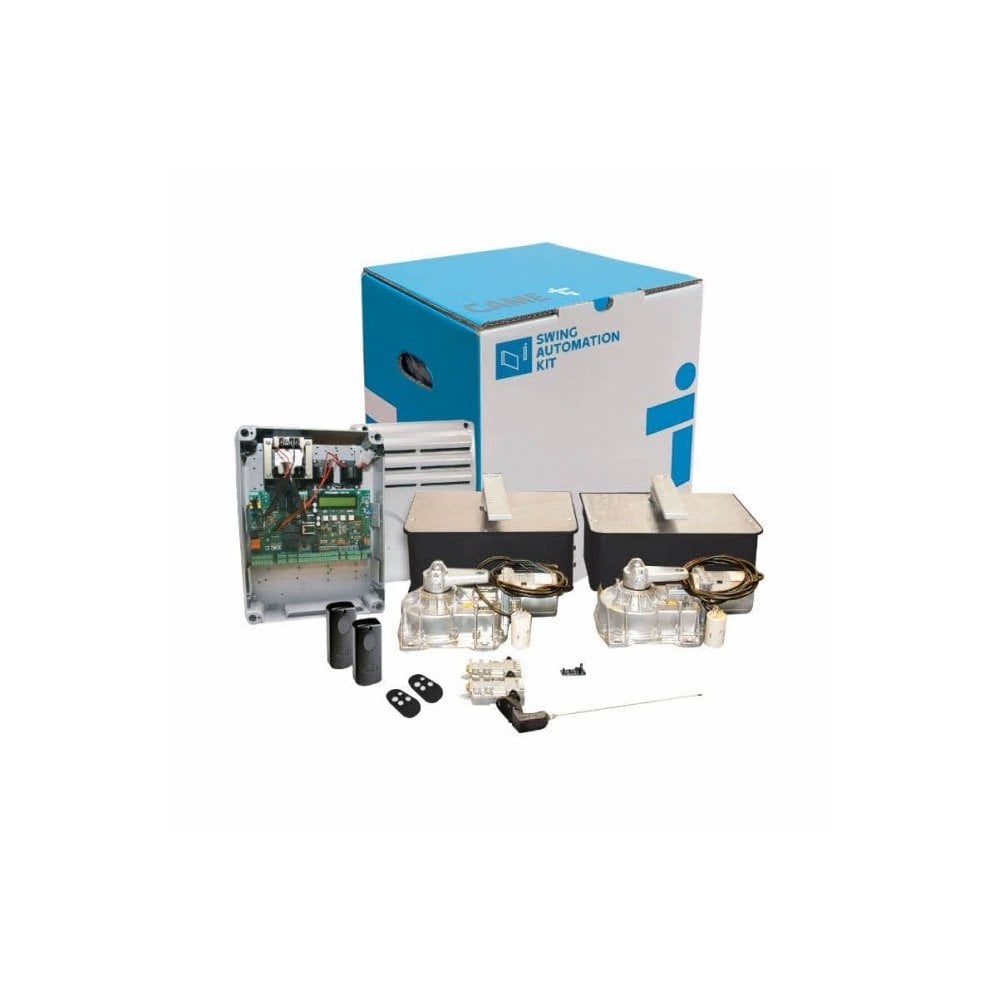

This Kit Consists of:

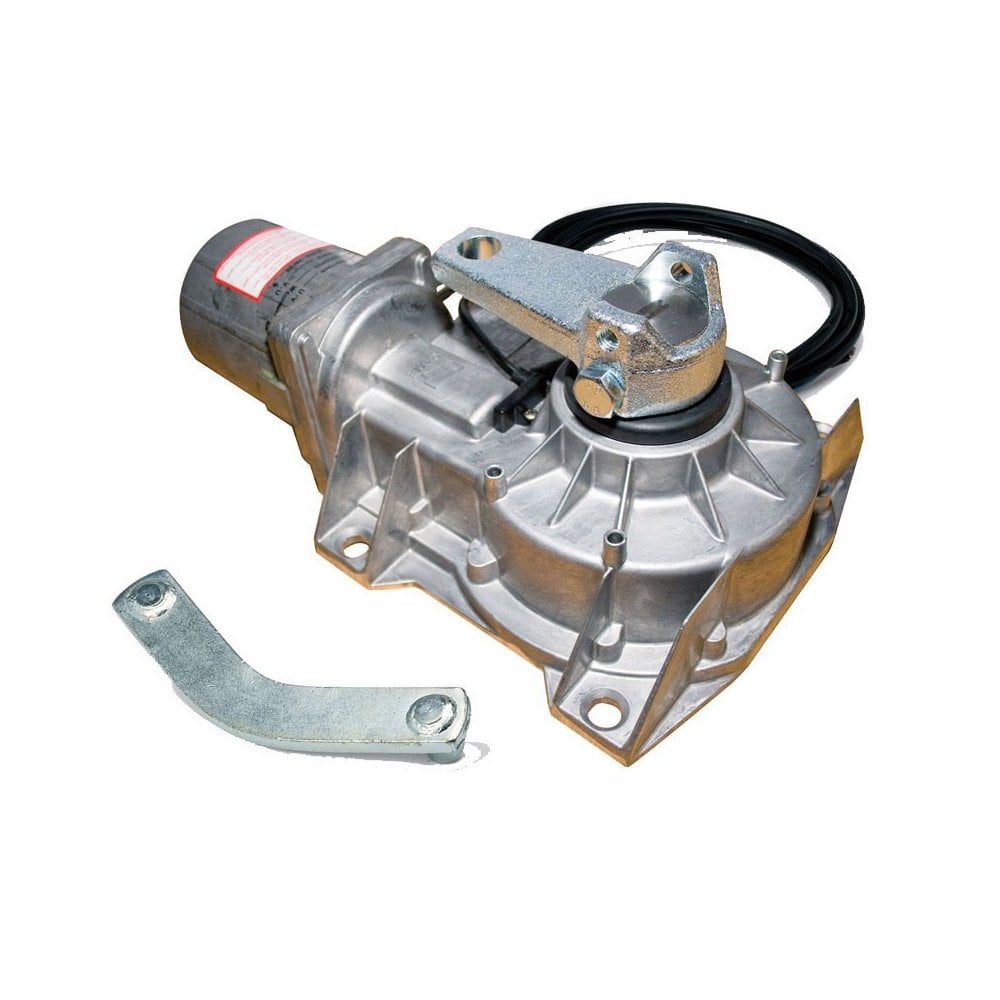

2x Frog-AE underground operators

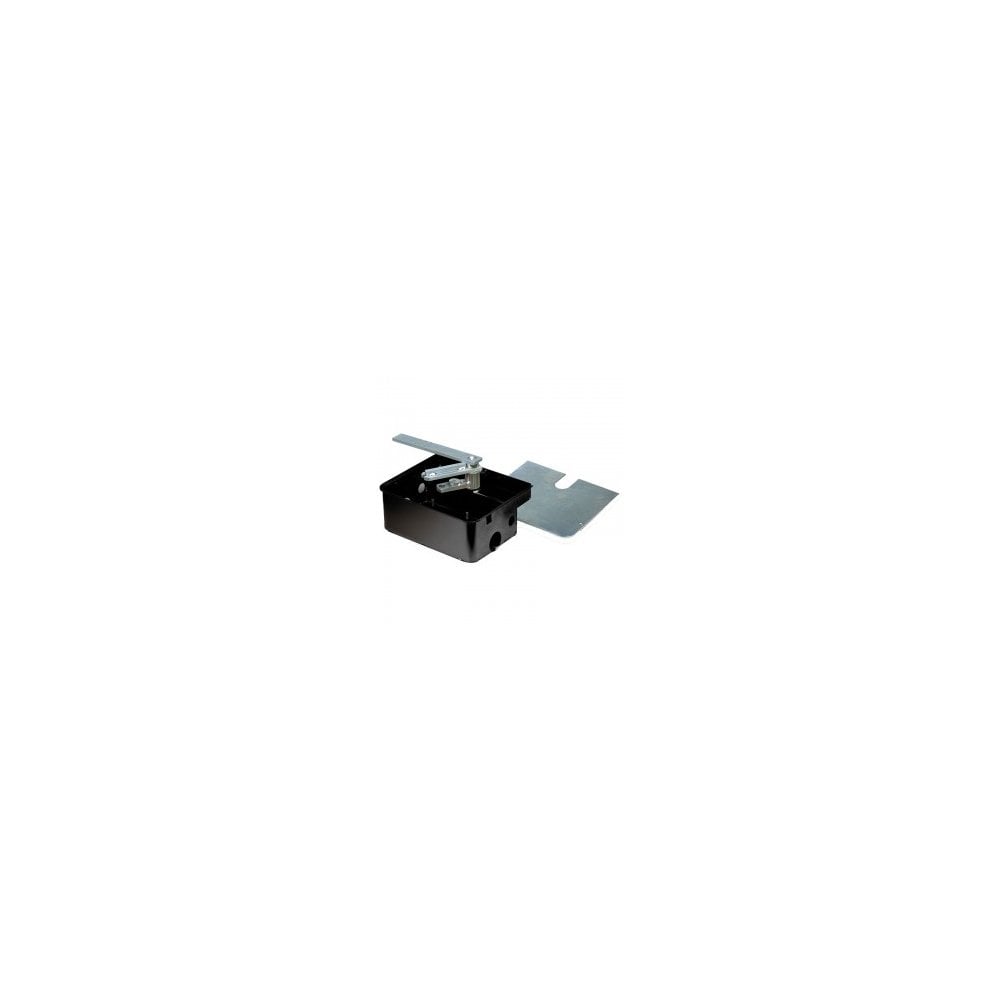

2x Frog-CF foundation case
2x A4364 release mechanism

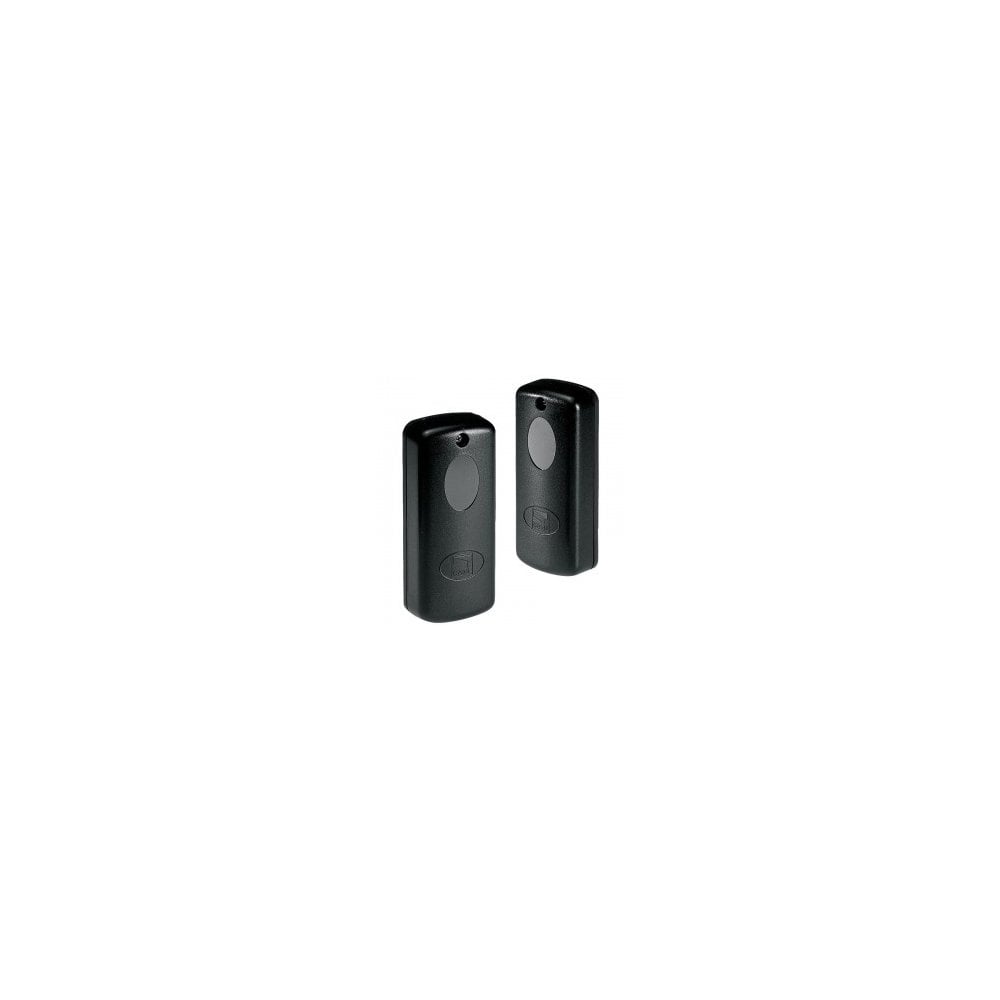

1x DIR-10 pair of photocells

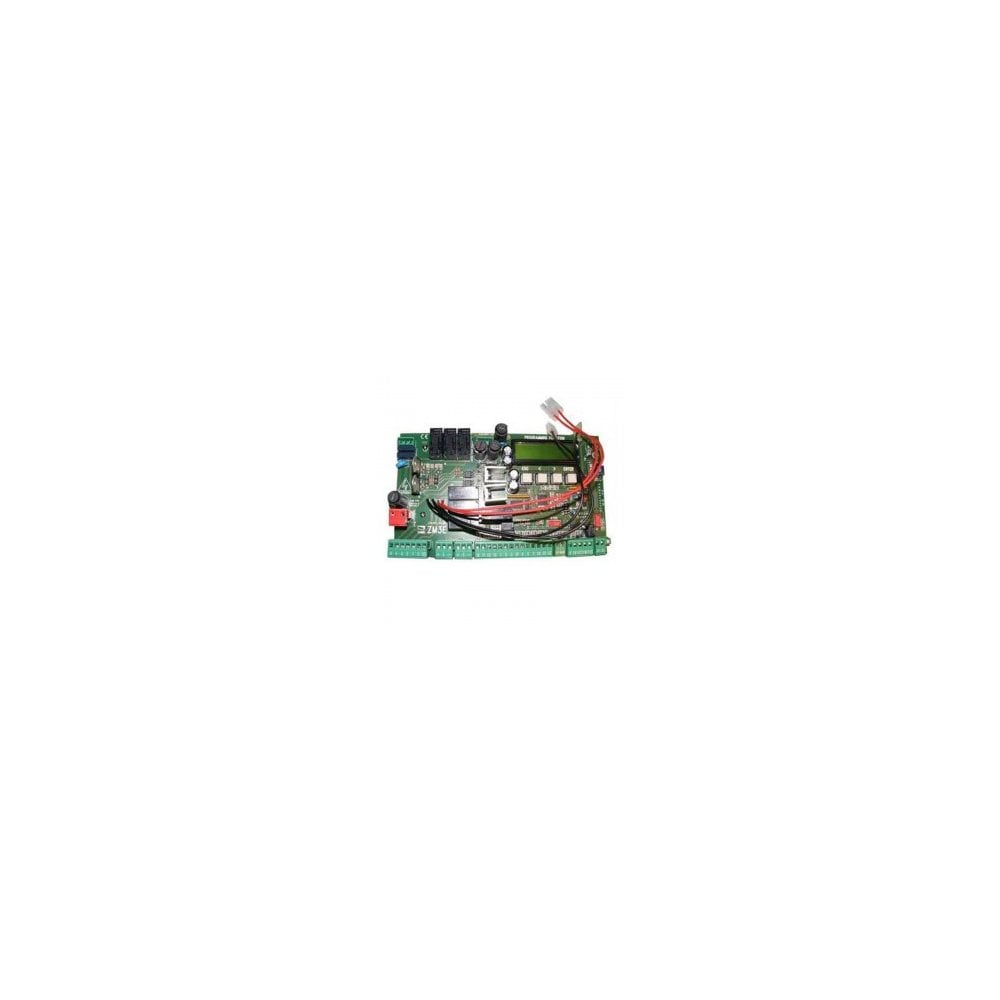

1x ZM3E control panel

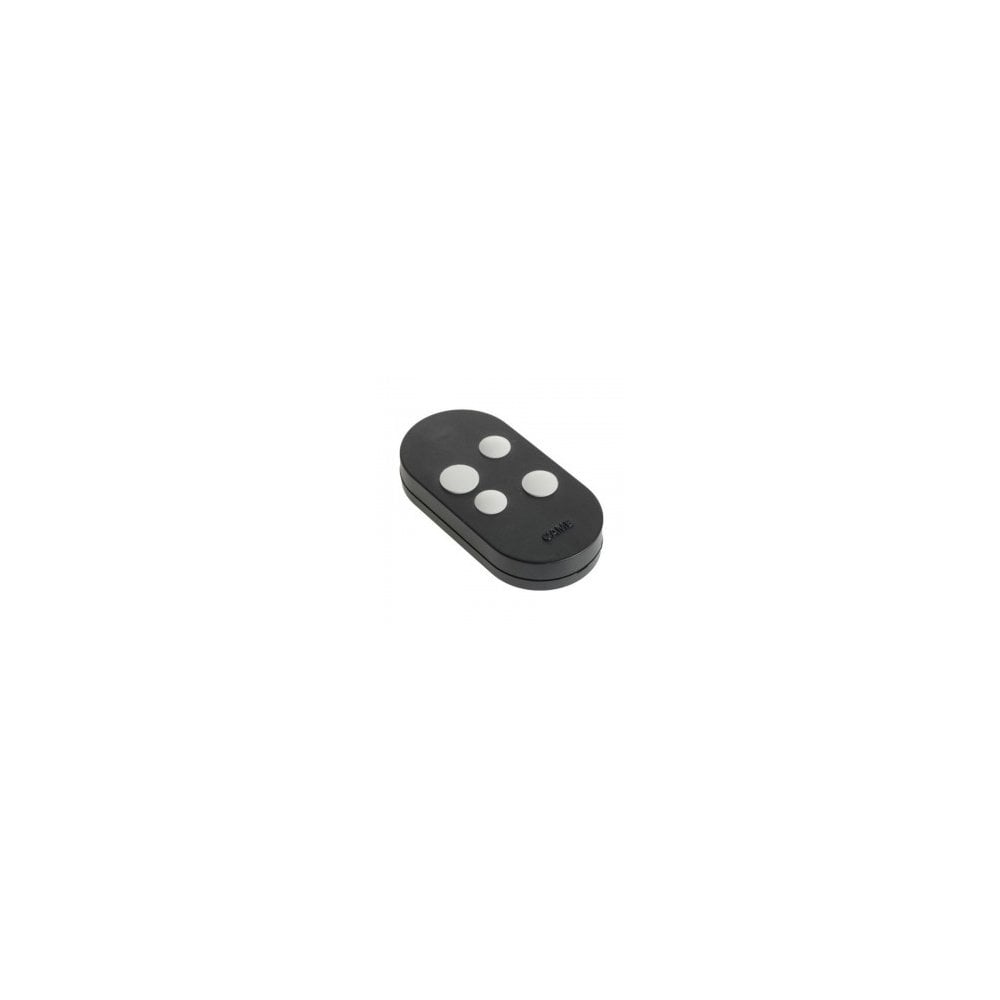

2x TOP-432NA remote transmitters
1x TOP-A433N antenna
1x AF43S radio card

The new RGSM range exploits GSM networks and gives, end-users and installers, total control of automated systems, at all times. This particular module also provides smart operation of all types of automation: thanks to the RGSM, you can now connect and remotely manage all automated devices in the CAME range.

Data Sheet

Gate Type Swing Gate
Single Or Twin Kit Twin Gate Kit
Max Weight Per Gate 800Kg
Max Length Per Gate 3500mm
Above Or Underground Underground
Max Opening Angle 110°
Motor Electromechanical
Locking Method Mechanically Locking Motor
Power Supply Voltage 230v
Motor Voltage 230v
Gate Speed 18 seconds - 90°
Obstacle Detection Built-in
