Manufacturer: CAME

CAME 24v Electro mechanical underground operator pair kit FrogAE-P24 up to 3.5m + Free RGSM connectivity kit

CAME 24v Electro mechanical underground operator pair kit FrogAE-P24 up to 3.5m + Free RGSM connectivity kit


Regular price £1,270.15
Regular price Sale price £1,270.15
Sale Sold out
Tax included.

CAME FROG-AE Underground Swing Gate Automation with Encoder for Gate Leaves up to 3.5m + Free RGSM connectivity kit

24V Kit for use with a pair of swing gates up to 400kg - 3.5m or up to 800kg - 2m per leaf.

FROG-AE is fully Connect compatible which enables full remote control and system management. It is compatible with the CAME Key, allowing for simple setup and backup by smartphone.

As the name implies, FROG is suited to work in damp, below-ground level conditions. It is designed to automate either metal or wooden gates. In every case, the pivot arm becomes the bottom hinge for the leaf.

FROG is suited to the customer who wants a reliable, long-lasting gate operator, but also does not want to see any type of armature attached to the inside of the gate. Once it has been installed there is no sign of the mechanism other than the lid of the casing box which is flush to the driveway.

The irreversible Gearmotor firmly locks the gates and therefore does not need an electric locking system that can malfunction. Another advantage of the irreversible Gearmotor is that they are very difficult to force open, providing added security against burglars. Other functions include 'Pedestrian opening' allowing the opening of one leaf for limited access, and the ability to stop the operation of the gate immediately via the radio transmitter.

In the event of a power cut, the FROG system has a key-operated manual release mechanism that is easily accessible from both sides of the gateway.


The new RGSM range exploits GSM networks and gives, end-users and installers, total control of automated systems, at all times. This particular module also provides smart operation of all types of automation: thanks to the RGSM, you can now connect and remotely manage all automated devices in the CAME range.

Frog-AE-P24 24v Electro mechanical underground operator pair kit up to 3.5m leaf (with encoder)

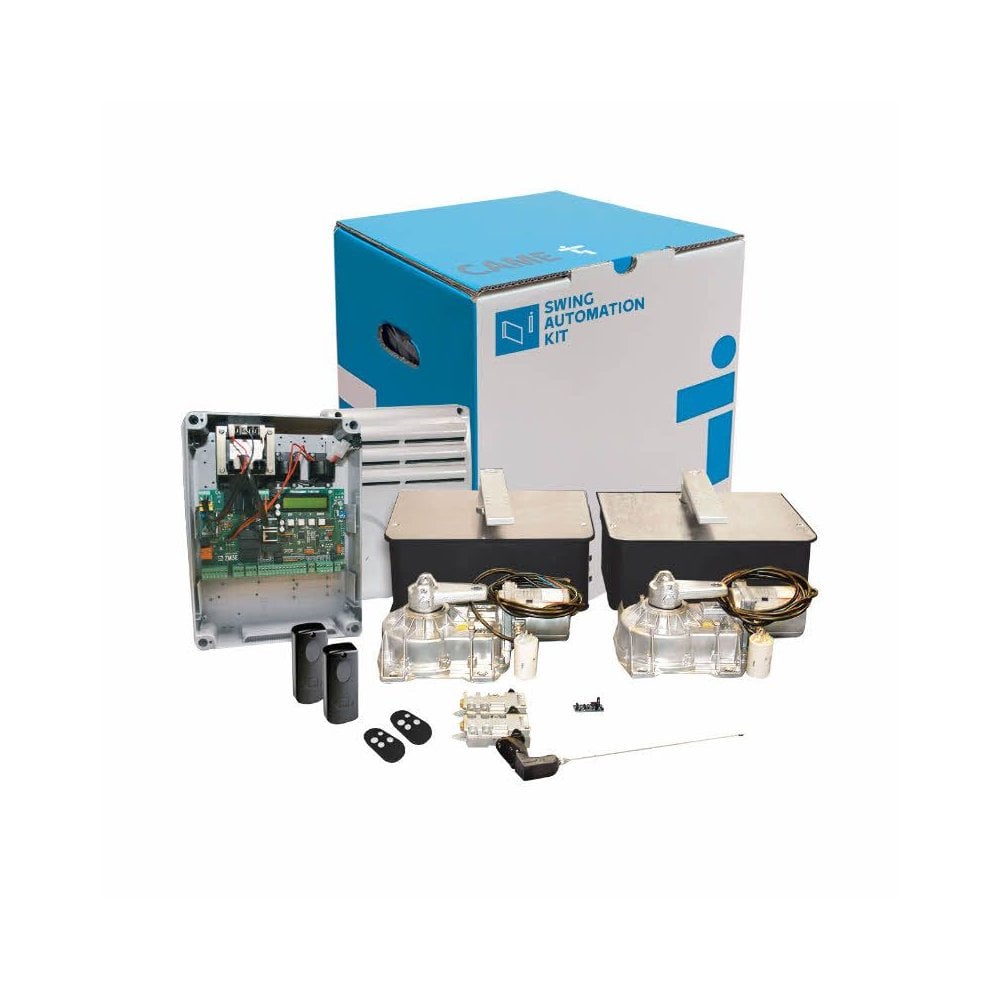

kit includes,

  • 2x Frog-AE24 underground operators
  • 2x Frog-CF foundation case
  • 2x A4364 release mechanism
  • 1x DIR-10 pair of photocells
  • 1x ZLJ24 control panel
  • 2x TOP-432NA remote transmitters
  • 1x TOP-A433N antenna
  • 1x AF43S radio card
