CAME Above ground gate automation electro mechanical kit AXO P3 - for swing gates up to 3 m + Free RGSM connectivity kit

This kit is for use with a pair of swing gates up to 500kg @ 3m or up to 800kg @ 2m per leaf + Free RGSM connectivity kit

The AXO Range is fully Connect compatible which enables full remote control and system management. It is compatible with the CAME Key, allowing for simple setup and backup by smartphone.

AXO features a revolutionary double-headed worm screw drastically reduces wear on the axle boxes. It is designed for long life and the utmost safety even with very large gates.

The Gearmotor has high-quality bearing semi-shells in die-cast aluminum. Installation is easy due to a single three-wired cable connection system.

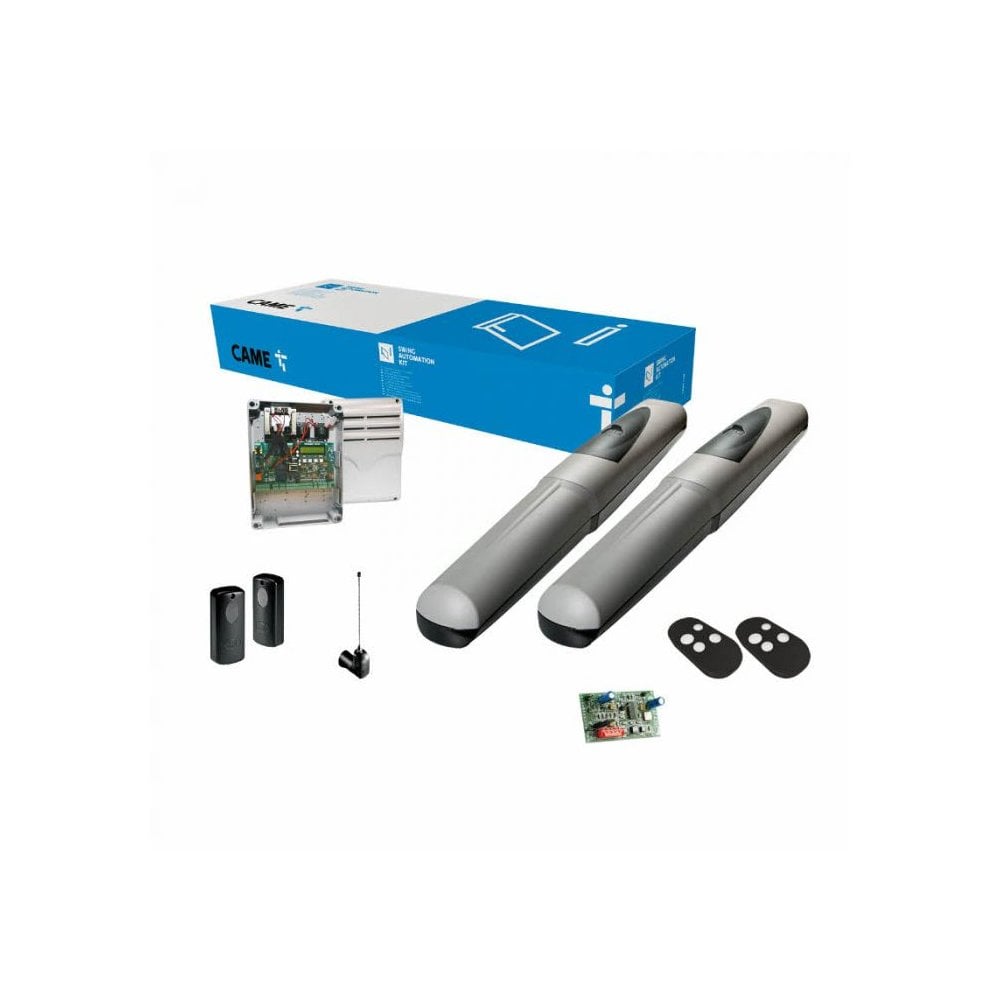

Kit Contents:

• 2 x AX3024 230V Irreversible Gearmotors (with Encoder)
• 1 x Multi-Function Control Panel
• 1 x AF43S Plug-in Radio Frequency Code (433.92MHz)
• 2 x TOP-432NA Dual Frequency 4-Button Fixed Code Transmitters (433.92MHz)
• 1 x TOP-A433N Tuned Antenna
• 1 x DIR-10 Pair Safety Photocells

Features:

• Blackout is no longer a problem due to backup batteries.
• Designed to always work no matter the climate conditions
• Revolutionary double-headed worm-screw drastically reduces wear on the axle box
• Obstacle detection

Technical Specifications:

• AXO is fully Connect compatible, allowing full remote control and system management
• AXO is compatible with the CAME Key, allowing for simple setup and backup by smartphone.

The new RGSM range exploits GSM networks and gives, end-users and installers, total control of automated systems, at all times. This particular module also provides smart operation of all types of automation: thanks to the RGSM, you can now connect and remotely manage all automated devices in the CAME range.

Downloads

CAME AXO 302304 402306 412306 71230 manual

Axo-P3
