Manufacturer: CAME

CAME BKV Plus Sliding Gate Kit 36v up to 1500kg

CAME BKV Plus Sliding Gate Kit 36v up to 1500kg


Regular price £991.58
Regular price Sale price £991.58
Sale Sold out
Tax included.


Complete Sliding Gate Kit for Residential and Apartment Block Settings up to a Maximum of 1500kg in weight each leaf. CAME Connect. RIO Connect.

Battery Backup Available

Battery backup is available for this motor for in the event of a mains power failure. Electric gates make it particularly difficult to gain access to a property if the mains power fails.

Slow Down on Open and Close

With this equipment you can adjust the speed of your gate as it approaches the open and closed positions. Further improving on the overall installation and provides a personallised and refined touch to each application.

Intensive Use

The motor is specifically designed for intensive use. Enjoy the comfort of an electric gate that can open and close for numerous visitors throughout the day. Particularly useful for shared entrance gates to a large number of residences.

Built in obstacle detection

This equipment features built in obstacle detection. Implemented correctly this can stop and reverse upon detection of an obstacle. Obstacles are detected when the gate experiences an increase in resistance that can be caused by a person a vehicle an object or even wind obstructing the path of the gate. Although this safety feature can be very effective. It is strongly advised that all installations undergo an impact force test to ensure the safety of anyone who may come in to contact with the gate. Further safety can be added with the addition of safety edges.

CAME Cloud Technology

Enjoy all the functionality of your CAME devices using a cloud based service. Monitor your video entry system from wherever you are via the internet. On smartphone you can receive audio/video calls from your entry panel and open your gate remotely using the XIP mobile app. Available on the App Store and Google Play.

CAME RIO Total Wireless Safety

RIO System needs no hard wiring between the control unit and safety accessories speeding up installation time.This is ideal for bringing any existing system up to code. The control unit is linked to the operators control panel while the other modules communicate with the unit via radio.

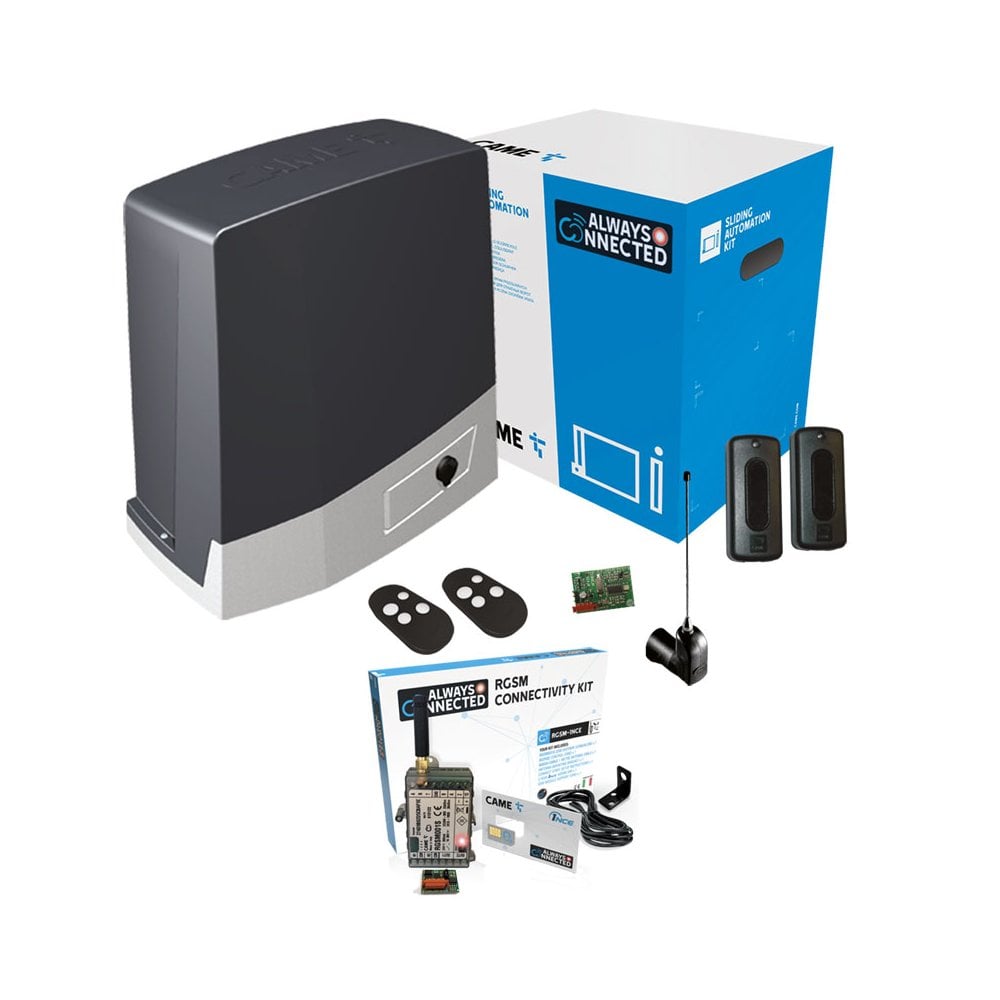

Kit includes
Quantity Item
1 CAME BKV15AGE 36v motor
1 CAME AF43S Frequency Card
1 CAME DIR20 Pair of Safety Photocells
2 CAME TOPD4RKS Four Channel Black Radio Remote's - 806TS-0122
1 CAME TOP-A433N Antenna

Gate Type Sliding Gate

Single Or Twin Kit Single Gate

Kit Max Weight Per Gate 1500kg

Motor Electromechanical

Locking Method Mechanically Locking Motor

Power Supply Voltage 230v

Motor Voltage 36v

Gate Speed 12 M/Min

Duty Cycle Continuous, Intensive

Protection Rating IP 54

Category Sliding Gate Kit
