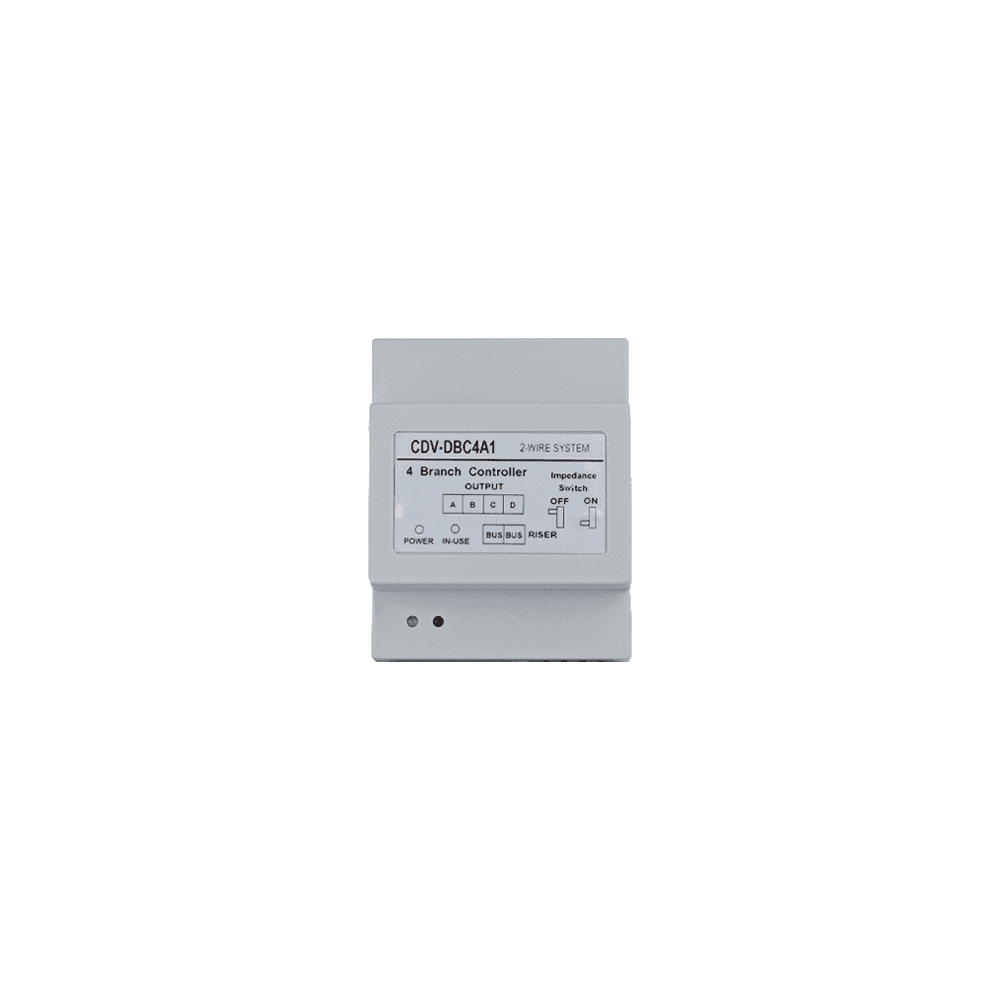

CDVI BUS Distribution Unit CDV-DBC4A

BUS distribution unit.

Required for additional door stations or monitor / handsets.

Each CDV-DBC4A serves 4 devices.

Used in conjunction with 2 wire systems, the CDV-DBC4A Bus splitter is used in creating star configurations with up to four-door entry panels or monitors. Configuration is simply done via adjusting the DIP switches.

The splitter has two LEDs for a status indication for example when it is receiving signal and power./p>

Features:

• 4 outputs
• 2 entrance switching relay

Technical Specifications:

• Wiring: 2 wires (non-polarity)
• Power Supply: 20-30Vdc
• Environment: -10C to +40C

Dimensions:

• 89 x 71 x 45mm (hwd mm)
