Manufacturer: DEA

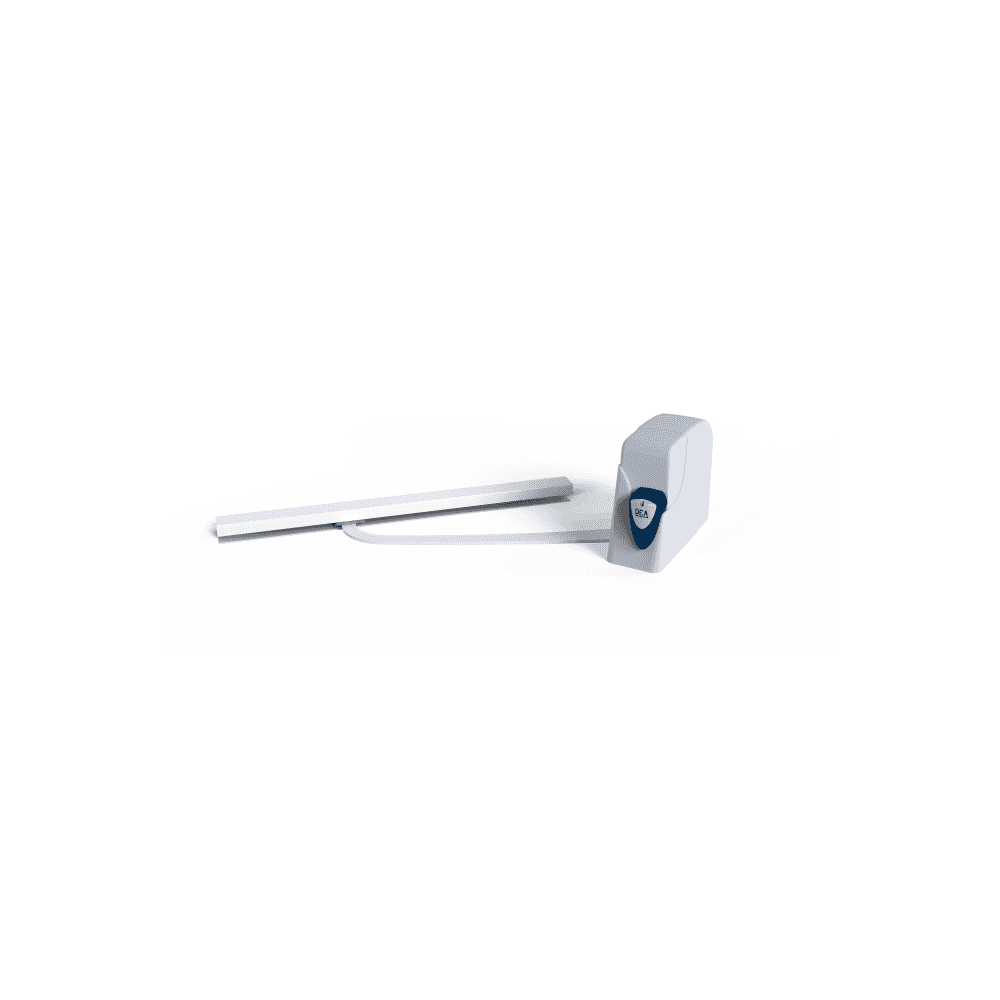

DEA ANGOLO - 24V Electromechanical operator for swing gates up to 2,3 m - 200 kg (ANGOLO24NET/1)

DEA ANGOLO - 24V Electromechanical operator for swing gates up to 2,3 m - 200 kg (ANGOLO24NET/1)

SKU:

Regular price £663.41
Regular price Sale price £663.41
Sale Sold out
Tax included.

ANGOLO - 24V Electromechanical operator for swing gates up to 2,3 m - 200 kg (ANGOLO24NET/1)

The ANGOLO electromechanical automation moves swing gates leaves for residential use up to 2.3 metres long and weighing up to 200 kg.

MOTORS WITH AN ANGLED OR SLIDE ARM? THE RIGHT SOLUTION FOR EACH SPACE

The ANGOLO arm automation motorizes swing gates of limited weight and dimensions for residential use.

The strength of this motor is its small size. Just over 11 cm wide, ANGOLO meets the needs of those who want to automate a swing gate but has little space for installation.

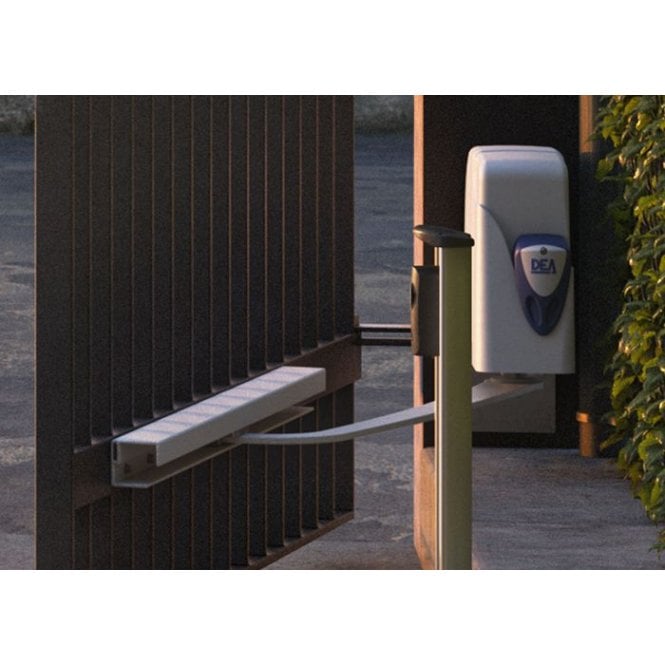

When combined with the slide arm, the motor further optimises the available space. During the opening and closing movement of the leaf, the arm remains inside the track and does not exceed the width of the motor. When manoeuvring spaces are particularly reduced, e.g. in the presence of perimeter walls or private property adjacent to the gate, motors with a slide arm are the ideal choice.

EXCELLENT MATERIALS

The ANGOLO swing gate motor, like LIVI 502 and GEKO, is robust because we use solid materials, resistant to mechanical and time wear, such as iron and bronze used for internal mechanisms. A guarantee of quality that never lets you down.

IS THE POWER OUT? UNLOCK YOUR GATE MANUALLY

What if a sudden blackout blocks the gate? In case of power failure, it is possible to enter or exit by quickly unlocking the automation mechanism and opening the passage opened manually; this can be done either with the metal key provided or, even from the outside, thanks to BLINDOS.

SAFE AND RELIABLE IN ANY SITUATION

ANGOLO is a safe electromechanical automation for swing gates because it is equipped with a speed and slowdown regulation system for opening and closing. In addition to external safety accessories such as photocells and safety edges, the motor is equipped with an anti-crush sensor.

CONTROL THE GATE WITH YOUR SMARTPHONE

Thanks to the APP DEAuser, you can use your smartphone to open your gate without the need for keys or remotes. Moreover, if you have also installed NET-COM with data SIM, you can check the automation status even when you are in the office or away from home.

SPECIFICATIONS

TECHNICAL INFO ANGOLO 24NET
Motor power supply (V) 24V
Maximum power absorption (W) 60
Max torque (Nm) 120
Duty cycle (cycles/hours) 25
N. max cycles in 24h. 60
Operating temperature (°C) -20 ÷ 50
90° Opening time (s) 15
Weight with packing (Kg) 12,5
Sound pressure (dBA) < 70
Protection level IP44



PRODUCT GUIDE

CODE  PRODUCT   USE INTENSITY

 CONTROL BOARD

(included)

OTHER CHARACTERISTICS
626300  ANGOLO24NET/1  Residential NET24N

• 1 operator

• Anti-crushing safety device

• Speed adjustment and slow down in opening and closing

For all models: arm and mounting plate not included. 1 control board included NET24N.
