Manufacturer: DEA

DEA LIVI Kit for Residential Sliding Gates up to 900 kg (230V or 24V)

Name: DEA LIVI Kit for Residential Sliding Gates up to 900 kg (230V or 24V)
Brand: DEA
SKU: KIT LIVI*
Price: 806.0 GBP
Availability: InStock

SKU:KIT LIVI*

£806.00

Sale Sold out

Tax included.

Product variants

Quantity

DEA LIVI Kit for Residential Sliding Gates up to 900 kg (230V or 24V)

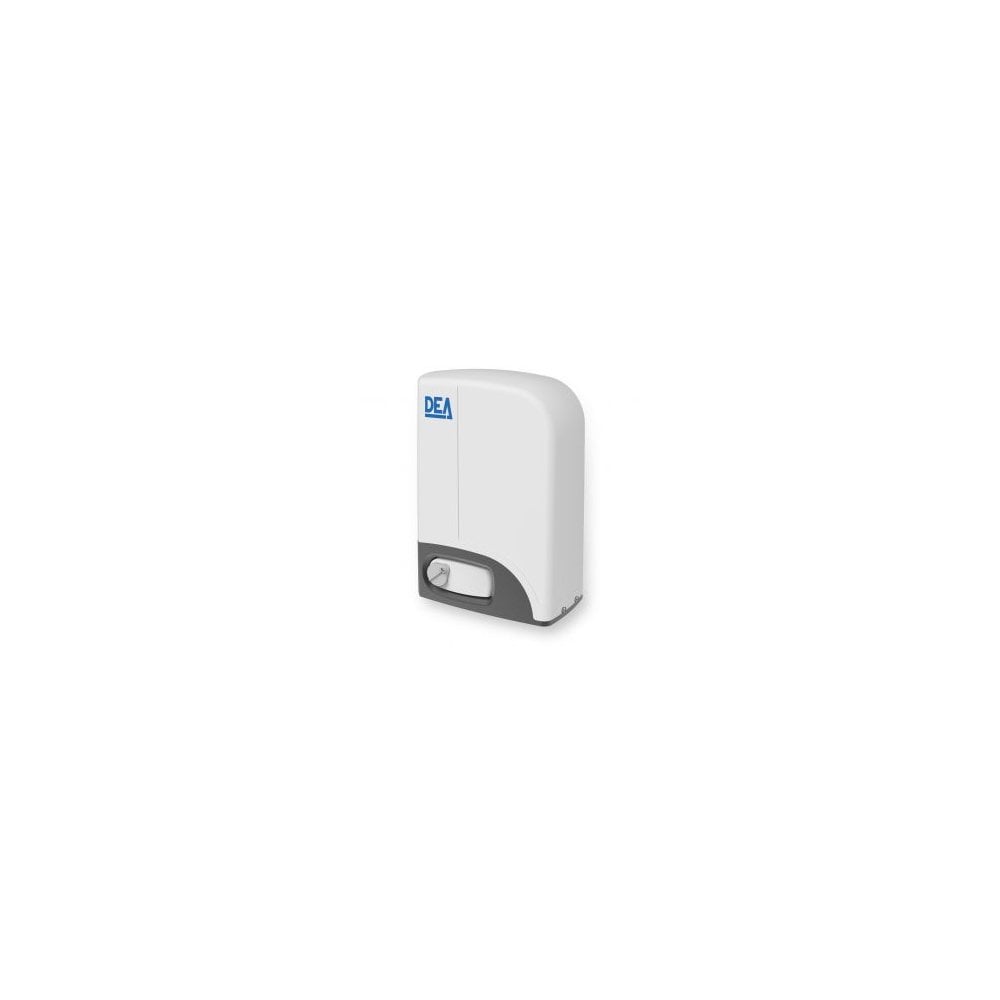

The LIVI/N automation kit for sliding gates is intended for moving residential gates weighing up to 900 kg.

EXCELLENT MATERIALS

The LIVI/N motor for sliding gates, like REV and GULLIVER, is robust because we use solid materials, resistant to mechanical and time wear, such as the metal gears and the aluminium base. A guarantee of quality that never lets you down.

SAFE AND RELIABLE IN ANY SITUATION

LIVI/N is a precise and safe automation for sliding gates because it is equipped with a movement reading system which uses a digital encoder. The card controls the movement of the gate, detects the presence of obstacles and, when it finds them, reverses the direction of travel. In addition to external safety accessories, such as photocells and safety edges, the encoder makes the gate even more reliable.

IS THE POWER OUT? YOUR GATE WON’T STOP

What if a sudden blackout blocks your gate? In the 24V version, LIVI/N is battery powered. In case of power failure, the gate will continue to operate as if nothing had happened. Moreover, to enter and exit it is possible to unlock the automation mechanism and open the passage manually; this can be done either from the inside with the special key provided or even from the outside thanks to BLINDOS. With LIVI/N you will never be locked in or out of the house.

CONTROL THE GATE WITH YOUR SMARTPHONE

Thanks to the APP DEAuser, you can use your smartphone to open your gate without the need for keys or remotes. Moreover, if you have also installed NET-COM with data SIM, you can check the automation status even when you are in the office or away from home.

SPECIFICATIONS

TECHNICAL INFO	LIVI 6N	LIVI 9N	LIVI 6/24N/F	LIVI 6/24N/F-BOOST	LIVI 9/24N/F
Motor power supply (V)	230V ~ ±10% (50/60 Hz)		24V
Maximum power absorption (W)	320	450	80		110
Max thrust (N)	340	490	210	240	260
Duty cycle (cycles/h)*	18	11	22		18
N. max. cycles in 24h*	60	40	60		40
Built-in capacitor (μF)	8	12,5	/
Operating temperature (°C)	-20 ÷ 50
Motor thermal protection (°C)	140	160	/
Speed (m/min)	10			16	10
Standard pinion	Z16	Z16	Z16	Z16	Z16
Weight with packing (Kg)	11	12,5	12
Sound pressure (dBA)	< 70
Protection level	IPX4 (IP44 for versions with magnetic limit switches)

* For a 5m leaf length

PRODUCT GUIDE FOR OPERATORS

CODE	PRODUCT	POWER SUPPLY	MAX GATE WEIGHT (kg)	USE INTENSITY	ENCODER	LIMIT SWITCHES	CONTROL BOARD	OTHER CHARACTERISTICS
614700	LIVI 6N	230V	600	Residential	Yes	Electromechanical	NET230N	• Irreversible with limit switches • Speed adjustment and slow down in opening and closing • Motor control by encoder and obstacle detection • Anti-crushing safety device
615700	LIVI 9N	230V	900	Residential	Yes	Electromechanical	NET230N
614750	LIVI 6/24N/F	24V	600	Residential	No	Electromechanical	NET24N	• Irreversible with limit switches • Speed adjustment and slow down in opening and closing • Anti-crushing safety device • Versions with increased speed only in BOOST models (16m/min)
614751	LIVI 6/24N/F-BOOST (16m/min)	24V	600	Residential	No	Electromechanical	NET24N
615750	LIVI 9/24N/F	24V	900	Residential	No	Electromechanical	NET24N

All models have: control board and fixing plate (to be screwed) included

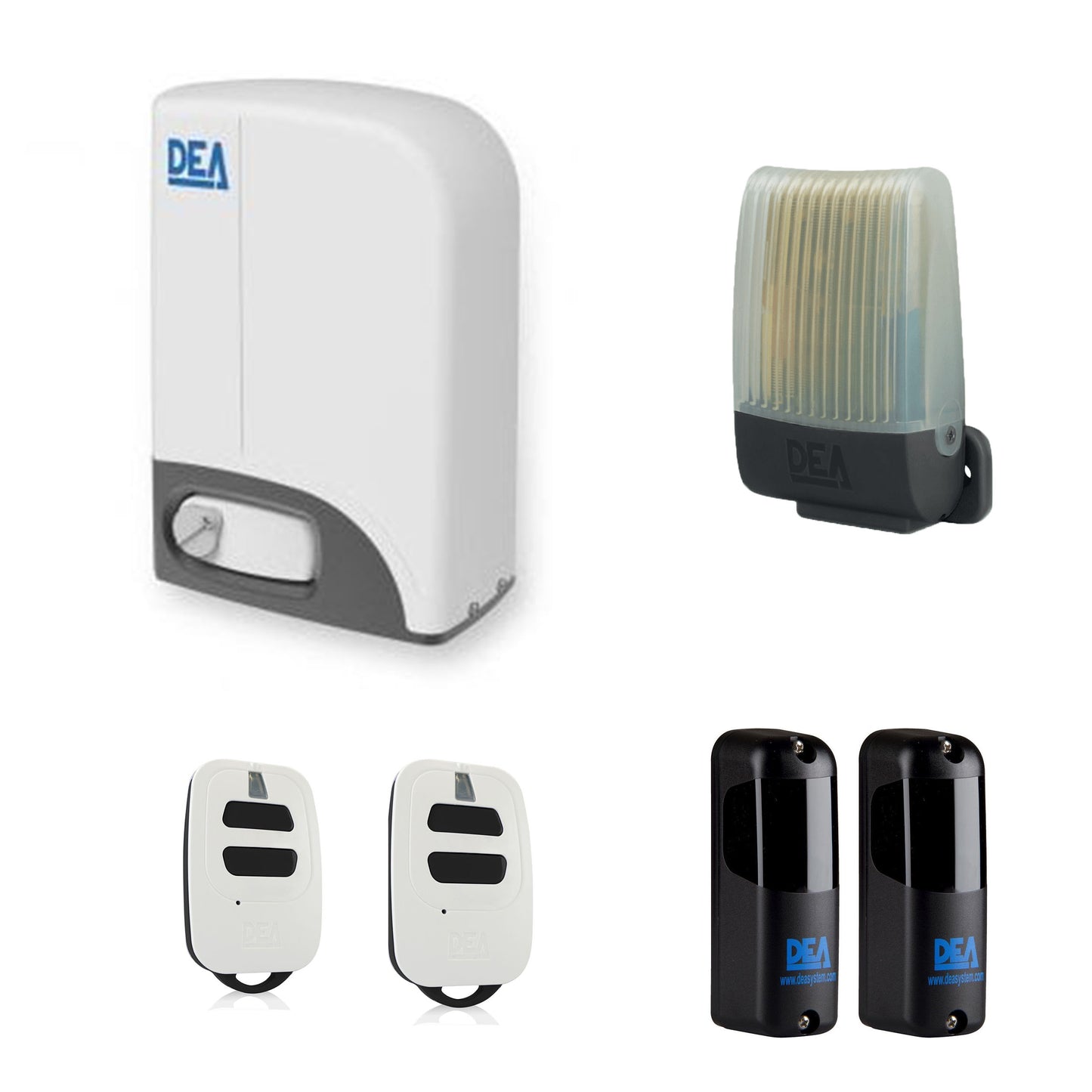

KIT CONTAINS

QUANTITY	KIT LIVI 6N	KIT LIVI 9N	KIT LIVI 6/24N/F	KIT LIVI 6/24N/F-BOOST	KIT LIVI 9/24N/F
1	LIVI 6N (NET230N)	LIVI 9N (NET230N)	LIVI 6/24N/F (NET24N)	LIVI 6/24N/F-BOOST (NET24N)	LIVI 9/24N/F (NET24N)

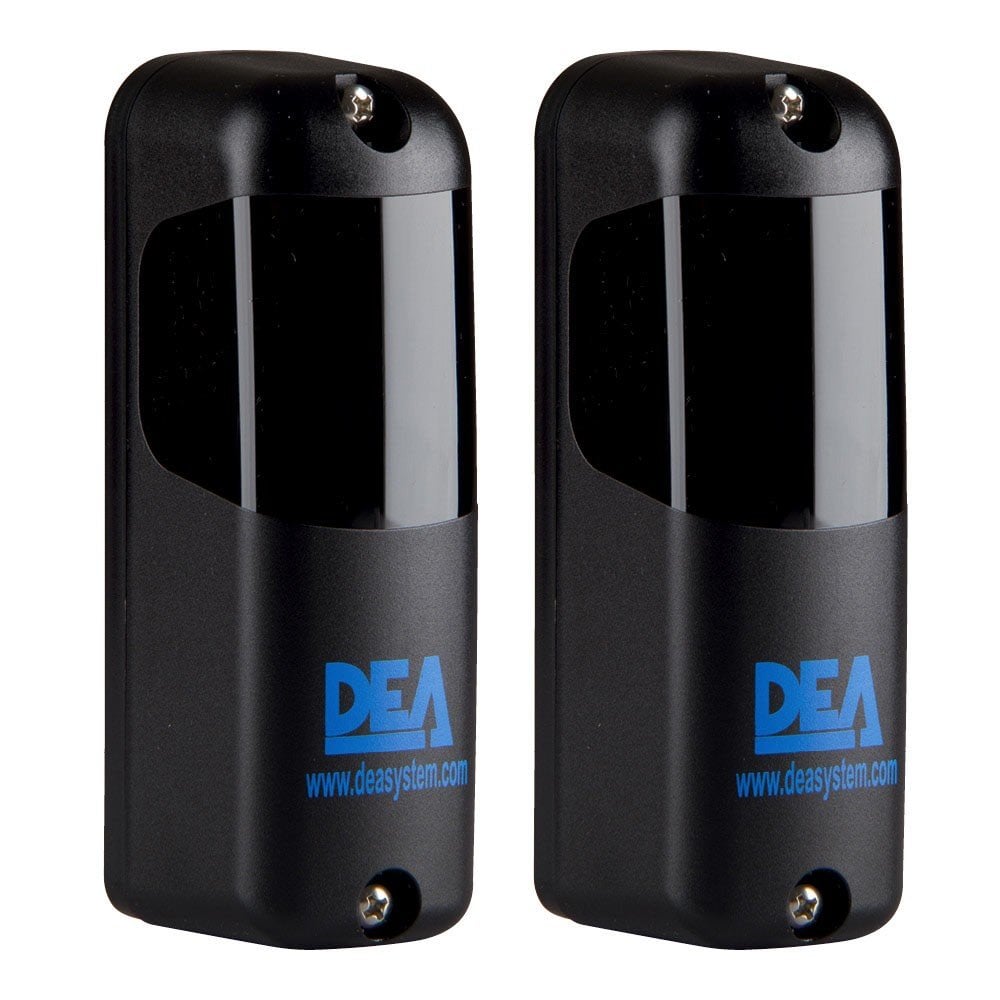

1	LINEAR (pair)	LINEAR (pair)	LINEAR (pair)	LINEAR (pair)	LINEAR (pair)

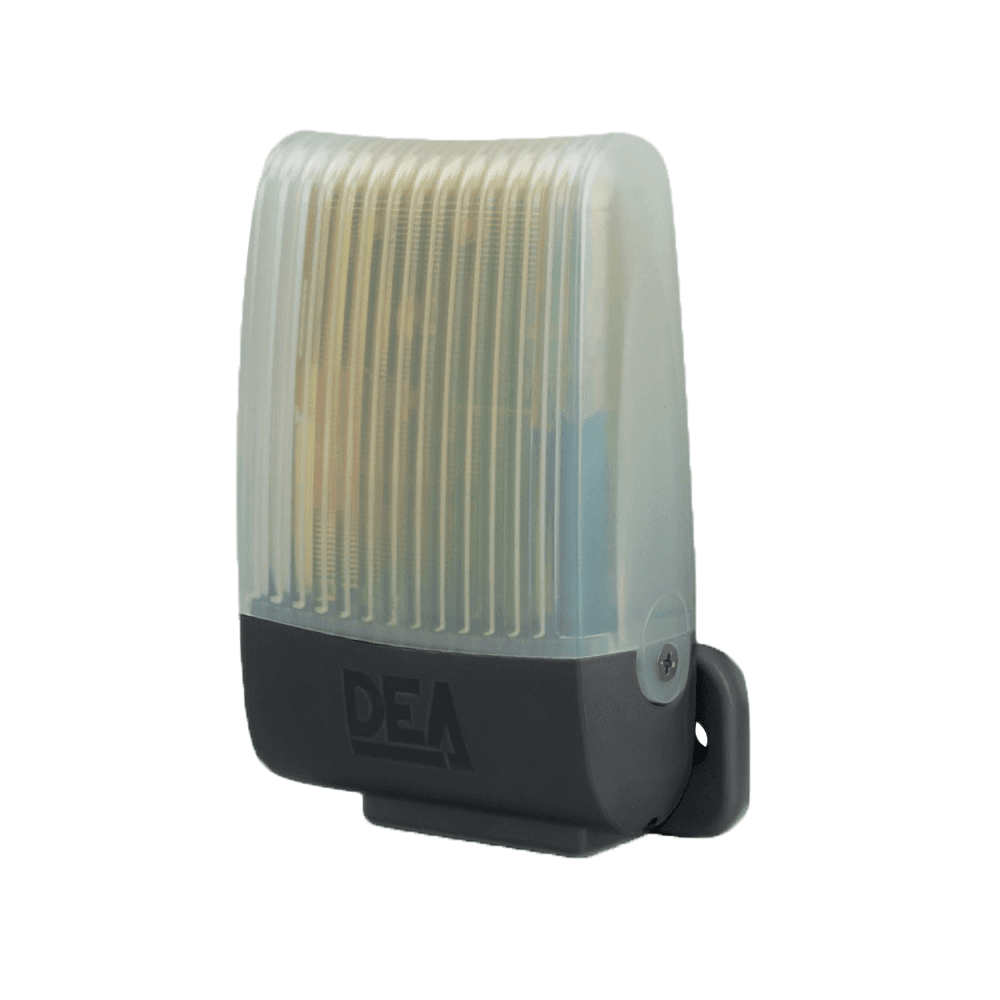

1	AURA/N	AURA/N	AURA/N	AURA/N	AURA/N

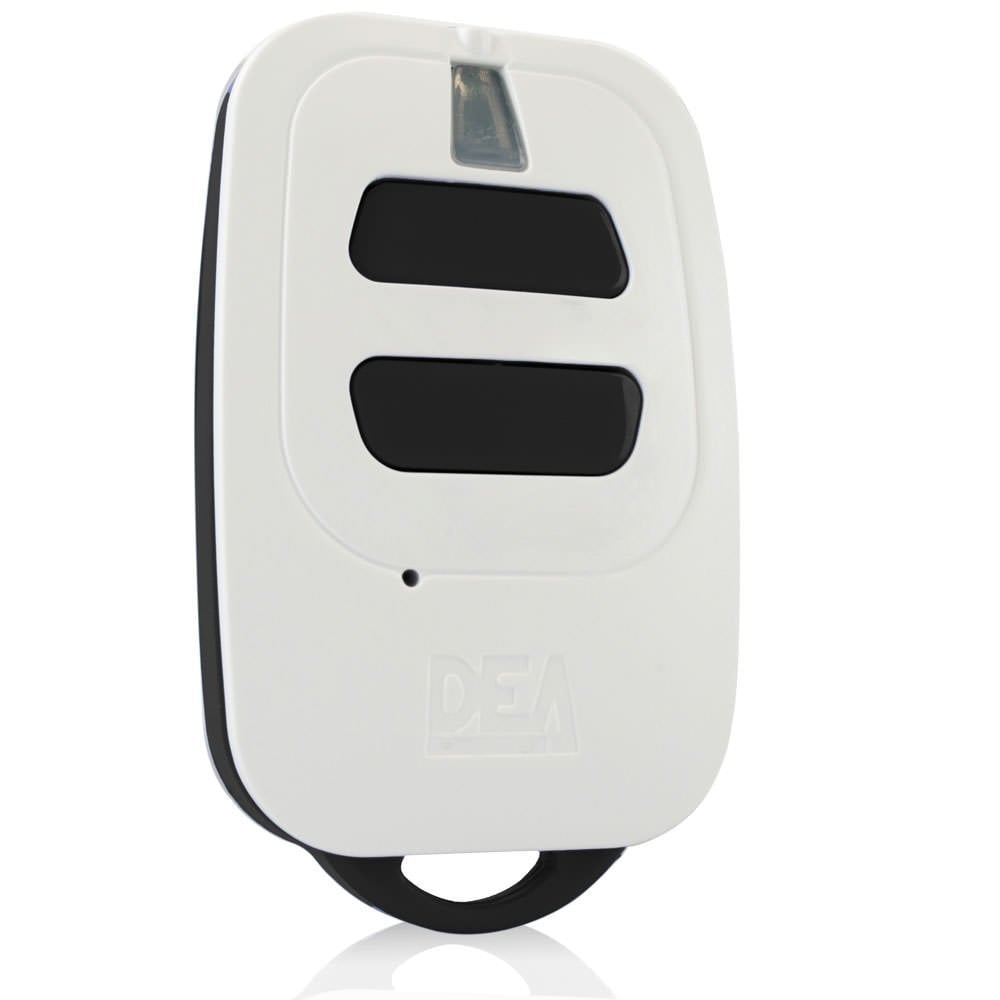

2	GTI2	GTI2	GTI2	GTI2	GTI2
1	127	127	127	127	127
