Manufacturer: DEA
DEA LOOK Kit for swing gates up to 3 meters
DEA LOOK Kit for swing gates up to 3 meters
SKU:
Regular price
£1,050.00
Regular price
Sale price
£1,050.00
Unit price
/
per
Tax included.
Couldn't load pickup availability
Description
DEA LOOK Kit for swing gates up to 3 meters
This LOOK kit for swing gates moves leaves up to 3 metres in length.
LOOK has a new design. Stainless steel telescopic piston guarantees high resistance against corrosion. It's for usage on doors that open 110°. In case of power failure unlock device with plastic key. Kit content is stated bellow.

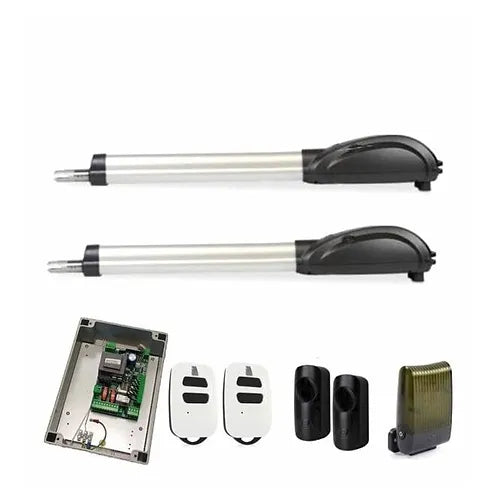

Kit Contains
| KIT 351NET | KIT 371NET | ||||
| Quantity | Item | Description | Quantity | Item | Description |
| 2 | 351/SC | 230V LOOK operator | 2 | 371/SC | 230V LOOK operator |
| 1 | NET230N/C | Universal digital control board for 1 or 2 operators, 230V with or without magnetic encoder (with box) | 1 | NET24N/C | Universal digital control board for 1 or 2 operators, 24V with or without magnetic encoder (with box) |
| 1 | LINEAR | Pair of adjustable photocells (180°) with possibility of syncronized operating. Range 20m (40xh125x46mm) | 1 | LINEAR | Pair of adjustable photocells (180°) with possibility of syncronized operating. Range 20m (40xh125x46mm) |
| 1 | AURA/N | LED flashing light, multi-voltage 24V AC-DC/120V AC/230V AC, with integrated antenna 433MHz/868MHz | 1 | AURA/N | LED flashing light, multi-voltage 24V AC-DC/120V AC/230V AC, with integrated antenna 433MHz/868MHz |
| 2 | GTI2 | Serialized in sequence, white 2-channel remote control, 433 MHz, with 3 coding: HCS Rolling-Code, Dip-Switch and new DART coding | 2 | GTI2 | Serialized in sequence, white 2-channel remote control, 433 MHz, with 3 coding: HCS Rolling-Code, Dip-Switch and new DART coding |
| 1 | 127 | Warning sign | 1 | 127 | Warning sign |
Operator Info
| CODE | Article | Motor power supply | Use intensity | Stroke | Encoder | Electromechanical limit switches | OTHER CHARACTERISTICS |
| 627000 | 351/SC | 230V | Residential | 320mm |
NO |
NO | • For leafs up to 3m length |
| 627090 | 371/SC | 24V | Semi-intensive | 320mm | NO | NO | • For leafs up to 3m length |
All models have: adjustable fixing plates to be screwed included (art. MLS/SFR), rod cover not included
Control board to complete the installation: control board NET230N/C (with box) or NET24N/C (with box)
Specification
| TECHNICAL INFO | 351/SC | 371/SC |
| Motor power supply (V) | 230V ~ ± 10 % (50/60 Hz) | 24V |
| Maximum power absorption (W) | 300 | 60 |
| Max thrust (N) | 1650 | 1000 |
| Time with total stroke (s) | 20 | 21 |
| 90° Opening time (s)* | 16 | 15 |
| Duty cycle (cycles/hours) | 22 - 25 (vers. 351EN) | 40 |
| N. max cycles in 24h. | 110 | |
| Built-in capacitor (μF) | 8 | / |
| Operating temperature (°C) | -20 ÷ 50 | |
| Motor thermal protection (°C) | 150 | / |
| Weight with packing (Kg) | 9 | 9 |
| Sound pressure (dBA) | < 70 | |
| Protection level | IP24 |
*the opening time of the leaf at 90° may be lower accordingly to the geometry of the installation
