DEA PACK ANGOLO - 24V Electromechanical kit for swing gates up to 2,3 m - 200 kg (ANGOLO24NET/1)
DEA PACK ANGOLO - 24V Electromechanical kit for swing gates up to 2,3 m - 200 kg (ANGOLO24NET/1)
PACK ANGOLO - 24V Electromechanical kit for swing gates up to 2,3 m - 200 kg (ANGOLO24NET/1)
The ANGOLO electromechanical automation kit moves swing gates leaves for residential use up to 2.3 metres long and weighing up to 200 kg.
MOTORS WITH AN ANGLED OR SLIDE ARM? THE RIGHT SOLUTION FOR EACH SPACE
The ANGOLO arm automation motorizes swing gates of limited weight and dimensions for residential use.
The strength of this motor is its small size. Just over 11 cm wide, ANGOLO meets the needs of those who want to automate a swing gate but has little space for installation.

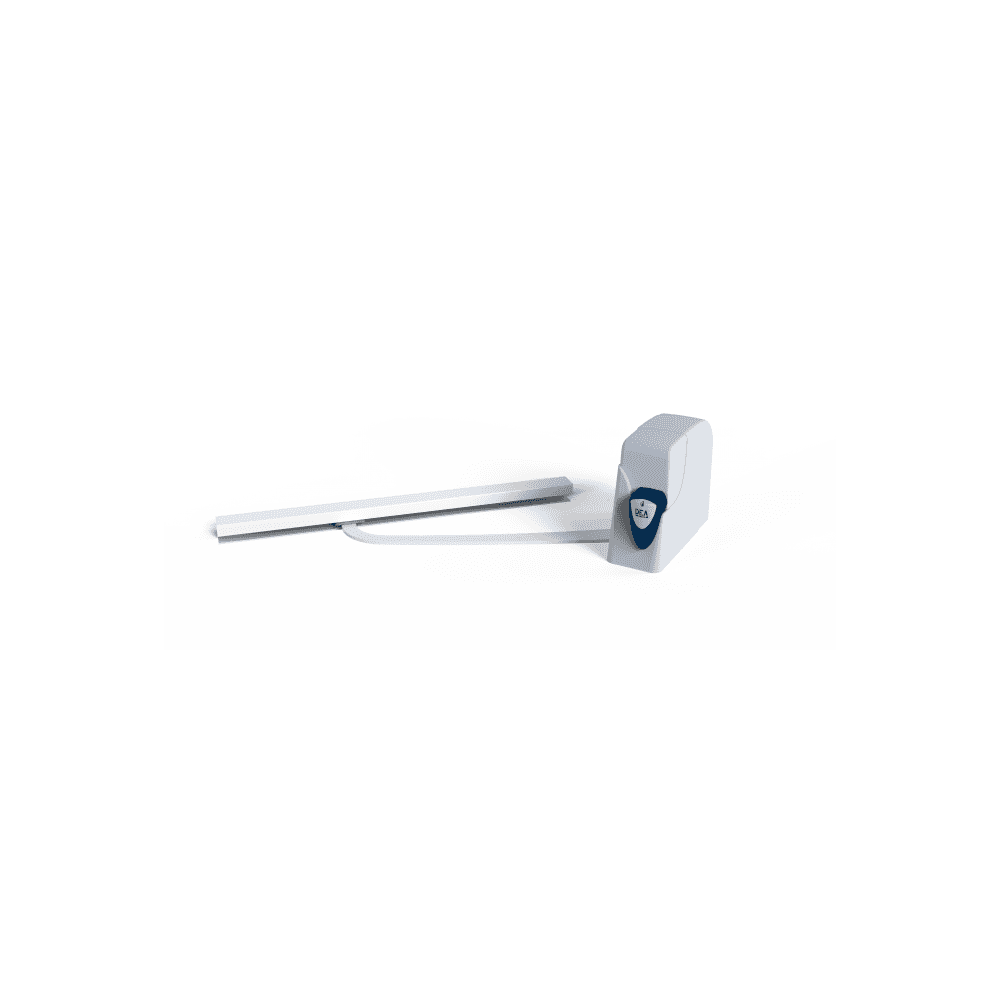

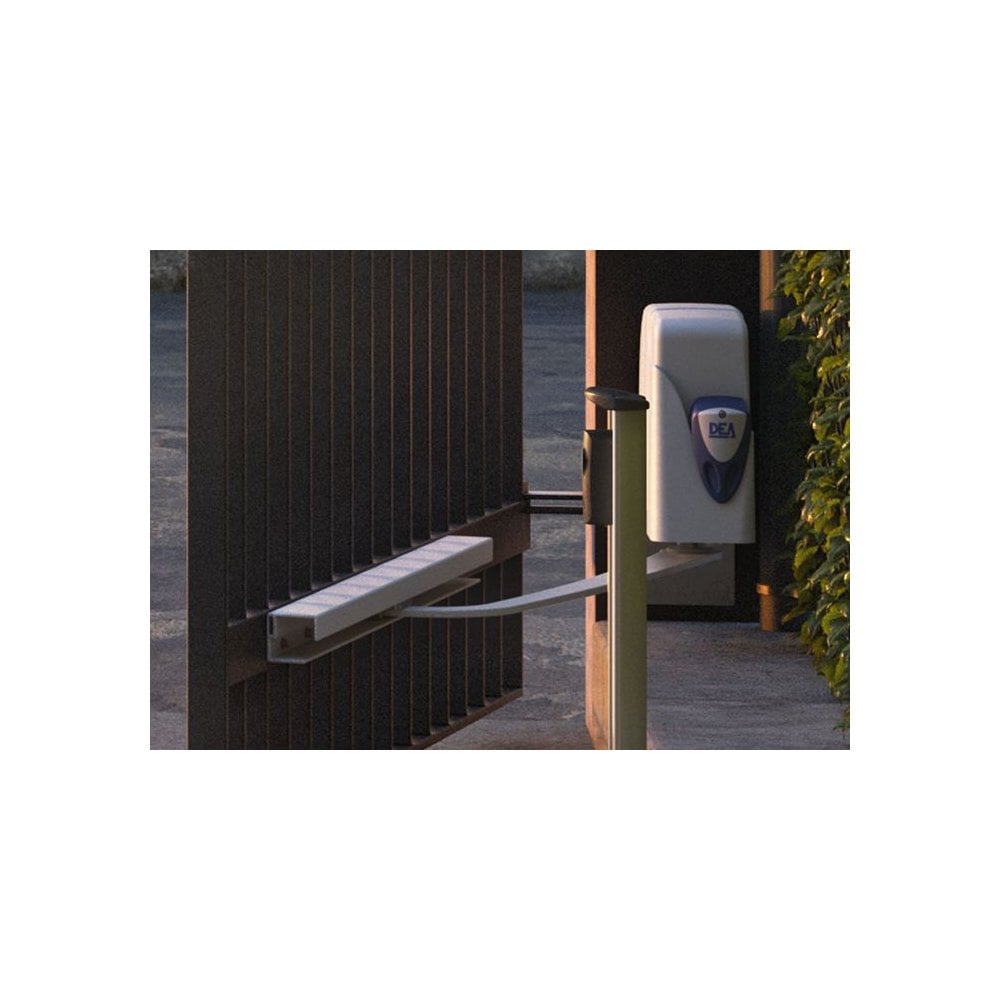

When combined with the slide arm, the motor further optimises the available space. During the opening and closing movement of the leaf, the arm remains inside the track and does not exceed the width of the motor. When manoeuvring spaces are particularly reduced, e.g. in the presence of perimeter walls or private property adjacent to the gate, motors with a slide arm are the ideal choice.
EXCELLENT MATERIALS
The ANGOLO swing gate motor, like LIVI 502 and GEKO, is robust because we use solid materials, resistant to mechanical and time wear, such as iron and bronze used for internal mechanisms. A guarantee of quality that never lets you down.
IS THE POWER OUT? UNLOCK YOUR GATE MANUALLY
What if a sudden blackout blocks the gate? In case of power failure, it is possible to enter or exit by quickly unlocking the automation mechanism and opening the passage opened manually; this can be done either with the metal key provided or, even from the outside, thanks to BLINDOS.
SAFE AND RELIABLE IN ANY SITUATION
ANGOLO is a safe electromechanical automation for swing gates because it is equipped with a speed and slowdown regulation system for opening and closing. In addition to external safety accessories such as photocells and safety edges, the motor is equipped with an anti-crush sensor.
CONTROL THE GATE WITH YOUR SMARTPHONE
Thanks to the APP DEAuser, you can use your smartphone to open your gate without the need for keys or remotes. Moreover, if you have also installed NET-COM with data SIM, you can check the automation status even when you are in the office or away from home.
SPECIFICATIONS
TECHNICAL INFO | ANGOLO 24NET |
Motor power supply (V) | 24V |
Maximum power absorption (W) | 60 |
Max torque (Nm) | 120 |
Duty cycle (cycles/hours) | 25 |
N. max cycles in 24h. | 60 |
Operating temperature (°C) | -20 ÷ 50 |
90° Opening time (s) | 15 |
Weight with packing (Kg) | 12,5 |
Sound pressure (dBA) | < 70 |
Protection level | IP44 |
OPERATOR INFORMATION
CODE | PRODUCT | USE INTENSITY |
CONTROL BOARD (included) |
OTHER CHARACTERISTICS |
626300 | ANGOLO24NET/1 | Residential | NET24N |
• 1 operator • Anti-crushing safety device • Speed adjustment and slow down in opening and closing |
KIT INCLUDES
QUANTITY | ITEM |
1 | ANGOLO24NET/1 (NET24N) |
1 | ANGOLO (without control board) |
2 | 580V |
1 | LINEAR (pair) |
1 | AURA/N |
2 | GTI4 |
Warning: Arm not included - see ACCESSORIES.
ACCESSORIES (click to open)
- Unlocking device (580M) to be used with aluminium safety enclosure (BLINDOS)
- Articulated arm (GEKO/BA, GEKO/BS)
- Photocells (LINEAR/XS) and pillars (PILLY/60, PILLY/120)
- Remotes (GTI2)
- Fixing plate (580L/580V)
- NETLINK devices (NET-NODE 2.0, NET-COM, NET-BOX)
