ROCK Hydraulic Retractable Bollard - Height 700mm / Ø 275mm (230V)

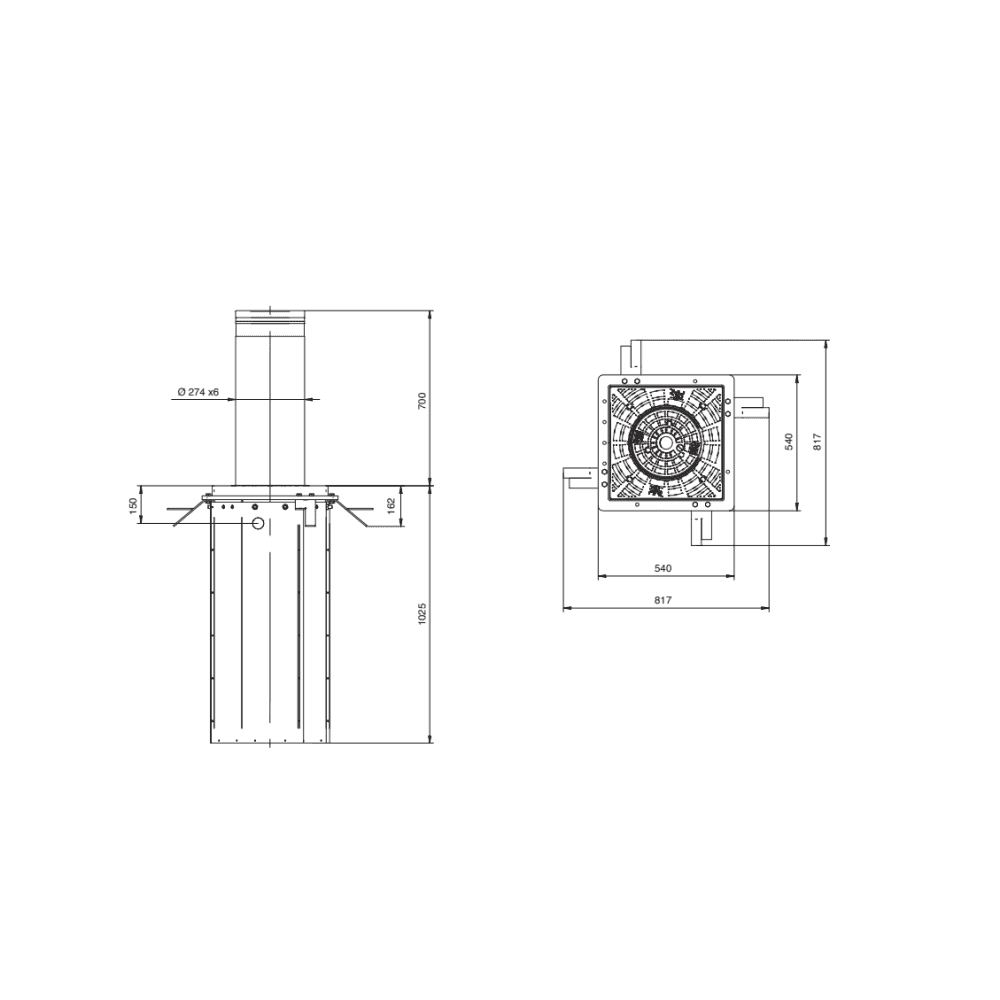

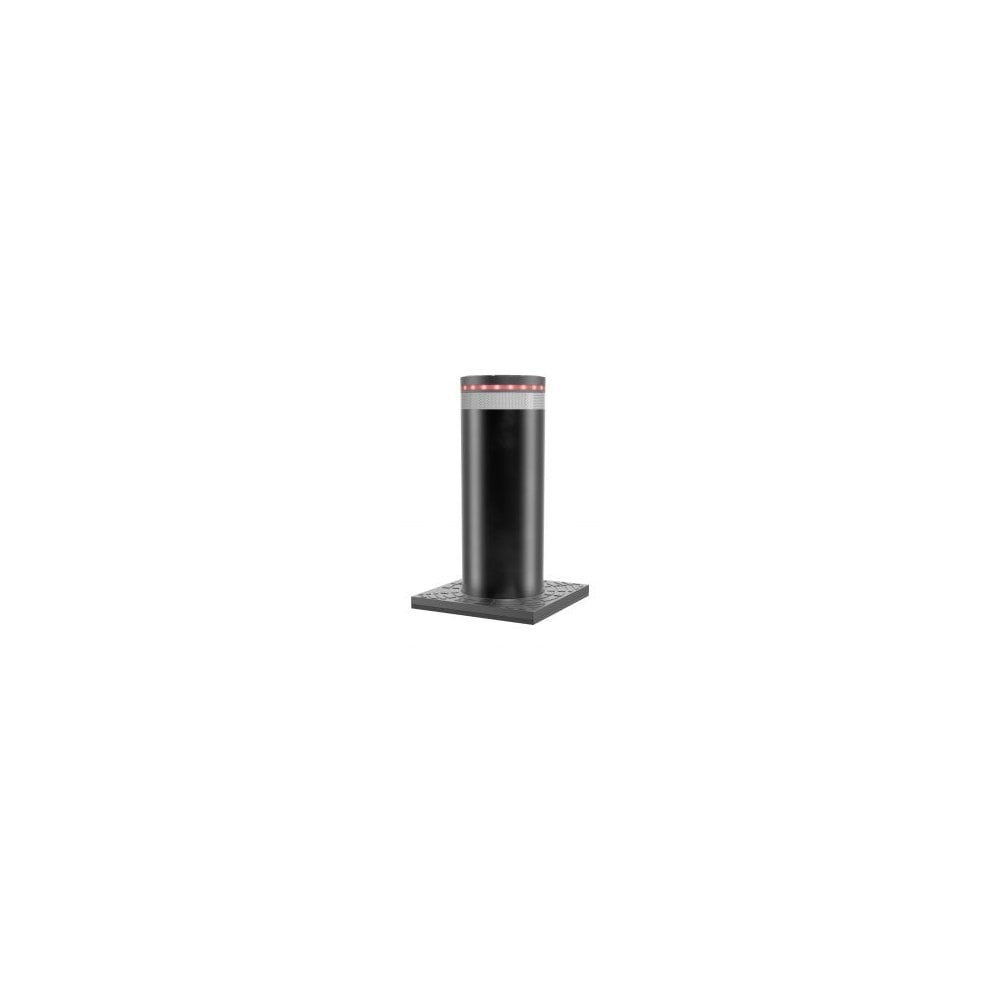

ROCK is a hydraulic retractable bollard with linear guide system with chrome-plated steel cylinders. The shaft above ground is 700 mm high and the concrete base is provided without reinforcement. It has a break-through resistance up to 138kJ.
GREATER PROTECTION FOR SENSITIVE AREAS

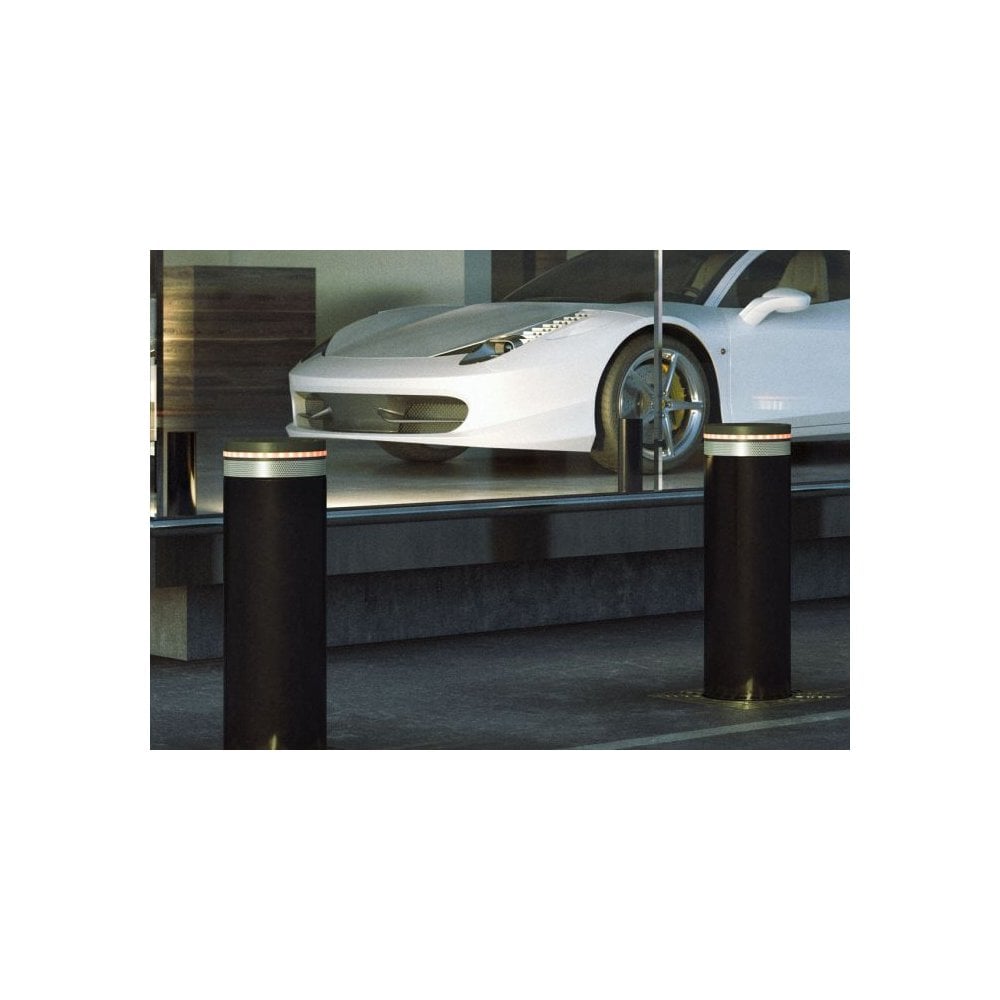

ROCK is a perimeter protection device for sensitive areas. It is effective as an access block in pedestrian areas, as well as an excellent solution to defend passageways where the gate is not present or is present but could be broken through.
IMPACT RESISTANT AND NOT ONLY
The ROCK bollard is not only breakthrough resistant up to 138kJ, but is also weather resistant. This is because its extractable part undergoes a double treatment: anti-corrosion cataphoresis and polyester powder coating.
BRIGHTER, SAFER

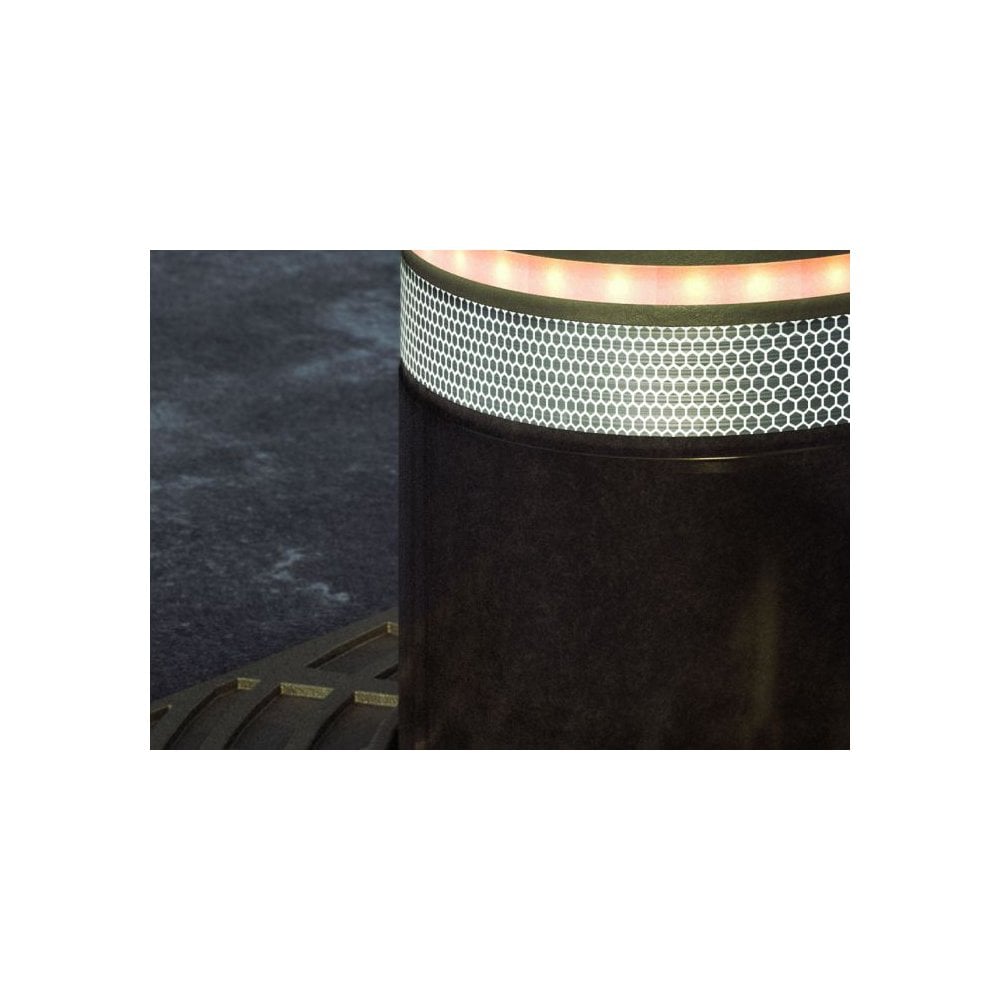

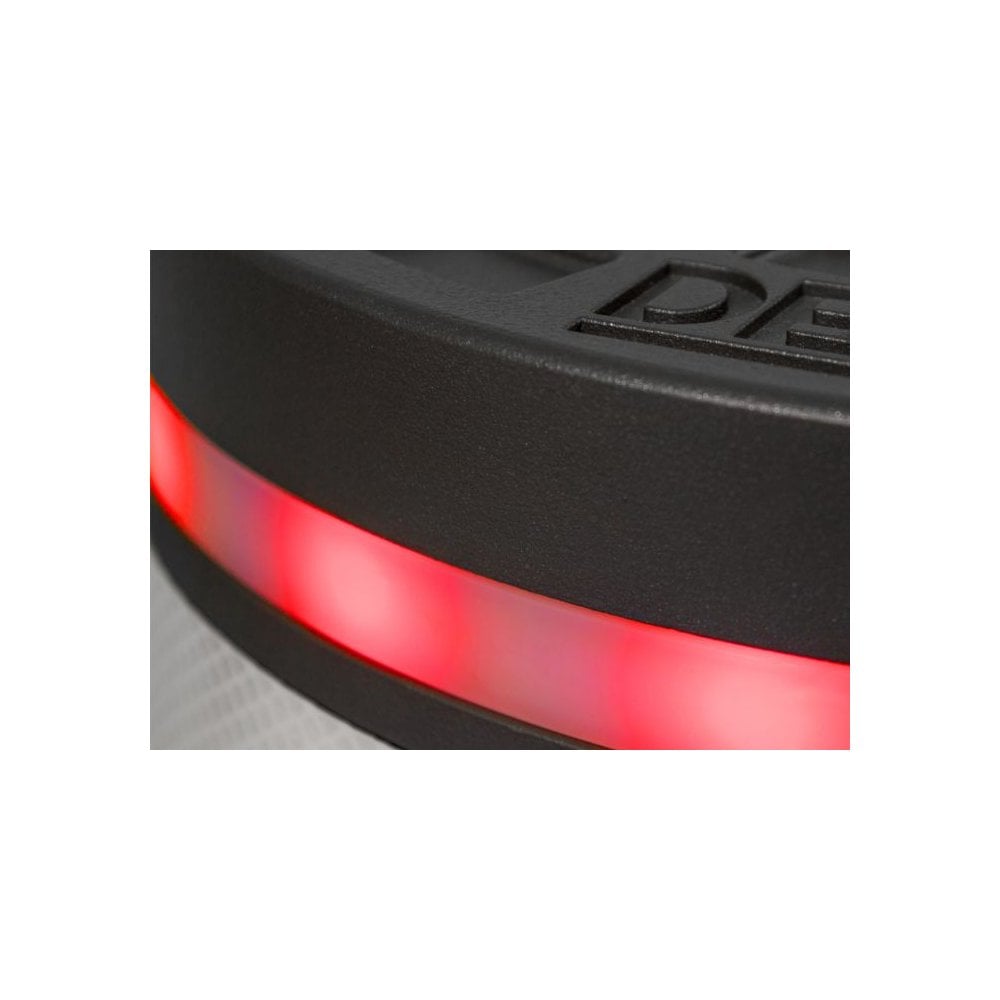

The upper part of ROCK is equipped with a reflective band with high luminous efficiency and red led diffusers. This allows you to see the bollard during the night and when visibility is poor.
EASY MAINTENANCE
The hydraulic pump that moves the ROCK is integrated in the removable structure of the bollard. This means that routine maintenance operations can be carried out by the professional quickly and easily, without having to use machines to lift the shaft.
REMOTE CONTROL
Thanks to the DEAuser app, the movement and status of the ROCK bollard can be effectively controlled from your smartphone.
PRODUCT GUIDE
| PRODUCT CODE | PRODUCT | USE INTENSITY | DIAMETER | BOLLARD'S HEIGHT | THICKNESS | OTHER CHARACTERISTICS |
| 651000 | ROCK | Intensive | 275mm | 700mm | 6mm |
|
| 651001 | ROCK/ CABLE | Intensive | 275mm | 700mm | 6mm | |
| 651002 | ROCK/ CABLE/EL* | Intensive | 275mm | 700mm | 6mm |
For ROCK and ROCK/CABLE: framework art. ROCK/B not included
*ROCK/CABLE/EL: art. ROCK/EL V2 included
SPECIFICATIONS
| TECHNICAL INFO | ROCK | ROCK/CABLE | ROCK/CABLE/EL |
| Movement | Hydraulic | ||
| Height | 700mm | ||
| Diameter | Ø274mm (±2mm) | ||
| Material | Steel Fe 360 | ||
| Treatement | Cataphoresis and polyester powder paint, black | ||
| Ascent time | 6 sec | ||
| Descent time | 5 sec | ||
| Quick descent time (with solenoid valve and power failure) | 1,5 sec | ||
| Usage | Intensive | ||
| N. max cycles in 24h. | 2000 (T= 20 ÷ 22°C) - 1000 (+ art. ROCK/EL) | 1000 | |
| Reflective band | 50mm | ||
| Emergency manual manoeuvre | Mechanical unlocking on hydraulic circuit | ||
| Impact resistance | 29KJ with clamps ; 40KJ with armor reinforcement | ||
| Crash resistance | 29KJ with clamps ; 138KJ with armor reinforcement | ||
| Cable for connection | / | 15 m FG16 7x1,5 + 10x0,5 | |
| Operating temperature |
-15°C + 50°C -25°C + 50°C with heater |
||
| Obstacle detection | Adjustable pressure switch | ||
| Product weight | 130 kg | ||
| Hydraulic pump | Power supply 230V+-10% 50/60 Hz | ||
| Power absorption | 400 W | 420 W | |
| Protection level | IP67 | ||
| Capacitor | 12,5 µF | ||
| Motor thermal protection | 130°C | ||
ACCESSORIES (Click to open)
NET control boards (NET230N/C, NET230N/PROBOX)
NET Expansion board (NET-EXPANSION)
