Manufacturer: Hikvisison

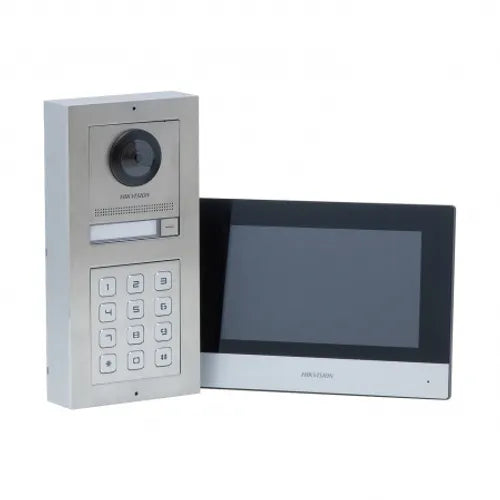

Hikvision 1 button 2 Wire video kit, keypad and 7 inch monitor stainless steel
Hikvision 1 button 2 Wire video kit, keypad and 7 inch monitor stainless steel
Description
This Hikvision stainless steel finish video 2 wire Pro kit includes a keypad with a 7 inch touch screen LCD monitor.
Featuring a 2MP wide angle camera with IR supplement light for night visibility and backlight keys.
Additional Information
The unit is powered from the video/audio distribution module (KAD706) using 2 wire cable which at the same time carries the data making the system very simple to install, and easy to upgrade existing intercom systems.
You can answer calls & open the gate using the indoor 7 inch touch screen and remotely via the hikconnect mobile app or via PC using IVMS-4200.
- Two-pin wire for power supply and network access
- Access control function
- Noise suppression and echo cancellation
- H.264 video compression
- Low illumination
- Tampering alarm
- Fisheye camera with IR supplement light
- Supports sub-modules' access (max. 8)
- Nametag customization
- Power output for electronic lock, max to 12 V, 500 mA
- Input pin code to open door and call indoor station
- Backlight keypad
Technical Specification
- Supplement Light IR supplement
- FOV Horizontal 180° Vertical: 96°
- Pixel Main stream : 1920 × 1080 Sub stream : 720 × 480
- Audio Quality Noise suppression and echo cancellation
- SUB Door station capacity 16
- Network Interface 1
- Exit button interface 2
- Lock control interface 2
- Door contact Input interface 2
- Power Interface 1
- Protective Level IP65
- Working Temperature -40° C to +55° C(-40° F to 131° F)
- Working Humidity 10% to 95%
- Dimensions 98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
- Power Supply 24VDC Two wire power supply or 12VDC Independant power supply
- Application Environment Outdoor
- Power Consumption 4 W
-
KEYPAD TECHNICAL SPECIFICATION
- Operating System Embedded Linux operation system
- CPU Embedded MCU Processor
- RS-485 1
- Power Interface 1
- Buttons 12
- Installation Flush mounting, surface mounting
- Protective Level IP65, IK7
- Working Temperature -40° C to +55° C(-40° F to 131° F)
- Working Humidity1 0% to 95%
- Dimensions 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
- Application Environment Outdoor
- Power Consumption 1 W
-
SURFACE MOUNT BRACKET SPECIFICATION
-
Dimensions
For installation Frame 117 x 107 × 32.7 mm (4.61" x 4.21" x 1.29")
- Cover: 219 × 107 × 4 mm(8.62" × 4.21\" ×0.16\")
-
7 INCH MONITOR TECHNICAL SPECIFICATIONS
-
- ROM 32 MB
- RAM 128 MB
- CPU Embedded processor
- Audio Input Built-in omnidirectional microphone
- Audio Output Built-in loudspeaker
- Audio Compression Bitrate 64 Kps
- Audio Quality Noise suppression and echo cancellation
- Volume Adjustment Adjustable
- Event Capacity 200 captured pictures (with TF card); 200 alarm records - 2 MB RAM (without TF card) reserved for events
- Linked Network Camera Capacity 16
- Linked Indoor Extensions Capacity 5
- Notice Capacity 200
- Linked Door phone Capacity 17 IP door phones Max.
- Alarm Input 8-channel alarm inputs
- RS-485 1
- TF Card Max to 128 G, SD 2.0 or lower version
- Alarm Output 2 relays (30 V Max.)
- Two-Wire IP Interface 1
- Wired Network 10/100 Mbps self-adaptive through 2-wire interface
- Power Supply Method Two-wire
- Power Supply Powered by KAD704Y or KAD706Y series distributor
- Working Temperature -10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity 10% to 90% (no-condensing)
- Wi-Fi Standard Wi-Fi 802.11 b/g/n
- Dimensions (W × H × D) 200 mm × 140 mm × 15.1 mm
- Indicator 9
- Power Supply Method 24 VDC
- Working Temperature -10° C to +50° C(-14° F to 122° F)
- Working Humidity 10% to 90%
- Power Consumption CH1 to CH5<6 W, CH6<16 W
-
KAW60 TECHNICAL SPECIFICATION
- Power Supply 85 to 264 VAC
- Power Consumption 60 W
- Working Temperature -30 °C to 70 °C (-22 °F to 158 °F)
- Working Humidity 20% to 90%
- Output Power 24 VDC
- Dimension (W × H × D) 52.5 mm × 90 mm × 54.5 mm (2.07" × 3.54" × 2.15")
