Manufacturer: Hikvisison

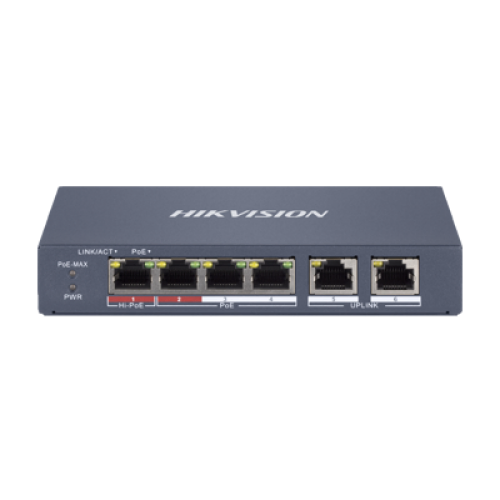

Hikvision 4 Port fast 100Mbps smart managed PoE switch
Hikvision 4 Port fast 100Mbps smart managed PoE switch
SKU:DS-3E1106HP-EI
Couldn't load pickup availability
Description
Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms.
Youcan view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.
Additional Information
Hikvision 4 Port Fast Ethernet Smart POE Switch
- 4 × 100 Mbps PoE RJ45 ports, 2 × 100 Mbps network RJ45 ports
- IEEE 802.3at/af/bt standard for PoE ports
- Network topology management, and alarm push
- 6 KV surge protection for PoE ports
- Up to 300 m long-range transmission
- AF/AT camera can reach up to 300 m in extend mode
Technical Specification
- PORT NUMBERS - 4 × 100 Mbps PoE RJ45 port, and 2 × 100 Mbps network RJ45 ports
- SWITCHING CAPACITY - 1.2Gbps
- PROCESSING TYPE - Store-and-forward switching
- MAC- address table 2 K
- PACKET FORWARDING RATE - 0.8928 Mpps
- INTERNET CACHE - 768 Kbits
- HIGH PRIORITY PORTS - Support data of ports in red area forwarded in priority
- PoE POWER BUDGET - 60W
- WEIGHT - 0.645 kg
- DIMENSIONS (L × H × D) 145 mm × 25.6 mm × 68.45 mm
- OPERATING TEMP - -5˚C to 55˚C (32˚F to 104˚F)
- STORAGE TEMP - –40˚C to 85˚C (–40˚F to 185˚F)
- POWER SUPPLY - 48 VDC，1.35 A
Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms.
Youcan view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.
Hikvision 4 Port Fast Ethernet Smart POE Switch
- 4 × 100 Mbps PoE RJ45 ports, 2 × 100 Mbps network RJ45 ports
- IEEE 802.3at/af/bt standard for PoE ports
- Network topology management, and alarm push
- 6 KV surge protection for PoE ports
- Up to 300 m long-range transmission
- AF/AT camera can reach up to 300 m in extend mode
- PORT NUMBERS - 4 × 100 Mbps PoE RJ45 port, and 2 × 100 Mbps network RJ45 ports
- SWITCHING CAPACITY - 1.2Gbps
- PROCESSING TYPE - Store-and-forward switching
- MAC- address table 2 K
- PACKET FORWARDING RATE - 0.8928 Mpps
- INTERNET CACHE - 768 Kbits
- HIGH PRIORITY PORTS - Support data of ports in red area forwarded in priority
- PoE POWER BUDGET - 60W
- WEIGHT - 0.645 kg
- DIMENSIONS (L × H × D) 145 mm × 25.6 mm × 68.45 mm
- OPERATING TEMP - -5˚C to 55˚C (32˚F to 104˚F)
- STORAGE TEMP - –40˚C to 85˚C (–40˚F to 185˚F)
- POWER SUPPLY - 48 VDC，1.35 A
