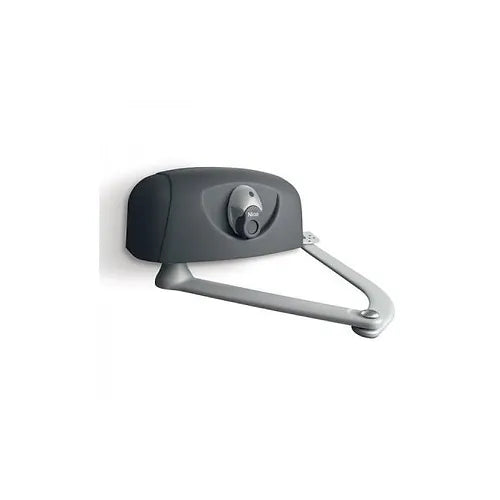

NICE Irreversible Motor HY7024 for Swing Gates with Leaves up to 3m

Description

Above Ground Automation Kits

Hyppo HY7024 For swing gates with leaves up to 3 m, also with large pillars

Irreversible, 24 Vdc, with magnetic encoder, with shear-proof articulated arm, galvanised and painted

Single model for right and left leaves.

Die-cast, aluminium, key-operated unlock system, complete with protected key, designed to accommodate external release.

Sturdy, anti-shearing arm, galvanised and painted, strengthened in those areas subjected to greater mechanical stress.

Additional Information

Motor Voltage: 24v

Max Weight Per Gate: 300kg

Max Opening Angle: 110 degrees

Locking Method: Mechanically Locking Motor

Wire or Wireless: Swing Gate

Motor: Electromechanical

Protection Rating: IP54

Gate Speed: 18 seconds 90 Degrees

Duty Cycle: Semi-intensive

Category: Swing Gate Motor
