Manufacturer: Roger Technology

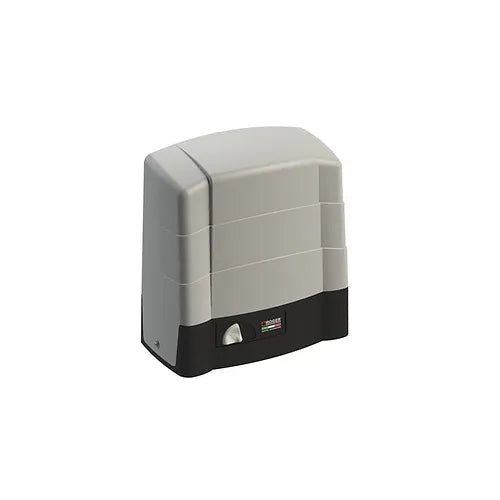

ROGER TECHNOLOGY BG30/1004/HS
ROGER TECHNOLOGY BG30/1004/HS
Description
Roger Technology. Electromechanical Motor 230VAC irreversible ideal for sliding gates up to 600kg with built-in control unit H70, an optical encoder, and mechanical limit switch.
Additional Information
Max Gate Weight: 1000KG
Power Line Supply: 230V AC -50Hz
Motor Power Supply: 36V
Power Rating: 590W
Frequency of Use: Intensive use
Thrust: 50 - 800N
Operating Temperature: -20+55°C
Protection Level: IP43
Reductor Type: Irreversible
Manoeuvre speed: 20 m/min (0.99 m/s)
Limit Switch: Magnetic
Onboard Control Unit: B70/1DCHP
Encoder: Digital Native encoder + magnetic digital sensored, 4096 PPR
Batteries Recovery: Optional 2 external batter 12V 4, 5AH
Type Exit Gear: Z17/mod 4
Operating cycles per day (opening/closing - 24 hours no stop): 800
Maximum dimension product in mm (L x W x H): 346 x 180 x 362
Product weight packed (Kg): 19,6
Number items per pallet: 40
