Manufacturer: Roger Technology

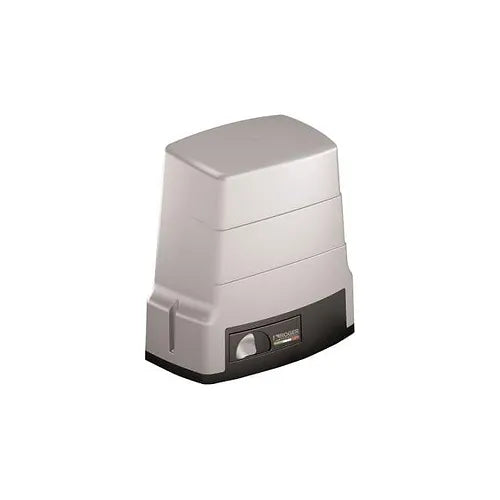

ROGER TECHNOLOGY BH30/803
ROGER TECHNOLOGY BH30/803
Description
Electromechanical BRUSHLESS motor, low voltage, super intensive use, with native encoder onboard, irreversible ideal for sliding gates up to 1000 kg with built-in digital controller B70 series, mechanical limit switch.
Additional Information
Max Gate Weight: 1000KG
Power Line Supply: 230V AC -50Hz
Motor Power Supply: 24V
Power Rating: 200W
Frequency of Use: Intensive use
Thrust: 50 - 1000N
Operating Temperature: -20+55°C
Protection Level: IP43
Reductor Type: Irreversible
Manoeuvre speed: 12 m/min (0.20 m/s)
Limit Switch: Mechanical
Onboard Control Unit: B70/1DC
Encoder: Digital Native encoder + magnetic digital sensored, 4096 PPR
Batteries Recovery: Optional 2 internal batter 12V 1, 2AH/Optional 2 external batter 12V 4, 5AH
Type Exit Gear: Z15/mod 4
Operating cycles per day (opening/closing - 24 hours no stop): 1300
Maximum dimension product in mm (L x W x H): 315 x 165.8 x 329
Product weight packed (Kg): 11,7
Number items per pallet: 44
