Manufacturer: Roger Technology

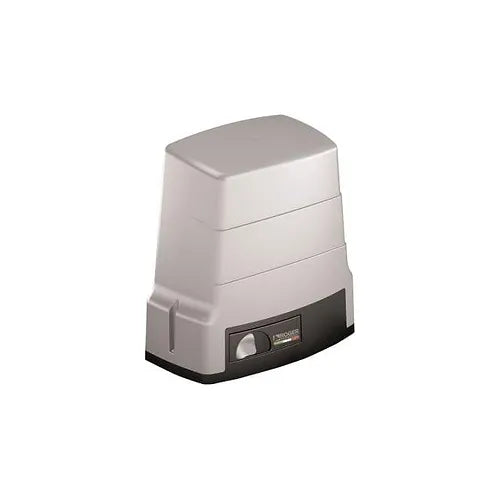

ROGER TECHNOLOGY BH30/804/R
ROGER TECHNOLOGY BH30/804/R
Description
Electromechanical BRUSHLESS motor, low voltage, super intensive use, with native encoder onboard, reversible, ideal for sliding gates up to 800 kg with built-in digital controller B70 series, magnetic limit switch.
Additional Information
Max Gate Weight: 800KG
Power Line Supply: 230V AC -50Hz
Motor Power Supply: 24V
Power Rating: 140W
Frequency of Use: Intensive use
Thrust: 60 - 600N
Operating Temperature: -20+55°C
Protection Level: IP43
Reductor Type: Reversible
Manoeuvre speed: 18 m/min (0.30 m/s)
Limit Switch: Magnetic
Onboard Control Unit: B70/1DC
Encoder: Digital Native encoder + magnetic digital sensored, 4096 PPR
Batteries Recovery: Optional 2 internal batter 12V 1, 2AH/Optional 2 external batter 12V 4, 5AH
Type Exit Gear: Z15/mod 4
Operating cycles per day (opening/closing - 24 hours no stop): 1000
Maximum dimension product in mm (L x W x H): 315 x 168.8 x 329
Product weight packed (Kg): 11,9
Number items per pallet: 44
