Manufacturer: Roger Technology

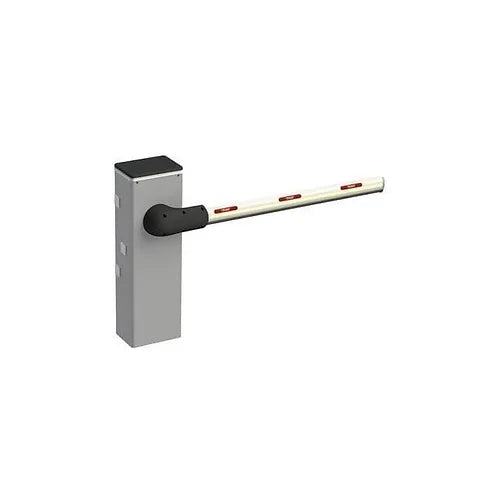

ROGER TECHNOLOGY BI/006 - Bionik Brushless 36V DC - up to 6 meters
ROGER TECHNOLOGY BI/006 - Bionik Brushless 36V DC - up to 6 meters
SKU:BI/006
Couldn't load pickup availability
Description
BI/006 BI/006/IS - Bionik Brushless 36V DC - up to 6 meters - super intensive use - Barrier only with variants
BI/006
Automatic Barrier BRUSHLESS 36V DC super intensive use up to 6 meters, with operator and and built in digital control panel and absolute encoder on board.
This product doesn't include a boom, but these are suitable for usage: BA/90/3, BA/90/4 and BA/90/6 booms. Product requires KT230 fixing plate.
BI/006/IS
Automatic Barrier BRUSHLESS 36V DC super intensive use up to 6 meters, with operator and and built-in digital control panel and absolute encoder on board. Version with housing unit made in brushed stainless steel AISI 304.
This product doesn't include a boom, but these are suitable for usage: BA/90/3, BA/90/4 and BA/90/6 booms. Product requires KT230/IS fixing plate.
Product Information
| BI/006 | BI/006/IS | |
| Barriers: | Up to 6 mt long | |
| Power line supply: | 230V AC - 50 Hz | |
| Motor power supply: | 36V DC | |
| Electrical absorption: | max. 15A | |
| Power rating: | 220W | |
| Frequency of use: | Super intensive use | |
| Torque: | 10 - 300 N m | |
| Operating temperature: | - 20 + 55 C° | |
| Protection level: | IP54 | |
| Reductor Type: | Irreversible | |
| Opening time at 90°: | 4÷8 sec | |
| Onboard control unit: | CTRL Digital Controller 36V DC | |
| Encoder: | Digital native encoder + magnetic digital SENSORED, 4096 PPR | |
| Accessories power supply: | 24V DC | |
| Colour: | Cabinet: painted RAL9006 arabesque grey - Head: black arabesque silver painted - Boom support: black arabesque silver painted - Boom: painted RAL9010 matt | Cabinet: brushed stainless steel AISI 304 - Head: black arabesque silver painted - Boom support: black arabesque silver painted - Boom: painted RAL9010 matt |
| Release system: | European Key cylinder | |
| Batteries recovery: | Available (optional) | |
| BUS synchronization Master/Slave: | Yes | |
| Operating cycles per day (opening/closing - 24 hours no stop): | 4000 cycles | |
| Maximum dimension product in mm (L x W x H): | 380 x 270 x 1237 | |
| Product weight packed (Kg): | 75,1 | 73,6 |
