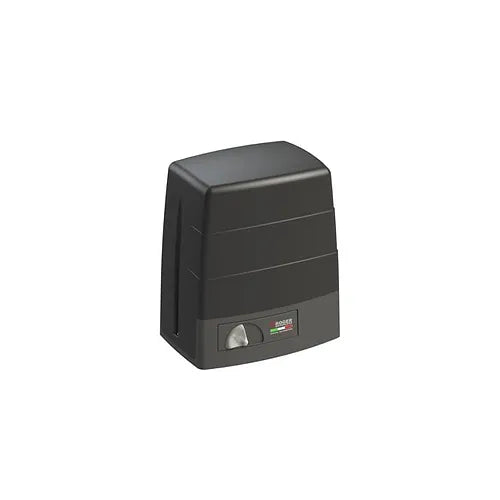

Electromechanical HIGH-SPEED BRUSHLESS motor, low voltage, super intensive use, irreversible, ideal for sliding gates up to 400 kg with built-in digital controller B70 series, magnetic limit switch.
Max Gate Weight: 400KG
Power Line Supply: 230V AC -50Hz
Motor Power Supply: 24V
Power Rating: 125W
Frequency of Use: Intensive use
Thrust: 50 - 350N
Operating Temperature: -20+55°C
Protection Level: IP43
Reductor Type: Irreversible
Manoeuvre speed: 26 m/min (0.44 m/s)
Limit Switch: Mechanical
Onboard Control Unit: B70/1DC
Encoder: Digital Native encoder + magnetic digital sensored, 4096 PPR
Type Exit Gear: Z15/mod 4
Operating cycles per day (opening/closing - 24 hours no stop): 500
Maximum dimension product in mm (L x W x H): 250 x 165 x 290
Product weight packed (Kg): 10,7
Number items per pallet: 44
