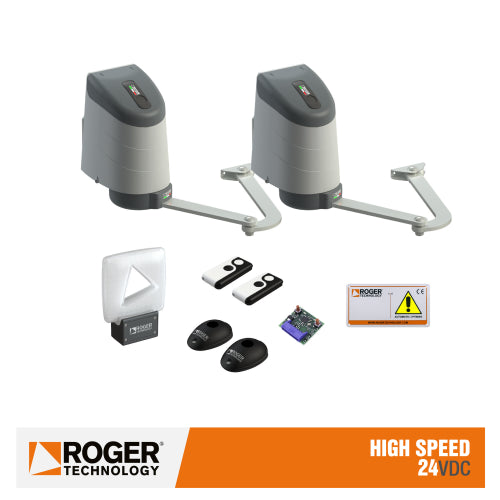

Roger Technology KIT AY/255 Brushless High speed Articulated 2 leaf kit

Description

Roger 24v High-speed articulate gate kit for double leaf swing gates

Additional Information

Low voltage motor, for intensive use with encoder.

Ideal for swing gates up to 2.5m length (see technical table below) dependent on the weight of the gate.

With mechanical stop in opening and closing positions.

Technical Specification

• Power Line Supply - 230V AC -50HZ
• Motor Power Supply - 24V
• Frequency of Use - Intensive Cycle
• Operating Cycles - 800 per day - 24 hours no stop
• Product weight - 28.7kg
• IP44 Protection rating
• Operating Temperature - -20°C to +55°C
• Reductor type - Irreversible
• Opening time - 10 to 18 seconds
• Manoeuvre speed - 4 - 1.5rpm
• Recommended Control panel - B70/2ML (AY/250/S)
• Unlocking system - Internal lever
• Limit switch - Mechanical stop in opening and closing
