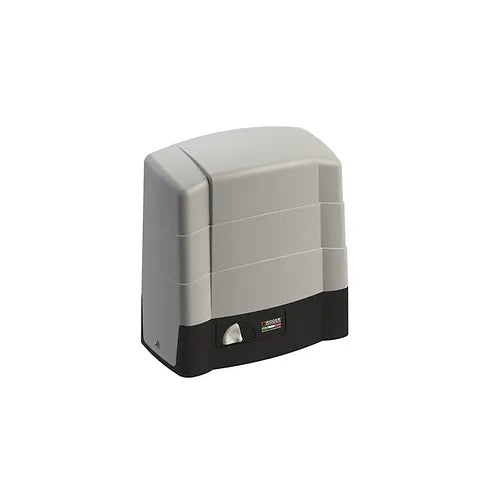

ROGER TECHNOLOGY KIT BG30/1504/HS Brushless 36v DC high speed

Description

Electromechanical HIGH SPEED BRUSHLESS motor, low voltage, super intensive use, with native encoder onboard, irreversible ideal for sliding gates up to 1500 kg with built-in digital controller B70 series, with magnetic limit switch.

Additional Information

Max Gate Weight: 1500KG

Power Line Supply: 230V AC -50Hz

Motor Power Supply: 36V

Power Rating: 650W

Frequency of Use: Intensive use

Thrust: 50 - 1000N

Operating Temperature: -20+55°C

Protection Level: IP43

Reductor Type: Irreversible

Manoeuvre speed: 25 m/min (0.42 m/s)

Limit Switch: Magnetic

Onboard Control Unit: B70/1DCHP

Encoder: Digital Native encoder + magnetic digital sensored, 4096 PPR

Batteries Recovery: Optional 2 external batter 12V 4, 5AH

Type Exit Gear: Z20/mod 4

Operating cycles per day (opening/closing - 24 hours no stop): 800

Maximum dimension product in mm (L x W x H): 346 x 180 x 362

Product weight packed (Kg): 20,1

Number items per pallet: 40
