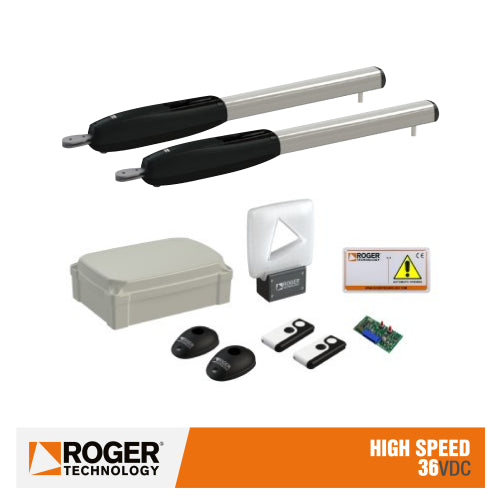

Roger Technology KIT-SMARTY7 Brushless Above ground swing gate 2 leaf kit

Description

Roger Brushless 36V DC Irreversible gate kit for double leaf swing gates.

Additional Information

Low voltage motor, for intensive use with encoder.

Ideal for swing gates up to 7m length (see technical table below) dependent on the weight of the gate.

With mechanical stop in opening and closing positions.

Technical Specification

• Power Line Supply - 230V AC -50HZ
• Motor Power Supply - 36V
• Frequency of Use - Intensive Cycle
• Operating Cycles - 1000 per day - 24 hours no stop
• Product weight - 40.5kg
• IP44 Protection rating
• Operating Temperature - -20°C to +55°C
• Reductor type - Irreversible
• Opening time - 35 to 50 seconds
• Manoeuvre speed - 1.6cm per second
• Recommended Control panel - 230V Edge1 Box
• Stroke - 520mm
