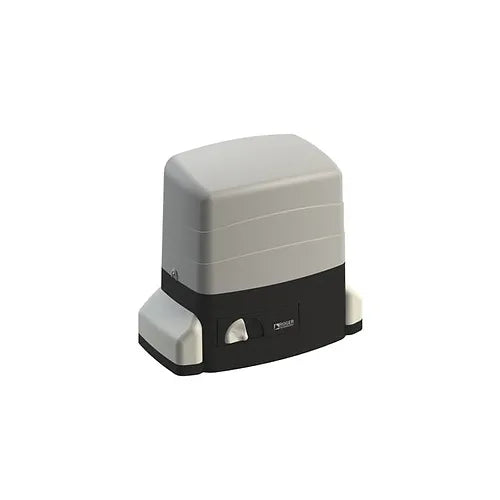

ROGER TECHNOLOGY R30/1204 Sliding Gate Motor with Panel

Description

Roger Technology R30/1204 Sliding Gate Motor with Panel

Additional Information

Max Gate Weight: 1200KG

Power Line Supply: 230V AC -50Hz

Motor Power Supply: 230V AC

Power Rating: 420W

Frequency of Use: 50%

Thrust: 800N

Operating Temperature: -20+55°C

Protection Level: IP43

Reductor Type: Irreversible

Manoeuvre speed: 9.5 m/min (0.16 m/s)

Motor Thermal Protection: 150°C

Incorporated Condenser: 18 µF

Limit Switch: Magnetic

Onboard Control Unit: H70/104AC

Encoder: Optical

Type Exit Gear: Z17/mod 4

Maximum dimension product in mm (L x W x H): 325 x 162 x 295

Product weight packed (Kg): 16,7

Number items per pallet: 44
