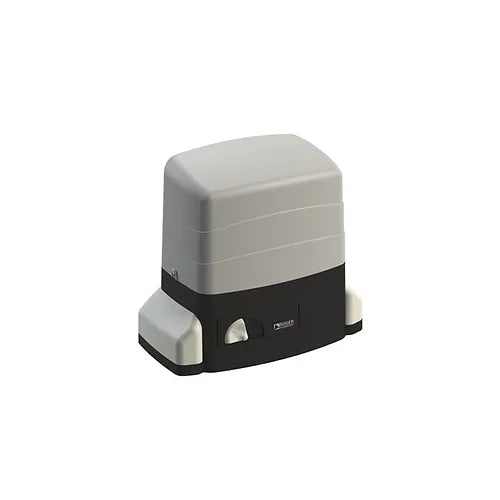

Electromechanical motor 230V AC irreversible ideal for sliding gates up to 800 kg with built-in control unit H70, an optical encoder, and mechanical limit switch.
Additional Information
Max Gate Weight: 800KG
Power Line Supply:230V AC -50Hz
Motor Power Supply: 230V AC
Power Rating: 350W
Frequency of Use: 50%
Thrust:500N
Operating Temperature:-20+55°C
Protection Level:IP43
Reductor Type:Irreversible
Manoeuvre speed: 9.5 m/min (0.16 m/s)
Limit Switch:Mechanical
Motor Thermal Protection: 150°C
Incorporated Condenser: 15 µF
Onboard Control Unit: H70/104AC
Encoder: Optical
Type Exit Gear:Z17/mod 4
Maximum dimension product in mm (L x W x H):325 x 162 x 295
