Manufacturer: Roger Technology

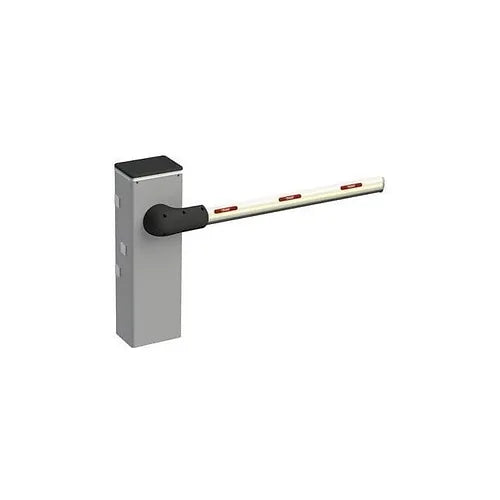

ROGER TECHNOLOGY SET BI/004/IS/HP - Bionik Brushless Barrier Kit 36V DC
ROGER TECHNOLOGY SET BI/004/IS/HP - Bionik Brushless Barrier Kit 36V DC
SKU:BI/004/IS/HP
Regular price
£2,966.63
Regular price
Sale price
£2,966.63
Unit price
/
per
Tax included.
Couldn't load pickup availability
Kit Contains
-
BI/004HP/IS Barrier unit
-
SP/72/01 Spring
-
BA/90/04 (4 metre boom)
-
ALED/8C LIGHTS (Comes with extended kit)
-
BAFS/02 (Comes with extended kit)
Product Information
| BI/004HP/IS | |
| Barriers: | Up to 4 mt long |
| Power line supply: | 230V AC - 50 Hz |
| Motor power supply: | 36V DC |
| Electrical absorption: | max. 15A |
| Power rating: | 220W |
| Frequency of use: | Super intensive use |
| Torque: | 10 - 200 N m |
| Operating temperature: | - 20 + 55 C° |
| Protection level: | IP54 |
| Reductor Type: | Irreversible |
| Opening time at 90°: | 3÷6 sec |
| Onboard control unit: | CTRL Digital Controller 36V DC |
| Encoder: | Digital native encoder + magnetic digital SENSORED, 4096 PPR |
| Accessories power supply: | 24V DC |
| Colour: | Cabinet: brushed stainless steel AISI 304 - Head: black arabesque silver painted - Boom support: black arabesque silver painted - Boom: painted RAL9010 matt |
| Release system: | European Key cylinder |
| Batteries recovery: | Available (optional) |
| BUS synchronization Master/Slave: | Yes |
| Operating cycles per day (opening/closing - 24 hours no stop): | 5000 cycles |
