Manufacturer: Roger Technology

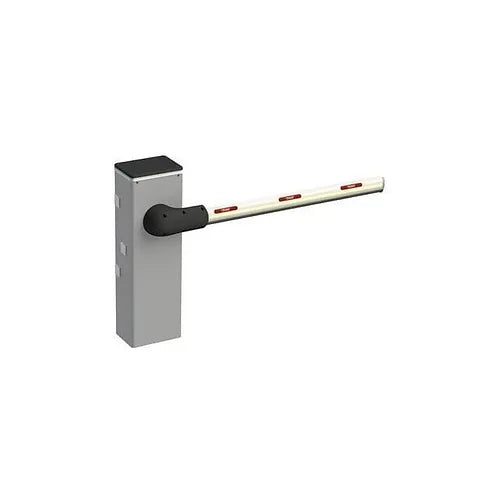

ROGER TECHNOLOGY SET BI/004HP - Bionik Brushless Barrier Kit 36V DC - 4 meters

ROGER TECHNOLOGY SET BI/004HP - Bionik Brushless Barrier Kit 36V DC - 4 meters

SKU:SET BI/004HP*

Regular price £2,178.58
Regular price Sale price £2,178.58
Sale Sold out
Tax included.
Description

SET BI/004HP - Bionik Brushless Barrier Kit 36V DC - 4 meters

36V DC BIONIK BRUSHLESS barrier for a 4 metre boom, with control unit and on-board native encoder, complete with a fastening base with tie rods and screws and boom fastening flanges. Heavier edition unit. Additional accessories are listed bellow under "you may also like".

Kit Contains
  • BI/004HP Barrier unit

  • SP/72/01 Spring

  • BA/90/04 (4 metre boom)

  • ALED/8C LIGHTS (Comes with extended kit)

  • BAFS/02 (Comes with extended kit)

Product Information
  BI/004HP
Barriers: Up to 4 mt long
Power line supply: 230V AC - 50 Hz
Motor power supply: 36V DC
Electrical absorption: max. 15A
Power rating: 220W
Frequency of use: Super intensive use
Torque: 10 - 200 N m
Operating temperature: - 20 + 55 C°
Protection level: IP54
Reductor Type: Irreversible
Opening time at 90°: 3÷6 sec
Onboard control unit: CTRL Digital Controller 36V DC
Encoder: Digital native encoder + magnetic digital SENSORED, 4096 PPR
Accessories power supply: 24V DC
Colour:  Cabinet: painted RAL9006 arabesque grey - Head: black arabesque silver painted - Boom support: black arabesque silver painted - Boom: painted RAL9010 matt
Release system: European Key cylinder
Batteries recovery: Available (optional)
BUS synchronization Master/Slave: Yes
Operating cycles per day (opening/closing - 24 hours no stop): 5000 cycles
