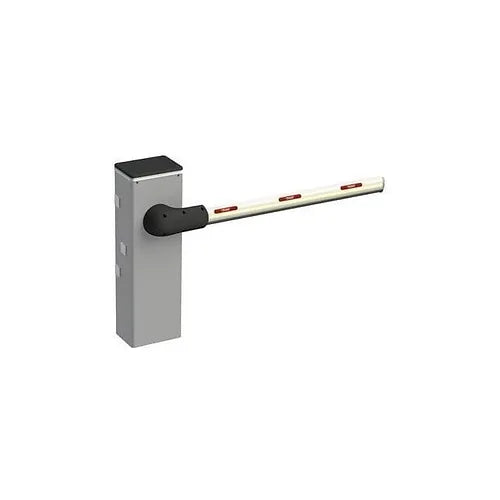

SET BI/006GODB - Bionik Brushless Barrier Kit 36V DC - 6 meters - super intensive use
36V DC BIONIK BRUSHLESS barrier for a 6 metre boom, with control unit and on-board native encoder, complete with a fastening base with tie rods and screws and boom fastening flanges. Heavier edition unit. Additional accessories are listed bellow under "you may also like".
Kit Contains
BI/006 Barrier unit

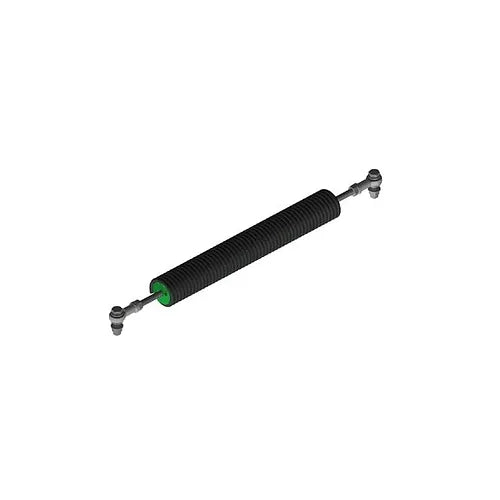

SP/83/01 Spring

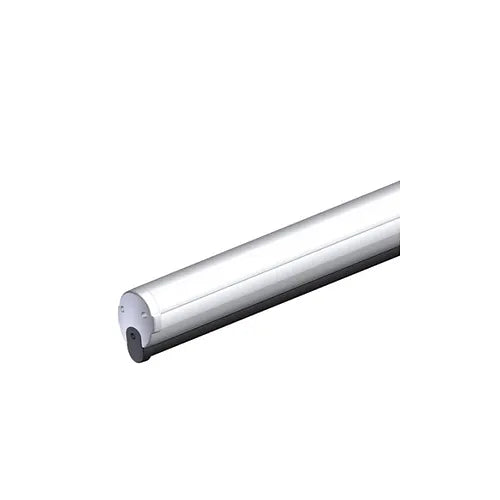

2 x BA/90/03 (3 metre boom)
JNT/BA/90 joint
ALED/12C LIGHTS (Comes with extended kit)
BAFS/02 (Comes with extended kit)
Product Information
BI/006
Barriers:
Up to 6 mt long
Power line supply:
230V AC - 50 Hz
Motor power supply:
36V DC
Electrical absorption:
max. 15A
Power rating:
220W
Frequency of use:
Super intensive use
Torque:
10 - 300 N m
Operating temperature:
- 20 + 55 C°
Protection level:
IP54
Reductor Type:
Irreversible
Opening time at 90°:
4÷8 sec
Onboard control unit:
CTRL Digital Controller 36V DC
Encoder:
Digital native encoder + magnetic digital SENSORED, 4096 PPR
Accessories power supply:
24V DC
Colour:
Cabinet: painted RAL9006 arabesque grey - Head: black arabesque silver painted - Boom support: black arabesque silver painted - Boom: painted RAL9010 matt
Release system:
European Key cylinder
Batteries recovery:
Available (optional)
BUS synchronization Master/Slave:
Yes
Operating cycles per day (opening/closing - 24 hours no stop):
