Videx DK4K-2S two station audio intercom with keypad

Videx DK4K-2S 4000 series surface mounted 2 stations audio intercom kit with the keypad.

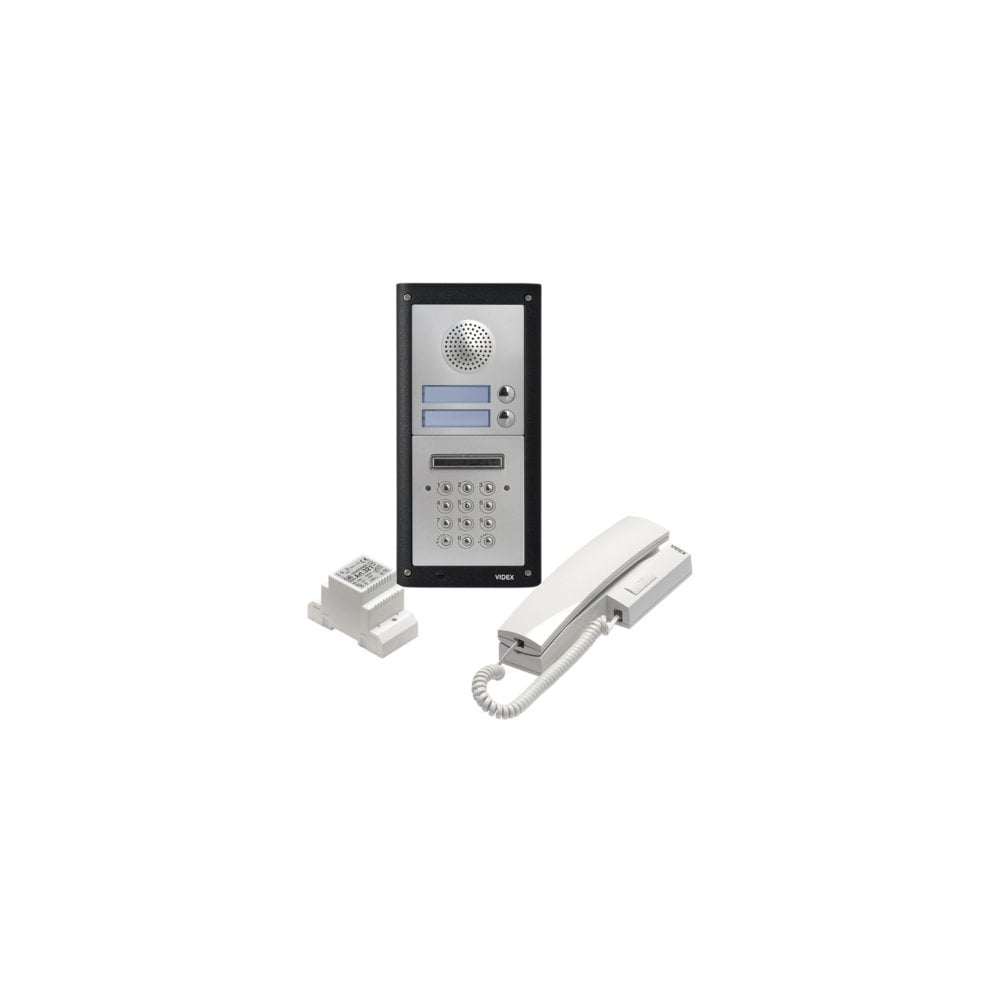

Includes surface mount door panel finished in gunmetal grey with a mirror finish stainless steel facia, 321 12vac 15VA DIN box transformer, and two 3011 wall mount handsets with electronic call tone and lock release facility.

Features 3 codes, 3-relays, keypad, and 2 push to exit button inputs.

ADDITIONAL INFORMATION

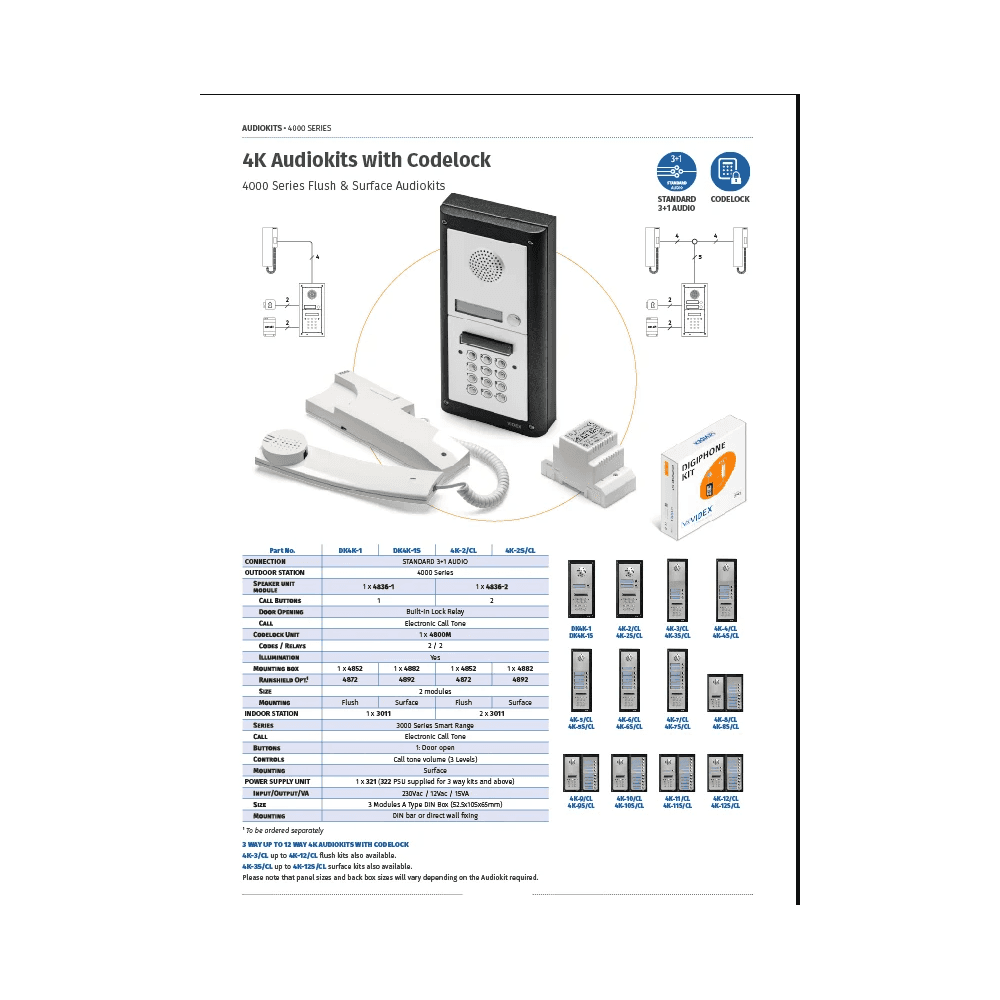

4000 SERIES AUDIO KITS WITH CODED ACCESS

Audio door entry kits with code lock based on the 4000 Series modular design incorporating two-way speech, coded access keypad, electronic call tone, and lock release facility. The door station is the available surface or flushes mounting with up to 12 call buttons each with a backlit nameplate.

An incorporated code lock module has 3 dry contact relay outputs, time 1-99 seconds, or latching.

The standard finish is a stainless steel fascia with a gunmetal grey surround. An aluminum fascia (/A) and a chrome (/C) or gold (/G) surround are also available. The telephone is a wall mount with a lock release button and a three-position call tone volume control. Up to 2 additional handsets can be connected in each apartment.

FEATURES

• Audio kit based on the 4000 Series
• 1-12 call buttons available with illuminated nameplate
• Surface or flush mount door panels
• Smart line handset with lock button and 3 position call tone volume control
• Connect up to 3 handsets per call button
• 3 code, 3 relay code lock module
