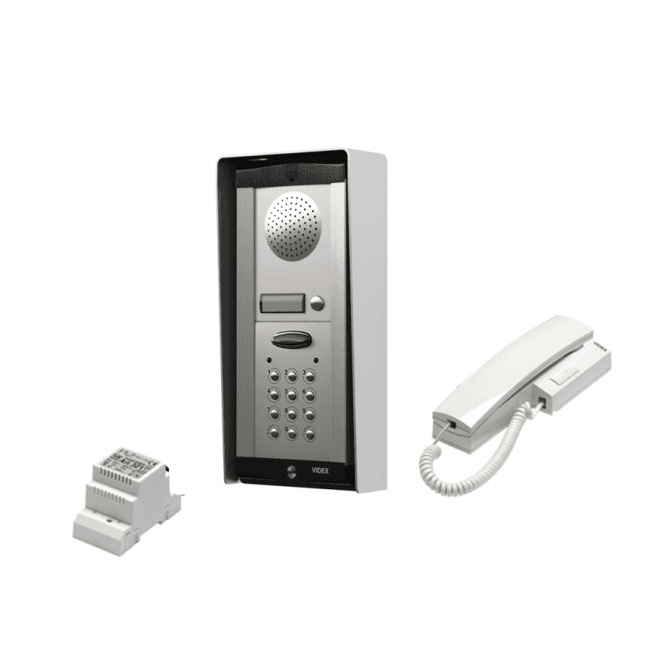

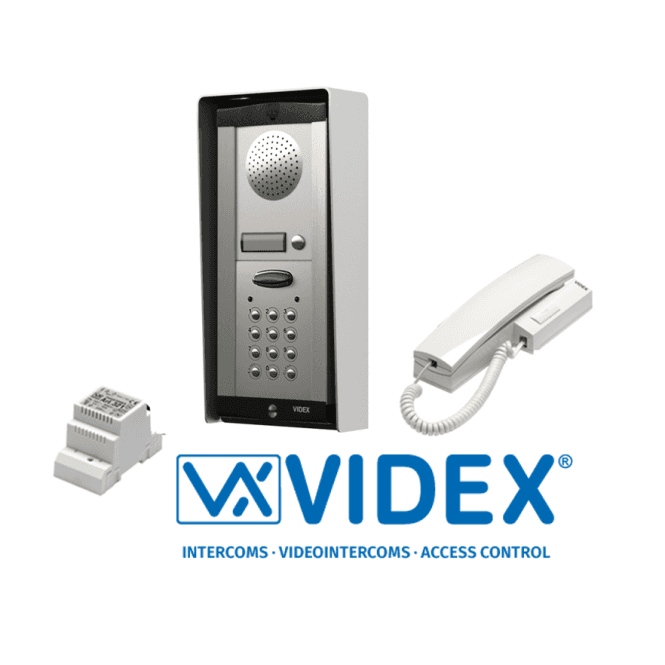

VIDEX DK8K-1S 1 way intercom with keypad

Videx 8000 Series keypad audio kits

8000 Series audio entry kit with 2 code, 2 relays coded access keypad, and 1 call button with backlit nameplate. Features include electronic call tone and timed door release (1-99 seconds or latching). The kit comprises an entry panel with either surface or flush frame available in aluminum or black (/BL), a telephone, and AC PSU. The telephone includes three-position volume control and is wall mountable. Up to 2 additional handsets can be connected in the same apartment. The programming of access codes is carried out using the code locks keypad, codes can be 4-8 digits.

PRODUCT INFORMATION:

• Number of entrances - 1
• No. Of cores to telephone - 4
• Recommended cable type - CW1308
• Maximum No. Of telephones per call button - 3
• Lock output - Dry contact (C NO NC)
• Lock output time - 1-99 Seconds or latching
• Telephone model - 3011 (call tone)
• PSU model - 321 (13Vac)
• Amplifier module - 8836M
• Codelock module - 8800
• Number of codes - 2
• Code length - 4-8
